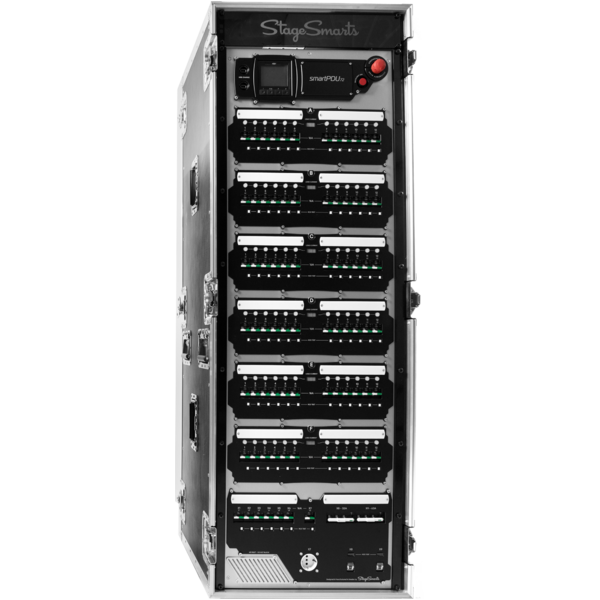

SSMSPDA72
ORDER CODE: SSMSPDA72Power distribution is at the heart of any modern event, providing power to show-critical and highly valuable equipment. The SmartPDU series sets a new standard in functionality, flexibility, reliability and safety. It is suitable for all applications; from the smallest venue to the largest tour. Engineered to meet the tough requirements of the events market, the SmartPDU helps you to keep track of the situation at any moment, protecting your connected equipment and crew and, when needed, assisting you in diagnosing problems.
Operational features
True load monitoring – quick and easy overview of output loading. Catch potential problems before the breakers trip, find channels with spare capacity and more.
Remote supervision – the networked system enables you to quickly view the status of all smartPDU’s in your system from any location on any device with a browser.
Backlit marking strips – keeps your channel information clearly visible without external lighting.
Superior circuit breakers – all breakers hold their rated current regardless of temperature. Immediate reset possible.
Quick and easy to reconfigure – all main output connectors can be changed a minute, from Socapex to Harting, to Powercon.
Safety features
All outputs are fitted with individual RCDs (“earth leakage protection”) to maximise electrical safety while also minimising the impact of an electrical fault.
Emergency stop for immediate shutdown.
Loss of neutral protection prevents costly damage to connected loads caused by over-voltages.
All breakers perform full electrical isolation in their “off” position.
Sealed, industrial grade circuit breakers (IEC 60947-1) to ensure reliable operation in dusty or humid conditions.
Main features:
- Input/Through: powerlock 500A, 5-wire (TN-S) 230/400V
- Main meter: with LCD display and 4 buttons able to indicate the different input voltages, currents (including neutral current), the main frequency, the power factor, etc.
- Main breaker: NM8S-400, 4-pole MCCB type, 400 A-50 kA
- Protection: immediate disconnect in case of lost neutral (over voltage protection)
- Master metering: all voltages, currents (incl neutral), power factor and frequency
- No. of main channels: 72
- Connection, protection: Socapex or Harting multipin - RCBO 2-pole, 16A - 30mA available in powerCon variant and powerCon TRUE
- Aux channels 1 phase: 7
- Connection, protection: CEE 3-pole - RCBO 2-pole, 16A - 30mA
- Aux channels 3 phase: 2
- Connection, protection: CEE 5-pole - MCB 4-pole, 16/32/63A / RCD 30mA
- Front modules equipped with test buttons and seven-segment 3-character display, to display the load current for each channel of the module. Function available by pressing the illuminated buttons located above the switches
- emergency stop
- Protective earth bonding
- 2 x USB charging sockets
- 2 x 3-pin locking XLR sockets: XLR connections on board for 12V service lamp, dimmable and non-dimmable
- Frontal illumination of the dimmable modules by means of a special dimmer master
- Cooling: forced air cooling
- Monitoring software interface available accessible via browser
- Flight case included
- Maximum temperature: 40° C
- 2 x Schuko sockets, one on the front and one on the back
- 1 x powerConTRUE socket and 1 x powerCon socket for connecting service equipment
- CEE 63 5-pole optional
- 2 x 3-phase auxiliary outputs, two 32 A single phase (or one 32 A if required 63 A on board)
- Dimensions: 19", 30U x 553 mm
- Weight (including case): 158 kg
- Weight (without case): 107 kg
- Certifications, standards: EN 61439-1, EN 62368-1:2014, EN 61000-6-1:2007, EN 55015:2006+A2:2009, BS7671, BS7909
