ARCBAR36
Share me

IP66

Immagine Principale
  • ARCBAR36
  • ARCBAR36
  • ARCBAR36
  • ARCBAR36
  • ARCBAR36
  • ARCBAR36
  • ARCBAR36
  • ARCBAR36
    Code Color synthesis Avail.
    ARCBAR36CW Cool White
    ARCBAR36WW Warm White

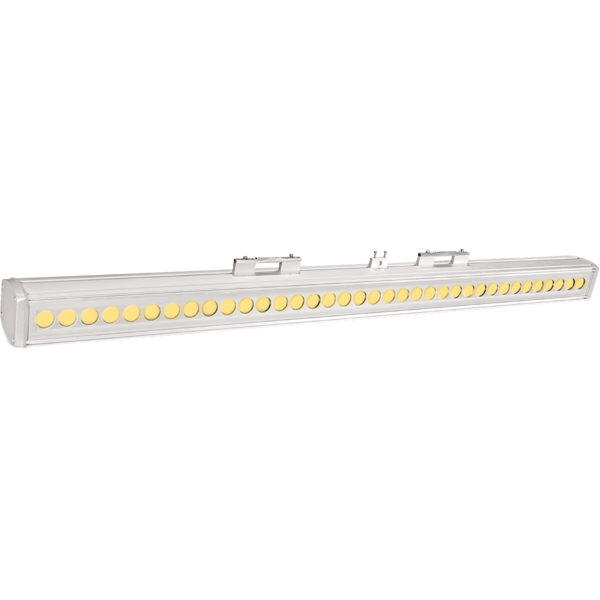

    ArcBAR36 is a linear wall washer employing 36W high-efficiency LED. The internal IP 66 protection rate allows this projector to be suitable for outdoor performance as architectural integration, a lighting of building facades, a creation of impressive colour sessions.

    Features:
    36W high-efficiency LED
    IP rating: 66

    LIGHT SOURCE
    • Source:
      36
      W
      LED
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      30
      °
    • Additional optics:
      15°, 25x6°, 60x20° optional
    • Other:
      Frost filter applied to the glass surface to improve saturation and colour mixing even in short-range projections
    COLOUR SYSTEM
    • White presets:
      3200K ~ 10000
      K
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      silver
    CONTROL
    • Protocols:
      DMX512
    ELECTRONICS
    • Operating temperature:
      -40° ~ +45°
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      48
      W
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Sospension and fixing:
      hanging bracket suitable for safe hanging and positioning
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      980x89x102
      mm
    • Weight:
      4.4
      kg
    Product Code
    Accessory Code
    Description
    ARCBAR36 (optional)
    ARCSUN18 (optional)
    ARCSUN18RGB (optional)
    ARCLINEA36TRI (optional)
    ARCGROUND9TRI (optional)
    ARCSPOT18WW (optional)
    ARCSPOT18RGB (optional)
    ARCGROUND9RGB (optional)
    ARCFLOOD40RGB (optional)
    ARCFLOOD40 (optional)
    ARCBAR36RGB (optional)
    External user interface for architectural LEDs with built-in power supply

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    CAD 2DDownload
    DRAWINGDownload

    Fixture Libraries / DMX Charts

    Photometrics

    archwork_arcbar36_rgb_15°.iesDownload
    archwork_arcbar36_rgb_20x60°.iesDownload
    archwork_arcbar36_rgb_25x6°.iesDownload
    archwork_arcbar36_rgb_30°.iesDownload
    archwork_arcbar36_rgb_60x10°.iesDownload
    archwork_arcbar36_white_15°.iesDownload
    archwork_arcbar36_white_25x6°.iesDownload
