ARCFLOOD40
Share me

IP66

Immagine Principale
  • ARCFLOOD40
  • ARCFLOOD40
  • ARCFLOOD40
  • ARCFLOOD40
  • ARCFLOOD40
  • ARCFLOOD40
  • ARCFLOOD40
  • ARCFLOOD40
    Code Color synthesis Avail.
    ARCFLOOD40CW Cool White
    ARCFLOOD40WW Warm White
    ARCFLOOD40A
    Amber

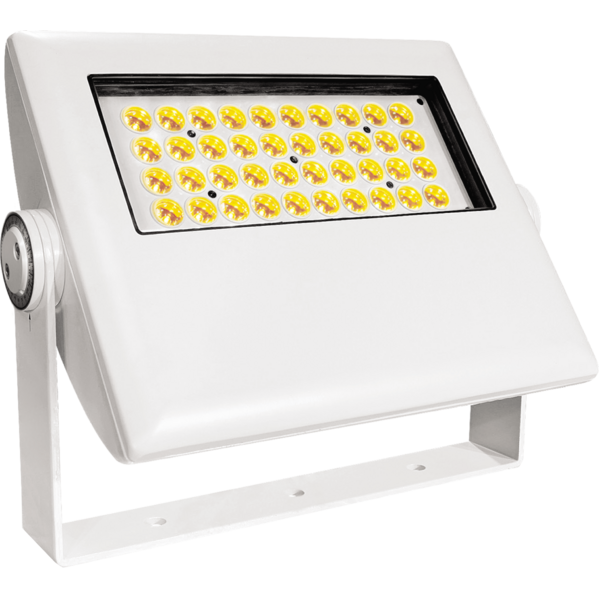

    ARCFLOOD40 is a LED luminaire conceived for architectural lighting projects of building facades and accent lighting, thanks to its high luminous output and versatility allowed by the design of the external structure. The light-source employs 40 high power 3W CREE LED, granting astonishing performance even for long-throw projection, representing a green replacement to the traditional discharge lamp outdoor projectors. ARCFLOOD40 has been designed with the innovative screw-less design for the frontal panel, which allows an IP66 protection rate for outdoor lighting projects. The wide range of accessory optics allows passing from a 6° narrow beam to 55° flood diffusion, providing the lighting designer with an indispensable tool for his projects.

    Features:
    40x3W CREE LEDs
    Beam angle 12°
    IP66 rating for outdoor installations

    LIGHT SOURCE
    • Source:
      40x3
      W
      CREE LEDs
    • Luminous flux:
      (CW) 4'300 lm - WW @full 3200
      lm
    • Lux:
      12° @full CW 17277 lux - WW 12703
      lx
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      12
      °
    • Additional optics:
      6° - 30° - 55° optional
    COLOUR SYSTEM
    • White presets:
      3200K ~ 10000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      white
    CONTROL
    • Protocols:
      DMX512
    • Display:
      user interface through ARCMAT external coder
    ELECTRONICS
    • Operating temperature:
      -40° ~ +45°
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      115
      W
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Sospension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      370x350x89
      mm
    • Weight:
      8.5
      kg
    ITEMS REF.
    Accessory Code
    Description
    ARCFLOOD40 (optional)
    ARCSUN18 (optional)
    ARCSUN18RGB (optional)
    ARCLINEA36TRI (optional)
    ARCGROUND9TRI (optional)
    ARCSPOT18WW (optional)
    ARCSPOT18RGB (optional)
    ARCGROUND9RGB (optional)
    ARCBAR36 (optional)
    ARCFLOOD40RGB (optional)
    ARCBAR36RGB (optional)
    External user interface for architectural LEDs with built-in power supply

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Fixture Libraries / DMX Charts

    Photometrics

    archwork_arcflood40a_amber_12°.iesDownload
    archwork_arcflood40a_amber_25x6°.iesDownload
    archwork_arcflood40a_amber_30°.iesDownload
    archwork_arcflood40a_amber_55°.iesDownload
    archwork_arcflood40a_amber_5°.iesDownload
    archwork_arcfloodcw_cool white_12°.iesDownload
    archwork_arcfloodcw_cool white_25x6°.iesDownload
    archwork_arcfloodcw_cool white_30°.iesDownload
    archwork_arcfloodcw_cool white_55°.iesDownload
    archwork_arcfloodcw_cool white_5°.iesDownload
    archwork_arcfloodww_warm white_12°.iesDownload
    archwork_arcfloodww_warm white_25x6°.iesDownload
    archwork_arcfloodww_warm white_30°.iesDownload
    archwork_arcfloodww_warm white_55°.iesDownload
    archwork_arcfloodww_warm white_5°.iesDownload
