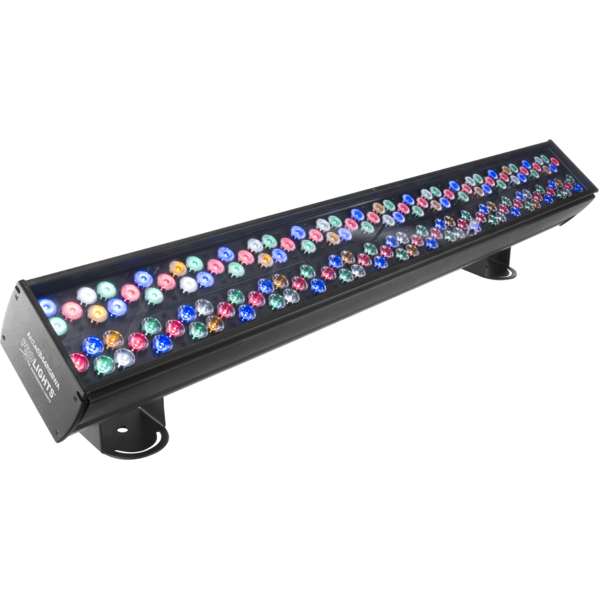

  • ARCLED3144RGBWA is a professional linear colour-changer housing 144 high-power LEDs with RGBWA colour mixing. This projector performs a limitless colour range, combining the wide chromatic scale obtained with RGB mixing with saturation and temperature adjustment granted by control of amber and white LEDs.
    The new concept dual-optic design with 15° and 30° lenses makes this linear projector a multipurpose fixture, granting an high luminous capacity for long-throw projection by keeping a smooth and uniform chromatic reproduction in close proximity to the fixture.
    The advanced control system of this fixture offers independent control of each of the 3 sectors composing the light bar, for a professional and flexible control.
    ARCLED3144RGBWA is optimized to produce theatrical-quality whites (3200K-10000K range) and tints that render pigments and skin tones in their natural appearance.

    Light source and optics
    • 144 x 1W CREE high-efficiency RGBWA LEDs (36 red, 36 green, 36 blue, 18 white, 18 amber)
    • Lumen: 5160
    • Lux: 1500@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGBWA colour mixing (>16 million colours) for a limitless colour range with full control over saturation and temperature allowed by amber and white LEDs
    • White temperature presets: 3200K~10000K
    • Installed optics: 15° and 30° dual-optic design
    • Upper section optics: 15°
    • Lower section optics: 30°
    • LEDs average life span: >50'000 h

    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6, 7, 9, 12, 15 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    5 channels: RGBWA
    6 channels: RGBWA, dimmer
    7 channels: RGBWA, dimmer, strobe
    9 channels: RGB (segment control)
    13 channels: RGBWA, dimmer, strobe, macro, auto programs, programs speed, ID address, segment selection
    15 channels: RGBWA (independent segment control)
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • Master/Slave mode for stand-alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (400Hz)
    • Cooling: forced ventilation with adjustment of fan speed from LCD user interface

    Structure and Power supply
    • Extruded aluminium case in black colour
    • Internal Protection: IP33
    • Input/Output power connections: Neutrik NAC3MPA, NAC3MPB
    • Double bracket suitable as a floor stand for accurate positioning, 0-180° adjustment
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 6 fixtures at 230V
    • Max power consumption: 170W
    • Weight: 8,2 kg
    • Dimensions (WxHxD): 997x133x212 mm
    Product Code
    Accessory Code
    ARCLED3144RGBWA (optional)
    *Flight-case for 8pcs of Arcled3172RGBWA
    ARCLED3144RGBWA (include)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    Z300BEAM (include)
    ARCLED7513VWZ (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    ARCLED8107Q (include)
    Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
