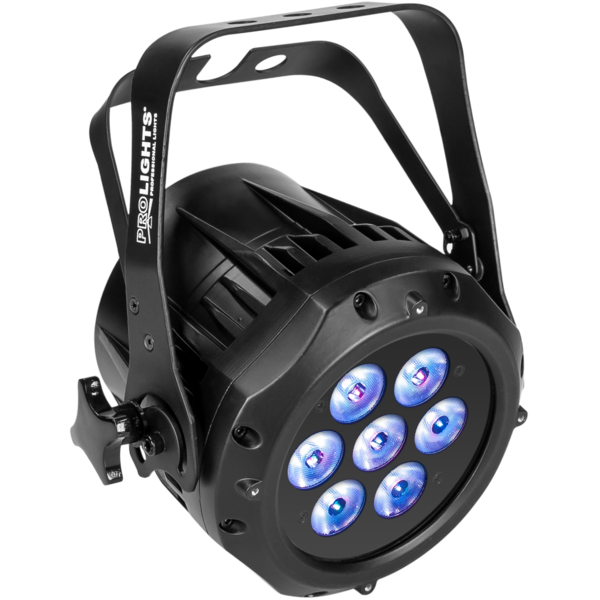

ARCLED7307HD
Share me

Immagine Principale
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
  • ARCLED7307HD
    Code Connections IP rate Avail.
    ARCLED7307HDIP IPCON IP67
    ARCLED7307HDTZ
    Neutrik IP54
    ARCLED7307HD has been conceived to be the “compact” version of its popular big brother ARCLED7314, which has become a real standard in the range of LED spotlight.
    ARCLED7307 is equipped with 7x3W CREE RGB/FullColor LEDs combined with same optic design of 7314 version, representing a complementary fixture of its bigger version and introducing an high-quality tool even in range of small lighters.
    Its super-compact sizes and the construction made by die-cast aluminium housing with tempered glass (IP66) makes ARCLED7307HD an essential product for the Rental stock, and useful for application in concerts, architectural lightings, accent lightings and corporate events.

    Light source and optics
    • 7 x 3W high-efficiency CREE RGB/FC LEDs
    • Lumen: 561
    • Lux @ 2 m: 1212
    • Peak intensity: 4837cd
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGB FullColor mixing (>16 million colours) for a limitless colour range
    • White temperature presets: 3200K~10000K
    • Installed optics: 16°
    • Beam angle: 17°
    • Field angle: 32°
    • LEDs average life span: >50'000h

    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 10, 13 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    5 channels: RGB, dimmer, strobe
    9 channels: RGB, dimmer, macro, strobe, auto programs, programs speed, dimmer curve, ID address
    13 channels: RGB, RGBfine, dimmer, dimmer fine, macro, strobe, auto programs, programs speed, dimmer curve, ID address
    • 16bit dimming and colour calibration
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming curves available
    • Master/Slave mode for stand-alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply
    • Sturdy die-cast aluminum body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP67 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperature: -40/+45 °C
    • Power output to link more units in a chain: up to 48 fixtures at 230V
    • Max power consumption: 27W
    • Weight: 3,2 kg
    • Dimensions (WxHxD): 220x175x228 mm
    Product Code
    Accessory Code
    Description
    ARCLED7307HD (include)
    ARCLED8107HD (optional)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    Z300BEAM (include)
    ARCLED7513VWZ (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    ARCLED8107Q (include)
    C60C60
    FINESTOCK
    Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
    ARCLED7307HD (optional)
    SOLAR (optional)
    ARCLED3109PIX (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    ARCLED7307HD (optional)
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    ARCLED7337VW (optional)
    ARCLED8107Q (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
