    Code Connections IP rate Avail.
    ARCLED7337ZOOMIP
    IPCON IP67
    ARCLED7337ZOOMTZ
    Neutrik IP54

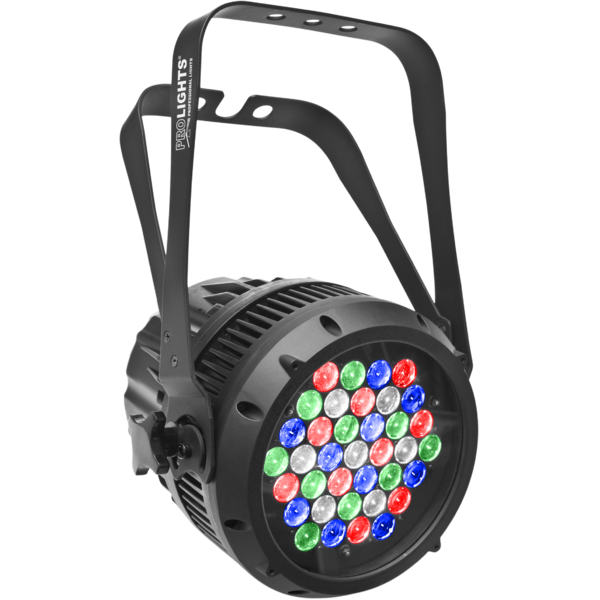

    ARCLED7337ZOOM is a unique LED luminaire in LED lighting range for its performance and technological contents. It has been conceived to innovate the concept of LED source applied to lighting sector, featuring the innovative zoom technology for a linear passage from 8° spot to 40° wide beam. Optical section is composed by a brand new elliptical lens placed on a motorized scrolling panel. The great flexibility of control, combined to its powerful output (37x3W RGBW LEDs), make ARCLED7337ZOOM an outstanding tool for professional Light-Designers to fulfill lighting projects in large outdoor events (IP67 rated), roadshows, theatres, architectural installations.

    Light source and optics
    • 37 x 3W high-efficiency CREE RGBW LEDs (10 red, 10 green, 10 blue, 7 white)
    • Lumens: 2280
    • Lux@2m: 5000@2m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGBW colour mixing (>16 million colours) for a limitless colour range
    • White temperature presets: 3200K~10000K
    • Beam angle: 8°-40° Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000h

    Electronics and features

    • Several DMX configurations selectable (3, 4, 5, 6, 12 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    12 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed, dimmer curve, zoom, Zoom reset
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural convection cooling of the peculiar chassis and to absence of fans

    Structure and Power supply

    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP67 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperatures: -40/45°
    • Power output to link more units in a chain: up to 24 fixtures at 230V
    • Max power consumption: 100W
    • Weight: 6,5 kg
    • Dimensions (WxHxD): 248x203x311 mm
    Product Code
    Accessory Code
    Description
    ARCLED7337ZOOM (optional)
    ARCLED7337VW (optional)
    ARC7337BDARC7337BD
    DISCONTINUED
    *Adjustable barndoor for ARCLED7337ZOOM
    ARCLED7337ZOOM (optional)
    ARCLED7337VW (optional)
    ARC7337RBDARC7337RBD
    FINESTOCK
    Round barndoor for spot-like effect, for Arcled7337Zoom
    ARCLED7337ZOOM (optional)
    ARCLED7507Q2Z (optional)
    SOLAR (optional)
    ARCLED3109PIX (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    ARCLED7513Q2Z (optional)
    ARCLED7307HD (optional)
    LUMIPIX12QIP (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    ARCLED7337ZOOM (optional)
    ARCLED7507Q2Z (optional)
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7513Q2Z (optional)
    ARCLED7307HD (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    ARCLED7337VW (optional)
    ARCLED8107Q (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    ARCLED7337ZOOM (optional)
    ARCLED7337VW (optional)
    FCL7337FCL7337
    FINESTOCK
    Flight case for 8 pcs of ARCLED7337ZOOM, dimensions: 960x525x515 mm
    ARCLED7337ZOOM (optional)
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    ARCEXAC4L005ARCEXAC4L005
    DISCONTINUED
    *Power ext. cable, comp. with indoor (TZ) ARCLED proj., NAC3FCA->NAC3FCB, L.0,5m
    ARCLED7337ZOOM (optional)
    ARCLED7337VW (optional)
    ARC7337TPGARC7337TPG
    DISCONTINUED
    *Filterframe for Arcled7337Zoom
    ARCLED7337ZOOM (optional)
    ARCLED7337VW (optional)
    ARC7337FILTER5ARC7337FILTER5
    DISCONTINUED
    *5° flood filter for Arcled7337Zoom
    ARCLED7337ZOOM (optional)
    ARC7337FILTER1ARC7337FILTER1
    DISCONTINUED
    *1° flood filter for Arcled7337Zoom
    ARCLED7337ZOOM (include)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    ARCLED7513Q2Z (optional)
    Z300BEAM (include)
    ARCLED7513VWZ (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    ARCLED8107Q (include)
    C60C60
    Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
