    Code Connections IP rate Avail.
    ARCLED8107QIP IPCON IP67
    ARCLED8107QTZ
    Neutrik IP54

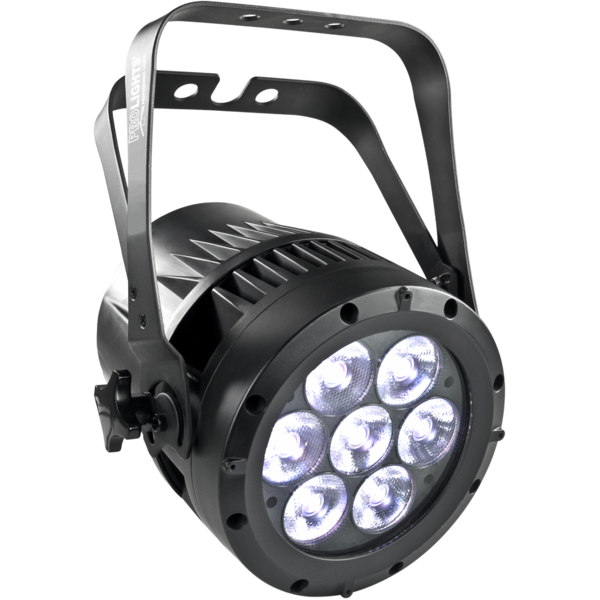

    ARCLED8107Q is an innovative LED luminaire engineered to employ the brand-new CREE RGBW FullColor 10W multi-chip LED, granting an impressive luminous output in a compact-size housing. The cutting-edge optic design (over 85% optic efficiency) offers an advanced chromatic generation and a full control over colour saturation and temperature.
    ARCLED8107Q is built in a compact and stylish aluminium waterproof case (IP66) allowing a natural convection cooling system for totally silent performance and even outdoor architectural lighting project.
    ARCLED8107Q represents an outstanding versatile tool for realization of lighting project in live events, theatre, TV studios and architectural.


    Light source and optics
    • 7 x 10W high-efficiency CREE RGBW/FC
    • Lumen: 3000
    • Lux: 1050@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: 4in1 RGBW mixing for tones, temperature and saturation control
    • White temperature presets: 3200K~10000K
    • Beam angle: 11°
    • Higher optic efficiency (>85%)
    • LEDs average life span: >50'000 h

    Electronics and features:
    • Several DMX selectable configurations (3, 4, 5, 6, 10 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    10 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “step less” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply:
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP66 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Power output to link more units in a chain: up to 15 fixtures at 230V
    • Max power consumption: 85W
    • Weight: 5,7 kg
    • Dimensions (WxHxD): 240x191x290 mm
    Product Code
    Accessory Code
    Description
    ARCLED8107Q (optional)
    ARCLED8107HD (optional)
    FCL8107FCL8107
    FINESTOCK
    Flight case for 8 pcs of ARCLED8107Q, dimensions: 780x540x480 mm
    ARCLED8107Q (optional)
    ARCLED8107HD (optional)
    ARC8107TPGARC8107TPG
    DISCONTINUED
    *Filterframe for Arcled8107Q
    ARCLED8107Q (optional)
    ARCLED8107HD (optional)
    ARC8107BDARC8107BD
    DISCONTINUED
    *Adjustable barndoor for Arcled8107Q
    ARCLED8107Q (optional)
    ARC8107RBDARC8107RBD
    DISCONTINUED
    *Round barndoor for spot-like effect, for Arcled8107Q
    ARCLED8107Q (optional)
    ARCLED7507Q2Z (optional)
    SOLAR (optional)
    ARCLED3109PIX (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    ARCLED7307HD (optional)
    LUMIPIX12QIP (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED7337VW (optional)
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    ARCLED8107Q (optional)
    ARCLED7507Q2Z (optional)
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7307HD (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    ARCLED7337VW (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    ARCEXAC4L005ARCEXAC4L005
    DISCONTINUED
    *Power ext. cable, comp. with indoor (TZ) ARCLED proj., NAC3FCA->NAC3FCB, L.0,5m
    ARCLED8107Q (optional)
    ARCLED8107HD (optional)
    ARC8107FILTER1ARC8107FILTER1
    DISCONTINUED
    *1° flood filter for Arcled8107Q
    ARCLED8107Q (optional)
    ARCLED8107HD (optional)
    ARC8107FILTER5ARC8107FILTER5
    DISCONTINUED
    *5° flood filter for Arcled8107Q
    ARCLED8107Q (include)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    Z300BEAM (include)
    ARCLED7513VWZ (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    C60C60
    Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
