ARCMASTER436
Share me

Immagine Principale
  • ARCMASTER436
  • ARCMASTER436
  • ARCMASTER436

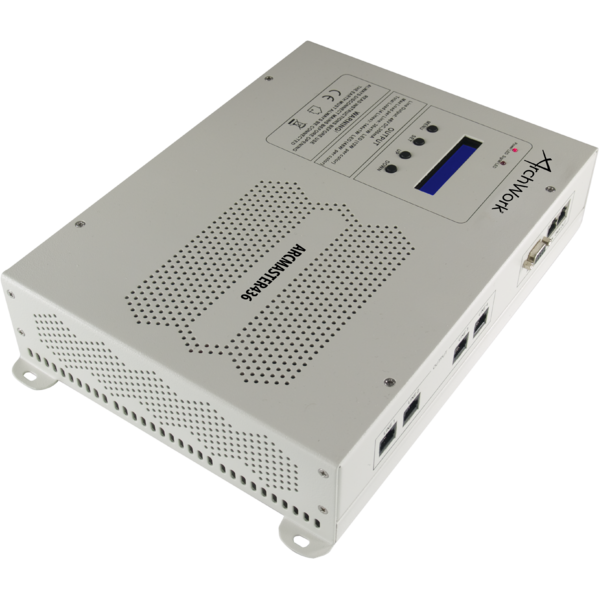

  • ARCMASTER436 is a power supply and control board for management of LED lighting system
    Power supply

    • Output: 4 independent zones
    • Max load each zone: 36x1W (12W per colour)
    • Max total load: 144x1W (48W per colour)
    • Connections: 4 x RJ45 connectors
    • Power consumption: 165W
    Electronics
    • LCD display user interface for easy access to menu functions and setting
    • Auto mode: 10 built-in show selection
    • Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface
    • Static mode: Selection of static colour
    • DMX addressing: assignment of DMX channel for remote controlling through universal DMX512 protocol
    • Setting mode: Activate/Disable security systems against accidental changes, colour calibration, timer set
    • Schedule mode: Timer and hours set for reproduction of built-in shows
    • Several DMX selectable configurations (1, 3 ,4, 6, 9, 12, 15 channels) for advanced or basic controlling
    1 ch: dimmer (RGB)
    3 chs: RGB
    3 chs: HSV
    4 chs: RGB, dimmer
    6 chs: RGB, dimmer, macro, strobo
    9 chs: RGB, dimmer, macro, strobe, auto programs, programs speed, zone select
    12 chs: Line1(RGB), Line2(RGB), Line3(RGB), Line4(RGB)
    15chs: Line1(RGB), Line2(RGB), Line3(RGB), Line4(RGB), master dimmer, master macro, master strobo
    Structure and power supply:

    • Cooling: natural convection cooling
    • Working conditions: -20°C/+40°C
    • Power supply: 100-240V 50/60Hz
    • Dimensions (WxHxD): 323x225x68 mm
    • Weight: 2,8 kg
      arcMaster436
    Input voltage AC 100V-240V
    Max Power 165W
    Output Line Qty 4
    Output per Line 3x12 LEDs (350mA)
    Interface DMX
    Mains connection Locking IEC power cable
    Data connection RJ45
    Protection IP2X
    Operating temperature -40°C/+45°C
    Cooling Forced air convection
    Housing material Aluminium
    Housing color Off-White
    Dimensions 323x225x68 (mm)
    Weight 2,8Kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.
