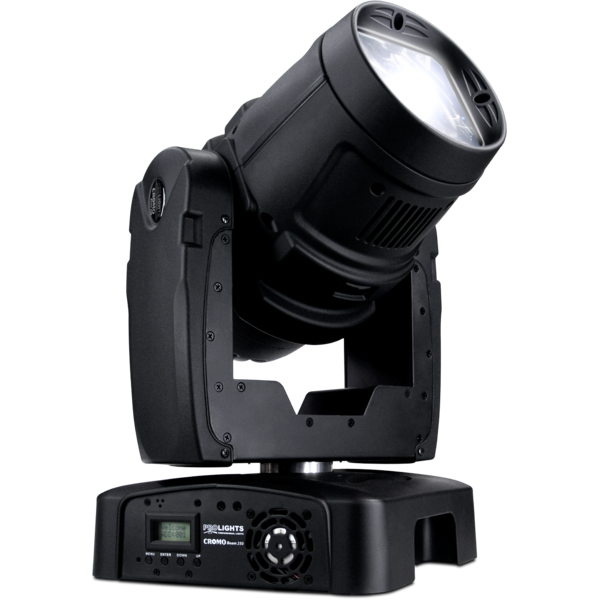

CROMOBEAM250
PROLIGHTS
end of life

CROMOBEAM250

ORDER CODE: CROMOBEAM250

Main features:

    CROMOBEAM250 is the first BEAM moving head based on LED light source, housing a high-power 60W diode. The optical unit is composed by a special smooth-surface lens, featuring a 6° highly concentrated parallel beam. Its light output can be compared to a MSR575 luminaire with Iris effect enabled. The amazing rapid movements and the absence of noise make CROMOBEAM250 the perfect device to generate effect in the air, replacing the traditional long-throw projectors and the ACL par sets in medium sized light-shows.

    Light source and optics

    • 1 x 60W high-power white Luminus LED
    • Projection angle: 6°
    • High efficiency optical system with a smooth-surface lens to generate a parallel BEAM effect
    • LED average life span: >50'000 h

    Dimmer/Shutter/Strobo

    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-20 flash per second

    Colour system

    • Colour wheel with 8 dichroic filters + open (linear-stepless selection)
    • Rainbow effect with speed adjustment
    • Easy calibration and maintenance by magnetic repositioning

    Effects

    • Rotating gobo wheel: 7 interchangeble gobos (1 of which dichroic)
    • Gobos rotation in both CW and CCW direction
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheel for replacement
    • Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel
    • Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface

    Electronics

    • User Interface: graphic LCD display to control unit DMX addressing, general settings
    • 2 DMX available configurations: 8 channels (8 bit) and 11 channels (16 bit) for advanced or basic control mode
    • Input and output signal through XLR 3p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating

    Structure and moving body

    • High resistance and flame retardant polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit:
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Suspension and fixing: any possible working positionthrough omega kit (included)

    Power supply

    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 150W

    Weight and dimensions

    • Weight: 12,6 kg
    • Dimensions (WxHxD): 330x550x290 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualCromobeam250_USER_MANUAL_ITEN.pdf11MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
