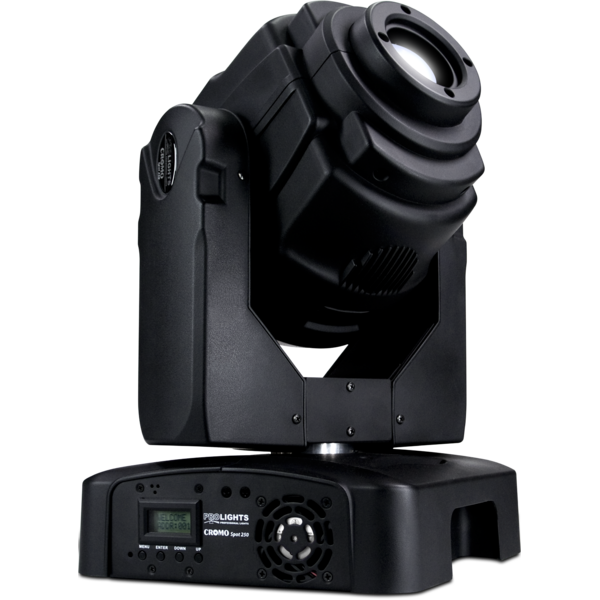

  • CROMOSPOT250 is a moving-head spot equipped with a 60W LED source, designed for professional applications. Its performance makes this projector an evolution of the conventional fixtures based on 250W discharge lamp, reducing power consumption to a 1:3 factor. CROMOSPOT250 features a wide range of effects, composed by 8 dichroic colour filters, 2 gobo wheels, one rotating (7 gobos) and one static (9 gobos), 3-facet prism for limitless effect combinations. CROMOSPOT250 offers a wide range of built-in automatic and sound-activated shows plus the possibility to create custom programs directly from the user interface, with no need of external controllers. Its compact-size structure, its rapid movements and silent operations grant this projector to be a valuable solution for lighting projects in medium-sized environments like live stages and clubs.

    Light source and optics

    • 1 x 60W high-power white Luminus LED
    • Projection angle: 15°
    • High efficiency optical system
    • High definition anti-reflection lenses with achromatic coating
    • Focus: electronic focusing, from 2 m to infinity
    •  LED average life span: >50'000 h

    Dimmer/Shutter/Strobo

    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-20 flash per second

    Colour system

    • Colour wheel with 8 dichroic filters + open (linear-stepless selection)
    • Rainbow effect with speed adjustment
    • Easy calibration and maintenance by magnetic repositioning

    Effects

    • Gobos group composed by 16 gobos over 2 overlapping wheels
    • Rotating gobo wheel: 7 interchangeable gobos (2 of which dichroic)
    • Static gobo wheel: 9 gobos
    • Gobos rotation in both CW and CCW direction
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheel for replacement through slot-n-lock panel
    • Effect wheel with 3 facet prism rotating in both directions at different speed
    • Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel
    • Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface

    Electronics

    • User Interface: graphic LCD display to control unit DMX addressing, general settings
    • 2 DMX available configurations: 11 channels (8 bit) and 14 channels (16 bit) for advance or basic control mode
    • Input and output signal through XLR 3p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating

    Structure and moving body

    • High resistance and flame retardant polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Automatic repositioning of effects in case of accidental movements
    • Suspension and fixing: any possible working position through omega kit (included)

    Power supply

    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 140 W

    Weight and dimensions

    • Weight: 13,6 kg
    • Dimensions (WxHxD): 295x485x290 mm
    Product Code
    Accessory Code
    Description
    CROMOSPOT250 (optional)
    FCL250SFCL250S
    DISCONTINUED
    *Flight-case for 2pcs of Cromospot250, dimensions: 710x750x410mm
