CROMOSPOT400
PROLIGHTS
end of life

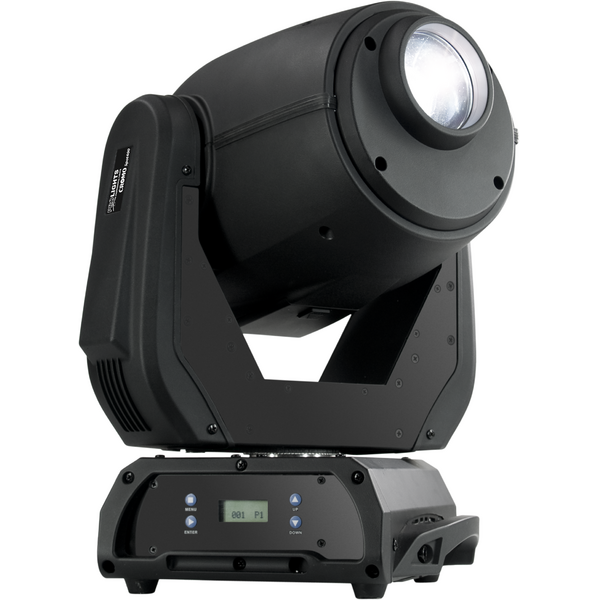

CROMOSPOT400

ORDER CODE: CROMOSPOT400

Main features:

    CROMOSPOT400 is a moving head SPOT based on a special LED optical system (patented) engineered to achieve high-performing brightness through a 7x10W CREE LED-array. Despite the very compact sizes, CROMOSPOT400 is one of the most powerful luminaires in its range, becoming a valuable replace of traditional projectors equipped with discharge 400W lamp. CROMOSPOT400 features a wide range of functions and effects, composed by 7 dichroic colour filters, 2 gobo wheels, one rotating (6 gobos) and one static (7 gobos), 3-facet prism and electronic focus for limitless effect combinations. CROMOSPOT400 represents the last goal of LED technology applied to intelligent lighting device, allowing true advantages as minimized electric consumptions, light-weight, no-need of technical maintenance, fast moves, suitable operations.
    Light source and optics

    • Patented optical and lens path for superior output
    • 7 x 10W (3A) high-power white LED
    • Lumens: 2800 lm
    • Brightness: 11000 Lux @2mt
    • Projection angle: 16°
    • Focus: motorized focusing, from 2 m to infinity
    • LED average life span: >50'000 h

    Dimmer/Shutter/Strobo

    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-20 flash per second

    Colour system

    • Colour wheel with 7 dichroic filters + open (linear-stepless selection)
    • Rainbow effect with speed adjustment
    • Easy calibration and maintenance by magnetic repositioning

    Effects

    • 1st Gobo wheel: 6 rotating and interchangeable Gobos
    • 2nd Gobo wheel: 7 metallic static Gobos
    • Gobo size: outer diameter 32,6 mm, image diameter 27 mm, thickness 1,1 mm
    • 42 possible overlapping gobos combinations
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheel for replacement through slot-n-lock panel
    • Effect wheel with 3 facet prism rotating in both directions at different speed
    • Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel
    • Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface

    Electronics
    • User Interface: LCD display to control unit DMX addressing, general settings
    • 2 DMX available configurations: 11 channels (8 bit) and 14 channels (16 bit) for advance or basic control mode
    • Input and output signal through XLR 3p/5p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating

    Structure and moving body

    • High resistance and flame retardant polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,41° Tilt Fine = 0,006°
    • Automatic repositioning of effects in case of accidental movements
    • Suspension and fixing: any possible working position through omega kit (included)

    Power supply

    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 160 W
    • Power connection: Powercon IN/OUT

    Weight and dimensions

    • Weight: 12,5 kg
    • Dimensions (WxHxD): 360x519x270 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

FCC400S
FCC400S
(facoltativo)
Flight case for 2pcs of CROMOSPOT400, dimensions: 965x760x423 mm
