DSX26
ORDER CODE: DSX26
Share me

Immagine Principale
  • DSX26
  • DSX26
  • DSX26

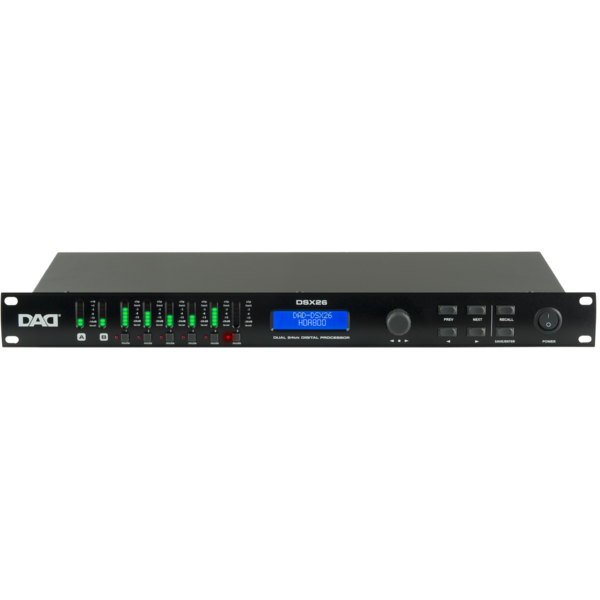

  • DAD DSX26 is a digital processor designed to control PA systems in touring applications or in permanent installations.
    • Equipped with advanced technical features allowing accurate control over any audio parameter, DSX26 has 2 Input and 6 Output channels, each with individual LED signal bar, clip and limiter LED indicators.
    • DSX26 can be setup and programmed in real-time through the front panel or the Windows-compatible software accessed via RS-232 interface.
    • Internal memory saves up to 60 presets which can then be recalled and stored from/to computer hard-drive.
    • Input and Output channels can be routed in multiple configurations, allowing stereo, mono or “distribution mixer” modes.
    • Each Input channel has independent delay adjustment.
    • All Output channels have independent control over the following algorithms:
    Delay for phase control
    HPF and LPF crossover filters (Bessel, Butterworth and Linkwitz-Riley type available, with slopes up to 48dB/oct.)
    Parametric equalizer up to 7 bands
    Digital limiter
    Level control and mute
    Phase inversion
    TECHNICAL DATA DSX26
    Product Type Digital Audio Processor
    Outputs 3 way stereo, 6 way mono
    Max Input Level +10dBu
    Frequency Response 15Hz - 20KHz ± 0,25dB
    Distortion <0.05% (1kHz @ 10dBu)
    Resolution 24-bit
    Sampling rate 44.1, 48, 88.2, 96 kHz
    A/D - D/A Converters 24-bit
    Gain OUT ±15 dB in 0.2dB steps
    Delay up to 630ms per I/O
    Crossover Filters
    Bessel, Butterworth, Linkwitz-Riley
    Crossover Filters Slope 6, 12, 18, 24, 48 dB per octave
    EQ Filters Up to 22 maximum (depending on crossover slope)
    EQ Type Bell, (Low-Shelf Hi-Shelf 6dB/12dB)
    EQ Gain ± 15 dB variable by 0.2 steps
    EQ Bandwidth 0.05 to 3.00 octaves, variable by 0.05 steps
    Frequency Modes 36 step/oct.
    Limiter Threshold ± 20dB
    Attack Time dynamic (depending on frequency rate)
    Release Time dynamic (depending on frequency rate)
    Audio Connectors 3-pin XLR
    Power supply 110-120V, 220-240V AC 50/60Hz
    Weight 3,6 Kg
    Dimensions (WxHxD) 481x44x223mm
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    DSX26Download
    DSX26Setup_V220.zipDownload

    Tech Docs

    Dsx26_USER_MANUAL.pdfDownload
