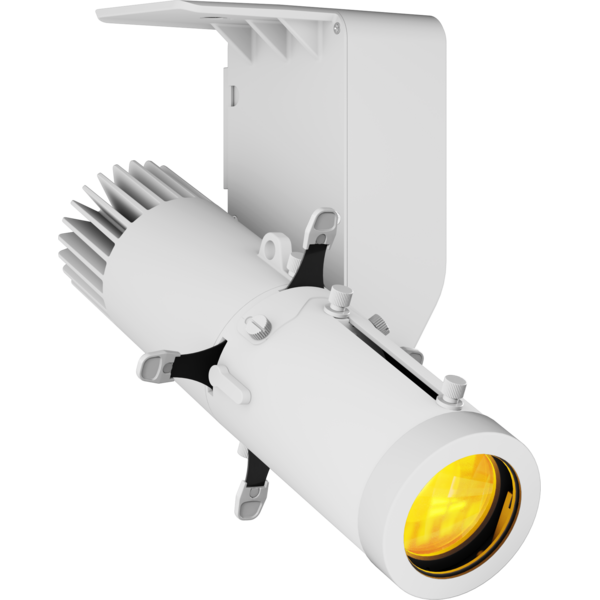

EclDisplay UNFC
| Code | Finishing | Track adapter | Optics | Avail. | |||||||||
|
ECLDISPLAYUNFCB | Black | Not Included | Not Included | |||||||||
|
ECLDISPLAYUNFCW | White | Not included | Not Included |
EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay UNFC can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 8, phase-cut dimming or local knob dimming control The EclDisplay UNFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.
Features:Universal control through RDM, DMX, DALI Type 8, phase-cut dimming and local knob dimming
40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
Multiple lens options: zoomable profile or wash optics
LIGHT SOURCE
- Source:40WRGB + Warm White LED
- Luminous flux:(profile - 20°) 366 lm - (profile - 40°) 325 lm; (wash 2550 - min) 308 lm - (wash 2550 - max) 407 lm; (wash 1530 - min) 309 lm - (wash 1530 - max) 343lm@full
- Lux:(profile - 20°) 194 lx - (profile - 40°) 42lx; (wash 2550 - min) 49 lx - (wash 2550 - max) 20 lx; (wash 1530 - min) 119 lx - (wash 1530 - max) 58lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom:(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
- Other:360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
- Other:(profile lens) shutter blades lockable
- Other:(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
- Colour mixing:RGB + Warm White
- CCT:CCT control through dedicated DMX channel
- Colour wheel:virtual colour wheel with macros
DYNAMIC EFFECTS
- Control Resolution:16-bit dimmer, colours
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
BODY
- Hardware on-board:lockable tilt with screw
- Body:aluminium die-casting
- Body colour:RAL 9004 or RAL 9010
- Other:cable not included - Cable diameter range: 6 - 10 mm
CONTROL
- Protocols:Local Knob, DMX, DALI Type8, RDM, cut phase dimming
- DMX channels:5 / 6 / 15channel
- RDM:RDM for remote monitoring and settings
- Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
- Dimmer:linear 0 ~ 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- LED Control:flicker free operation
- Selectable PWM:600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption:35W
- Power factor:> 0,94
- Inrush current:230VAC/5.7A, 110VAC/6.3A
PHYSICAL
- Operating Temperature:-10° ~ +45°
- IP rating:20
- Cooling:passive cooling and fan-free
- Suspension and fixing:track / hanging / ceiling installation
- Data connection:screw terminal blocks
- Power connection:screw terminal blocks
- Dimensions (WxHxD):148X200x150mm
- Weight:1,63kg
CERTIFICATIONS / APPROVALS
BOX CONTENT- Certifications / Approvals:CE, UKCA, RCM, cTUVus, FCC
- 1 x ECLDISPLAYUNFC
- User Manual
ITEMS REF.
Accessory Code
Description
ECLDISPLAYUNFC (optional)
ECLDISPWASHL1530BZoomable Wash Lens 15-30° for EclDisplay, black housing
ECLDISPLAYUNFC (optional)
ECLDISPWASHL1530WZoomable Wash Lens 15-30° for EclDisplay, white housing
ECLDISPLAYUNFC (optional)
ECLDISPWASHL2550BZoomable Wash Lens 25-50° for EclDisplay, black housing
ECLDISPLAYUNFC (optional)
ECLDISPWASHL2550WZoomable Wash Lens 25-50° for EclDisplay, white housing
ECLDISPLAYUNFC (optional)
ECLDISPPRZL2040B
NEW
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black hou
ECLDISPLAYUNFC (optional)
ECLDISPPRZL2040W
NEW
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white hou
ECLDISPCEILKIT
ECLDISPHSNOOTB
ECLDISPFSNOOTB
ECLDISPHSNOOTW
ECLDISPFSNOOTW
ECLDISPLOUVREB
ECLDISPLOUVREWECLDISPLAYUNFC (optional)
ECLDISPBDNFFB
NEW
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black
ECLDISPLAYUNFC (optional)
ECLDISPBDNFFW
NEW
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white
ECLDISPLAYUNFC (optional)
ECLDISPGOBOHINDB
NEW
Gobo holder for EclDisplay with manual index gear on board, black
ECLDISPLAYUNFC (optional)
ECLDISPCEILFLGB
NEW
Black flange to complete the EclDisplay ceiling adapter kit, black
ECLDISPLAYUNFC (optional)
ECLDISPCEILFLGW
NEW
White flange to complete the EclDisplay ceiling adapter kit, white
ECLDISPLAYUNFC (optional)
NAXTSC61002Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, black
ECLDISPLAYUNFC (optional)
NAXTSC61003Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, white
ECLDISPLAYUNFC (optional)
NAXTSC62002Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, black
ECLDISPLAYUNFC (optional)
NAXTSC62003Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, white
ECLDISPLAYUNFC (optional)
NAXTSC63002Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, black
ECLDISPLAYUNFC (optional)
NAXTSC63003Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, white
ECLDISPLAYUNFC (optional)
NAXTSC64002Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, black
ECLDISPLAYUNFC (optional)
NAXTSC64003Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, white
ECLDISPLAYUNFC (optional)
NAXTSC6112Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
ECLDISPLAYUNFC (optional)
NAXTSC6113Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
ECLDISPLAYUNFC (optional)
NAXTSC6122Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
ECLDISPLAYUNFC (optional)
NAXTSC6123Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
NAXTSC6142ECLDISPLAYUNFC (optional)
NAXTSC6212Global Pulse XTS Connector 3-CCT DALI straight connector, black
NAXTSC6143ECLDISPLAYUNFC (optional)
NAXTSC6213Global Pulse XTS Connector 3-CCT DALI straight connector, white
ECLDISPLAYUNFC (optional)
NAXTSC6232Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
ECLDISPLAYUNFC (optional)
NAXTSC6233Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
ECLDISPLAYUNFC (optional)
NAXTSNC6342Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
ECLDISPLAYUNFC (optional)
NAXTSNC6343Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
ECLDISPLAYUNFC (optional)
NAXTSNC6352Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
ECLDISPLAYUNFC (optional)
NAXTSNC6353Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white
ECLDISPLAYUNFC (optional)
NAXTSNC6362Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
ECLDISPLAYUNFC (optional)
NAXTSNC6363Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
ECLDISPLAYUNFC (optional)
NAXTSNC6372Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
ECLDISPLAYUNFC (optional)
NAXTSNC6373Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
NAXTSNC6382
NAXTSNC6383ECLDISPLAYUNFC (optional)
NAXTSNC6392Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
ECLDISPLAYUNFC (optional)
NAXTSNC6393Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
ECLDISPLAYUNFC (optional)
NAXTSNC6402Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
ECLDISPLAYUNFC (optional)
NAXTSNC6403Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
NAXTS412
NAXTS413ECLDISPLAYUNFC (optional)
NAXTSA682Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, black
ECLDISPLAYUNFC (optional)
NAXTSA683Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, white
ECLDISPLAYUNFC (optional)
NAGAC6002Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, black
ECLDISPLAYUNFC (optional)
NAGAC6003Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, wihte
ECLDISPLAYUNFC (optional)
NASPW12SK215MGlobal Pulse Track clip wire suspension set 1.5m, 150N, black
NASPW12SK25MECLDISPLAYUNFC (optional)
NASPW12SK315MGlobal Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35MECLDISPLAYUNFC (optional)
NAXTSA57129
DISCONTINUED
*Global Pulse Rotating Nipples 3-Circuit Adapters, M10, H 12mm, D 7,4mm
ECLDISPLAYUNFC (optional)
NAXTSA55129Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm
NAGAM109
NAGAM139
NASKB122
NASKB123
PLCPW93075ECLDISPLAYUNFC (optional)
PLCDX53D5120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P68DECLDISPLAYUNFC (optional)
PLCYA7501P14DYY splitter cable Power 3x0.75 mm2 + DMX 120 Ohm, bare end, 1 meter
ECLDISPLAYUNFC (optional)
RSR0630BSteel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
UPBOX1UP5Firmware
Accomplish more with our product updates
Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and technical endurance.
Get in touch with our team for any questions or assistance.
Drawings
| Ecldisplayunfcb_+ECLDISPWASHL1530_3D.rfa | Download |
| Ecldisplayunfcb_+ECLDISPWASHL2550_3D.rfa | Download |
| Ecldisplayunfcb_+ECLDISPPRZL2040_3D.rfa | Download |
| Ecldisplayunfcw_+ECLDISPPRLZ2040W_3D.skp | Download |
| Ecldisplayunfcw_+ECLDISPWASHL2550W_3D.skp | Download |
| Ecldisplayunfcw_+ECLDISPWASHL1530W_3D.skp | Download |
| Ecldisplayunfcb_+ECLDISPPRLZ2040B_3D.skp | Download |
| Ecldisplayunfcb_+ECLDISPWASHL1530B_3D.skp | Download |
| Ecldisplayunfcb_+ECLDISPWASHL2550B_3D.skp | Download |
| Ecldisplayunfcb_+Ecldispwashl2550_CAD_2D.dwg | Download |
| Ecldisplayunfcb_+Ecldispprzl2040_CAD_2D.dwg | Download |
| Ecldisplayunfcb_+Ecldispwashl1530_CAD_2D.dwg | Download |
| Ecldisplayunfcb_+ECLDISPPRZL2040_CAD_3D.dwg | Download |
| Ecldisplayunfcb_+ECLDISPWASH2550_CAD_3D.dwg | Download |
| Ecldisplayunfcb_+ECLDISPWASH1530_CAD_3D.dwg | Download |
| Ecldisplayunfcb_+ECLDISPPRZL2040_CAD_2DSYMBOLS.dwg | Download |
| Ecldisplayunfcb_+ECLDISPWASHL1530_CAD_2DSYMBOLS.dwg | Download |
| Ecldisplayunfcb_+ECLDISPWASHL2550_CAD_2DSYMBOLS.dwg | Download |
| Ecldisplayunfcb_+Ecldispwashl2550_TECH_DRAWING.pdf | Download |
| Ecldisplayunfcb_+Ecldispprzl2040_TECH_DRAWING.pdf | Download |
| Ecldisplayunfcb_+Ecldispwashl1530_TECH_DRAWING.pdf | Download |
Catalogues
Fixture Libraries / DMX Charts
ECLDISPLAYUNFC Firmware rev. 1.3
| AVOLITES Titan | |
|---|---|
| manufacturer fixture library | Link |
| Capture | |
| manufacturer fixture library | Link |
| CHAMSYS | |
| manufacturer fixture library | Link |
| ETC Eos Family | |
| manufacturer fixture library | Link |
| GDTF | |
| manufacturer fixture library | Link |
| Grand Ma 2 | |
| manufacturer fixture library | Link |
| OBSIDIAN Onyx | |
| manufacturer fixture library | Link |
| Vista by ChromaQ | |
| manufacturer fixture library | Link |
VECTORWORKS
| LIBRARY | |
|---|---|
| VECTORWORKS_LIBRARY_v2022_LIBRARY.vwx | Download |
| VECTORWORKS_LIBRARY_v2017_LIBRARY.vwx | Download |
| SYMBOLS | |
| +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx | Download |
| +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx | Download |
| +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx | Download |
| +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx | Download |
| +ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx | Download |
| +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx | Download |
Photometrics
| prolights_ecldisplay(un-dat-cc)fc_profile2040_ies files.zip | Download |
| prolights_ecldisplay(un-dat-cc)fc_profile2040_ldt files.zip | Download |
| prolights_ecldisplay(un-dat-cc)fc_wash 2550_ies files.zip | Download |
| prolights_ecldisplay(un-dat-cc)fc_wash 2550_ldt files.zip | Download |
| prolights_ecldisplay(un-dat-cc)fc_wash1530_ies files.zip | Download |
| prolights_ecldisplay(un-dat-cc)fc_wash1530_ldt files.zip | Download |
| Ecldisplayunfcb_PROFILE20-40_PHOTOMETRIC_REPORT.pdf | Download |
| Ecldisplayunfcw_PROFILE20-40_PHOTOMETRIC_REPORT.pdf | Download |
| Ecldisplayunfcb_WASH1530_PHOTOMETRIC_REPORT.pdf | Download |
| Ecldisplayunfcw_WASH1530_PHOTOMETRIC_REPORT.pdf | Download |
| Ecldisplayunfcb_WASH25-50_PHOTOMETRIC_REPORT.pdf | Download |
| Ecldisplayunfcw_WASH25-50_PHOTOMETRIC_REPORT.pdf | Download |
Software Upgrades
| Prolights Dialux Plug-In | Download |
©2022 Music & Lights S.r.l. - VAT No. IT02057590594 - ISO 9001:2015 Certified Company
