HQ40C
Share me

Immagine Principale
  • HQ40C
  • HQ40C
  • HQ40C
    Code Orient. Vertex D.Ext (mm) D.Int. (mm) H (mm) D (mm) Weight (kg) Arc num Color Avail.
    HQ40C300 - - 3000 2200 400 400 13,50 4 AL
    HQ40C300B - - 3000 2200 400 400 13,50 4 BK
    HQ40C400 - - 4000 320 400 400 18,70 4 AL
    HQ40C400B - - 4000 3200 400 400 18,70 4 BK
    HQ40C500 - - 5000 4200 400 400 23,70 8 AL
    HQ40C500B - - 5000 4200 400 400 23,70 8 BK
    HQ40C600 - - 6000 5200 400 400 28,90 8 AL
    HQ40C600B - - 6000 5200 400 400 28,90 8 BK
    HQ40C700 - - 7000 6200 400 400 34,00 8 AL
    HQ40C700B - - 7000 6200 400 400 34,00 8 BK
    HQ40C800 - - 8000 7200 400 400 39,20 8 AL
    HQ40C800B - - 8000 7200 400 400 39,20 8 BK

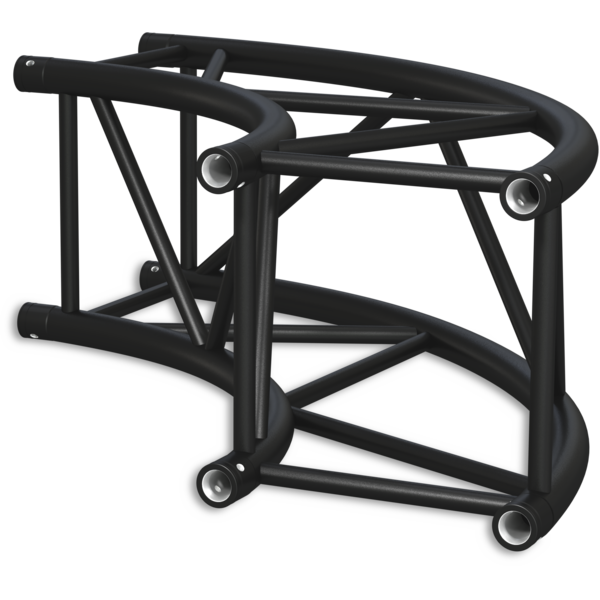

    Heavy square section circular aluminium truss structure with 40 cm sides.

    Features:
    Lengthwise: extruded tubes, Ø 50x3 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    4 fast connection kits FCQ5 included.

    ITEMS REF.
    Accessory Code
    Description
    HQ40C (include)
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    ST40 (include)
    SF40 (include)
    SQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
