LEDSTRIP63
Share me

Immagine Principale
  • LEDSTRIP63
  • LEDSTRIP63
  • LEDSTRIP63
  • LEDSTRIP63
  • LEDSTRIP63
    Code Color synthesis Avail.
    LEDSTRIP631 RGB
    LEDSTRIP632 WW 3200K
    LEDSTRIP633 CW 5600K
    LEDSTRIP634 Amber 2800K
    LEDSTRIP635 Blu
    LEDSTRIP636 Green
    LEDSTRIP637 Red

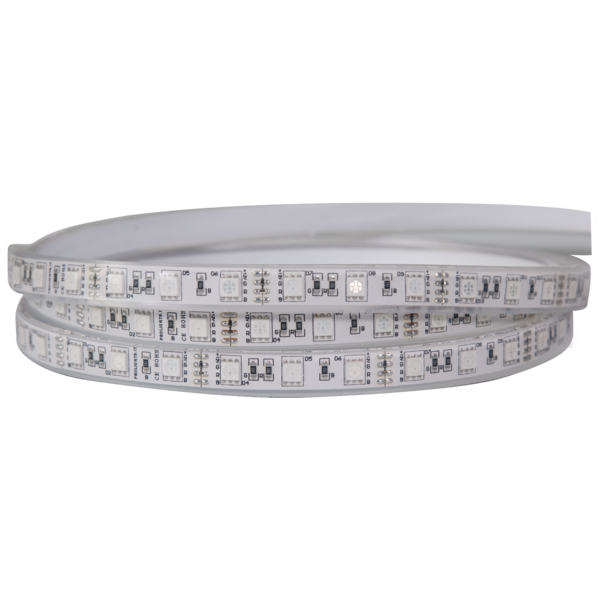

    Flexible LED strip based on SMD5050 technology conceived as a dynamic effect or colour changer for indoor / outdoor applications



    Features:
    Light source:
    LED source: SMD5050
    LED density: 60 LEDs / m
    LED population: 300 LEDs
    LED average lifespan: > 50000h
    Applications:
    For immersion in swimming pools, fountains or other high-humidity environments
    Background lighting for walls, shop windows and in various environments such as discos, clubs or showcases
    Behind translucent plexiglass panels to create slowly changing coloured surfaces or ceilings
    Fully flexible allowing manipulation to any curve or shape whilst remaining durable
    Structure:
    IP68 rating with double silicon resin
    PCB circuit colour: white
    Dimensions: 5000 x 12,5 mm
    Quick and easy mounting  through optional screw clamp (LSCLAMP1) or sticky clamps (LSCLAMP2, LSCLAMP3)
    Control and power supply:
    DC12V power supply through LSPW series  (optional)
    Easy application and wiring, LEDSTRIP can be easily cut to size according to user requirements without damaging the rest of strip
    Power output allows for more LEDSTRIP to be linked in a chain
    Power consumption: 16 W/ m, 80 W (5 m)

    Product Code
    Accessory Code
    Description
    LEDSTRIP63 (optional)
    Adjustable mounting support with adhesive base for LEDSTRIP series
    LEDSTRIP63 (optional)
    Mounting support with adhesive base for LEDSTRIP series
    LEDSTRIP63 (optional)
    LSCLAMP1LSCLAMP1
    FINESTOCK
    Mounting clamp with screw for LEDSTRIP series
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Power supply unit DC12V for LEDSTRIP series, 75W
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Power supply unit DC12V for LEDSTRIP series, 120W
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Power supply unit DC12V for LEDSTRIP series, 350W
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP4631 (optional)
    3ch DMX coder for LEDSTRIP series, XLR/RJ45 connections, 4A/ch (144W) output
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Wireless controller for LEDSTRIP seri, color, auto programs, speed, 4A/ch output
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    WiFi control interface for RGB LEDSTRIP, out 4A/144W
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    IR remote controller for LEDSTRIP series, 24 buttons, 12V, 2A/ch out
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Wired controller for LEDSTRIP series, 8 buttons, 12V, 4A/ch output
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Signal amplifier for RGB LEDSTRIP, 4A/ch out
    LEDSTRIP63 (optional)
    LEDSTRIP4631 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    Touch-sensitive control interface for RGB LEDSTRIP, out 4A/144W
    LEDSTRIP63 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Touch-sensitive control interface for mono-color LEDSTRIP, out 4A/144W
