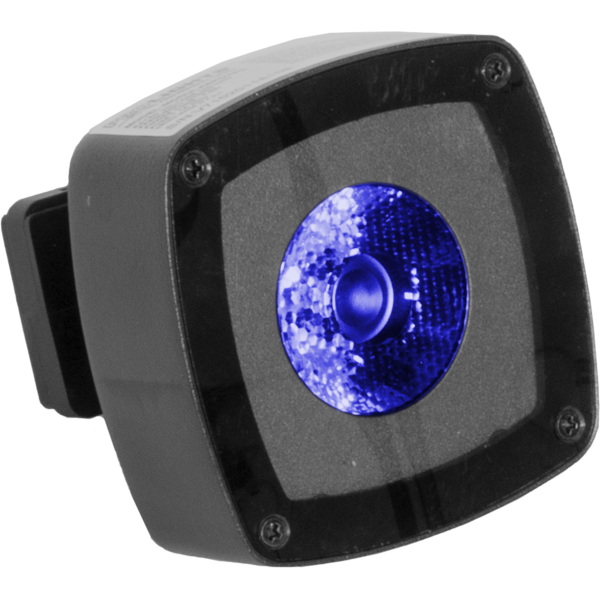

MODULASPOT
Share me

Immagine Principale
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
  • MODULASPOT
    Code Quantity Source Color Beam angle Avail.
    MODULASPOTFC 2 10w LED RGBW 15°
    MODULASPOTDY 2 3w LED White 4000K 15°
    LIGHT SOURCE
    • Source:
      (FC) 10 W - (DY) 3
      W
      LED
    • CT:
      (DY) 5.600
      K
    • CRI:
      (DY) 70,9 - (FC) 37,6
    • Luminous flux:
      (1xDY) 194 lm - (1xFC) 254
      lm
    • Lux:
      (1xDY) 5.320 lux - (1xFC) 5.150
      lx
      @1 m full
    • Lux:
      (1xDY) 477 lux - (1xFC) 453
      lx
      @3 m full
    • Source life expectancy:
      >50.000 h
    • Other:
      Max 6pc MODULASPOT per SMARTMODULA
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      23
      °
    ELECTRICAL
    • Power consumption:
      (Single FC) 5,5 W - (Full FC) 33 W - (Single DY) 1,5 W - (Full DY) 9 W
    PHYSICAL
    • Dimensions (WxHxD):
      80x80x110
      mm
    • Weight:
      0,25
      kg
    Product Code
    Accessory Code
    Description
    MODULASPOT (optional)
    ABS case to contain 12xMODULASPOT
    MODULASPOT (optional)
    STARKBAR1000 (optional)
    STARKBLADE8 (optional)
    PANORAMAIPAB (optional)
    STARK1000 (optional)
    STARK400 (optional)
    MODULAWASH (optional)
    MINIRUBY (optional)
    PIXIEBEAM (optional)
    LUMA700 (optional)
    RUBY (optional)
    ONYX (optional)
    CRYSTAL (optional)
    MOONSTONE (optional)
    AIR18Z (optional)
    DIAMOND7 (optional)
    AIR6PIX (optional)
    JADE (optional)
    RAZOR440 (optional)
    DIAMOND37 (optional)
    LUMA1500SH (optional)
    SMARTMODULA (optional)
    DIAMOND19CC (optional)
    DIAMOND19TW (optional)
    DIAMOND19 (optional)
    LUMA1500SP (optional)
    SMARTOWER (optional)
    PANORAMAIPSPOT (optional)
    RUBYFCX (optional)
    AIR5FAN (optional)
    PANORAMAIPWBX (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    CAD 2DDownload
    CAD 3DDownload
    DRAWINGDownload

    Fixture Libraries / DMX Charts

    Photometrics

    prolights_modulaspotdy_white_15°.iesDownload
    PHOTOMETRICSDownload
    PHOTOMETRICSDownload

    Software Upgrades

    User Manuals
