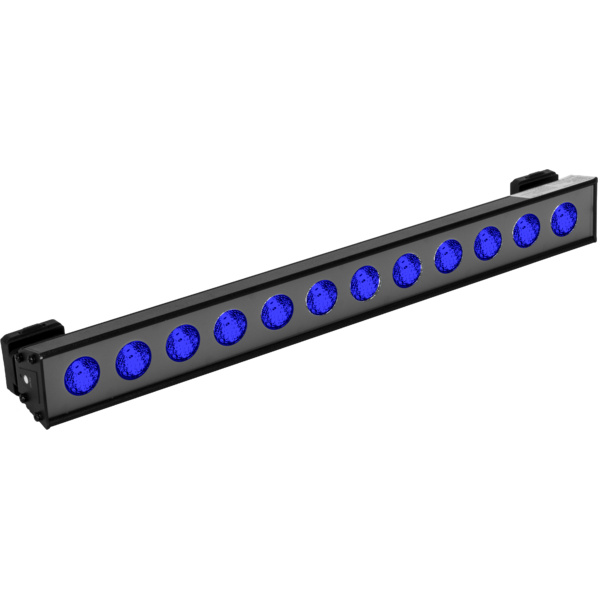

MODULAWASH
Share me

Immagine Principale
  • MODULAWASH
  • MODULAWASH
  • MODULAWASH
  • MODULAWASH
  • MODULAWASH
  • MODULAWASH
  • MODULAWASH
  • MODULAWASH
    Code Quantity Source Colour Beam angle Avail.
    MODULAWASHFC 1 25 W LED RGBW 60°
    MODULAWASHDY 1 25 W LED White 4000K 60°
    LIGHT SOURCE
    • Source:
      (FC) 12x6 W - (DY) 12x3
      W
      LEDs
    • CCT:
      (DY) 6.400
      K
    • Luminous flux:
      (DY) 1.213 lm - (FC) 2.778
      lm
    • Lux:
      (DY) 3.800 lux - (FC) 8.340
      lx
      @1 m full
    • Lux:
      (DY) 468 lux - (FC) 1110
      lx
      @3 m full
    • CRI:
      (DY) 81
    • Other:
      Max 1pc MODULAWASH per SMARTMODULA (+2pcs SPOT)
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      60
      °
    • Field angle:
      65
      °
    ELECTRICAL
    • Max power consumption:
      (Single FC) 27 W - (Single DY) 15
    PHYSICAL
    • Dimensions (WxHxD):
      500x55x55
      mm
    • Weight:
      1
      kg
    CODICE_PRODOTTO
    Accessory Code
    Description
    MODULAWASH (optional)
    ABS case to contain 04xMODULAWASH
    MODULAWASH (optional)
    PANORAMAIPAB (optional)
    MODULASPOT (optional)
    STARKBLADE8 (optional)
    STARKBAR1000 (optional)
    STARK1000 (optional)
    PIXIEBEAM (optional)
    MINIRUBY (optional)
    ONYX (optional)
    CRYSTAL (optional)
    DIAMOND7 (optional)
    AIR18Z (optional)
    AIR6PIX (optional)
    MOONSTONE (optional)
    LUMA700 (optional)
    DIAMOND37 (optional)
    STARK400 (optional)
    SMARTMODULA (optional)
    LUMA1500SP (optional)
    SMARTOWER (optional)
    SMARTOWERPACK (optional)
    LUMA1500SH (optional)
    DIAMOND19CC (optional)
    DIAMOND19TW (optional)
    DIAMOND19 (optional)
    RAZOR440 (optional)
    PANORAMAIPWBX (optional)
    RUBY (optional)
    RUBYFCX (optional)
    PANORAMAIPSPOT (optional)
    JADE (optional)
    AIR5FAN (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Modulawashfc_CAD_2D.dwgDownload
    Modulawashfc_CAD_3D.dwgDownload
    Modulawashfc_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    Photometrics

    prolights_modulawashdy_white_60°.iesDownload

    Software Upgrades

    Tech Docs
