MPC200A
Share me

Immagine Principale
  • MPC200A
  • MPC200A
  • MPC200A

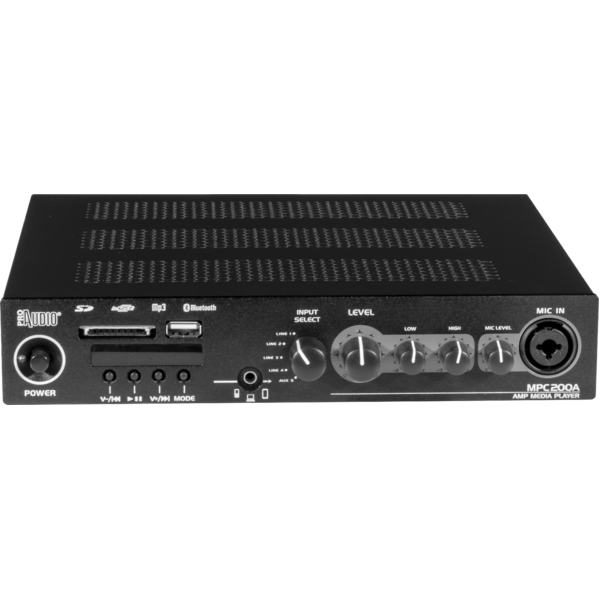

  • MPC200A is a multi-purpose stereo amplifier with multi-media player which can be used both for 70V constant voltage systems (1 ch in a bridge) that for 4/8 Ohm low impedance systems (2 ch stereo).



    Features:
    It is equipped with MP3 media player/Bluetooth.
    It is designed for permanent or mobile installations where easy control of music is important (eg. restaurants, gyms stores).
    MPC200A offers digital playback from SD cards or USB sticks.
    The MPC200A amplifier provides full MP3 playback control, microphone input (XLR / 1 / 4 combo), 5 inputs (RCA / jack 3.5) and the master volume control of high and low tones. Moreover, the output line (RCA) allows you to connect an additional amplifier.

    AMPLIFIED MIXER
    • Channels:
      2
    • Circuit class:
      digital
    OUTPUT
    • Power at constant voltage 70V:
      600
      W
      (bridge mode)
    • Single channel power:
      200/300
      W
      8/4 Ohm
    • Bridge mode power:
      600
      W
      8 Ohm
    AUDIO SPECIFICATIONS
    • Frequency responce:
      20 - 20000
      Hz @ 8 Ohm
      (±0.5 dB)
    • THD+N:
      <0.1
      %
    • Input impedance:
      10
      unbalance
    • Signal/Noise rate:
      >100
      dB
    POWER SUPPLY STAGE
    • Type:
      Switching
    • Operating voltage/frequency:
      230V (+/- 5%) 50Hz
    PROTECTIONS
    • Output:
      Soft-start, short circuit, DC, overheat
    FUNCTIONS
    • Media player:
      MP3/USB/SD/Blutooth
    • Tone controls output:
      100 Hz, 10kHz (±12dB)
    • Input volume control:
      mic, line1/2/3/4/aux
    • Output volume control:
      output master
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR combo (mic), pin RCA, Jack 3.5 mm
    • Output signal:
      binding post
    • Power connection:
      VDE
    PHYSICAL
    • Dimensions (WxHxD):
      240x44x212
      mm
    • Rack unit:
      1
      9.5 (1/2 standard rack)
    • Weight:
      2.1
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
