MPC6260T
Share me

Immagine Principale
  • MPC6260T
  • MPC6260T
  • MPC6260T

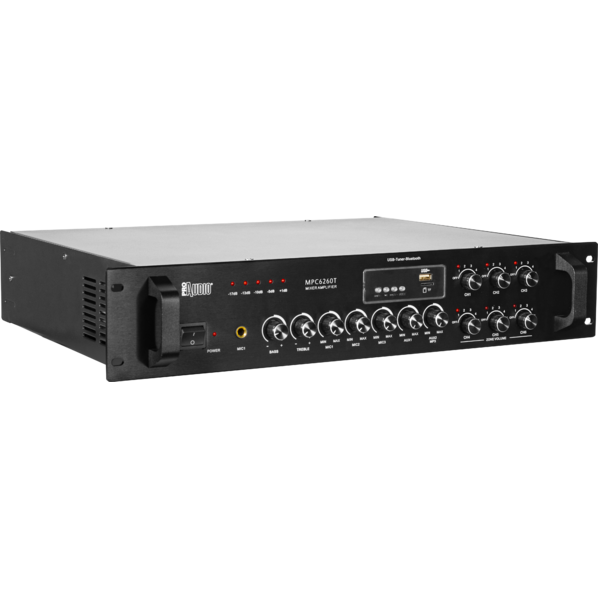

  • 6 zone mixer/amplifier with FM tuner, Bluetooth and MP3/USB/SD card player. Designed for mixing and broadcasting voice announcements and music in PA systems

    Features:
    Built-in FM tuner and MP3/USB/SD card player.
    4-16Ohm low impedance outputs or constant voltage outputs (70/100V).
    5 inputs: 3 Mic in, 2 stereo line.
    Mic 1 input with priority function (vocal activation).
    RCA pre-out output.
    Volume control each zone.
    Independent level controls for input signals.
    2U 19” standard rack.

    AMPLIFIED MIXER
    • Channels:
      1
    • Zone:
      6
    • Circuit class:
      analog
    OUTPUT
    • Power at constant voltage (70/100V):
      260
      W
    • Power at low impedance (4 Ohm):
      260
      W
    AUDIO SPECIFICATIONS
    • Frequency responce:
      60 - 16000
      Hz @ 8 Ohm
      (±0.5 dB)
    • THD+N:
      <0.5
      %
    • Input impedance:
      10
    • Signal/Noise rate:
      >85
      dB
    POWER SUPPLY STAGE
    • Type:
      Trasformer
    • Operating voltage/frequency:
      220/240V, 50/60Hz
    PROTECTIONS
    • Output:
      Soft-start, short circuit, DC, overheat
    FUNCTIONS
    • Media player:
      MP3/USB/SD/FM tuner/Bluetooth
    • Tone controls output:
      BASS: +/- 10 dB @ 100 Hz TREBLE: +/- 10 dB @ 10 Khz
    • Input volume control:
      mic1, mic2, mic3, aux1, aux2
    • Output volume control:
      Automatic mute for announcements (mic1)
    INDICATORS
    • Indicators:
      LED bar - signal level, over temperature and protection
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR/Jack bal. pin RCA unbal
    • Output signal:
      screw terminal block
    • Power connection:
      VDE
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Dimensions (WxHxD):
      483x89x366
      mm
    • Rack unit:
      2
    • Weight:
      14
      kg
