  • PBS6321
  • PBS6321
  • PBS6321

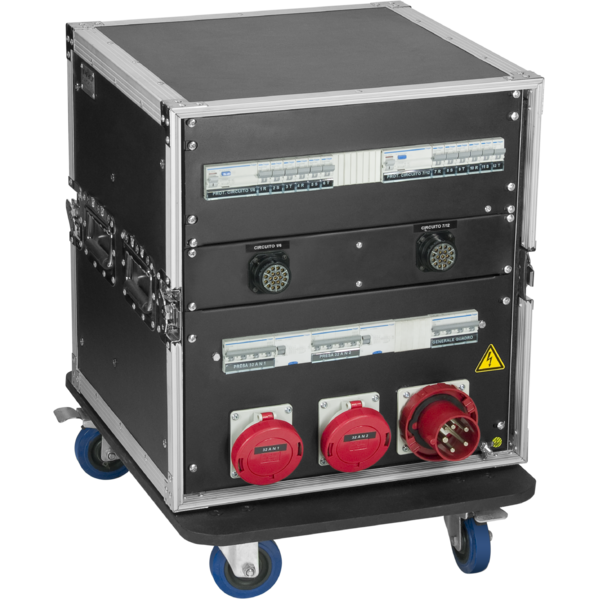

  • Power distribution box, 63A 5p input plug

    Features:
    Structure:
    12U 19'' rack, 9mm plywood, 2 openings, skate with wheels
    Inner metal foil protective covering
    Dimensions (WxHxD): 56x74x72 cm
    Input:
    63A-5p (3P+N+E) panel mount CEE plug, 400V 50/60Hz IP67, 1pc (code 913315)
    Output:
    32A-5p (3P+N+E) panel mount CEE socket, 400V 50/60Hz IP67, 2pcs (code 912415)
    Panel mount multi-pin sockets 19P IP67 Socapex compatible, 2pcs (code 9262191FP)
    16A-3p (1P+N+E) panel mount CEE socket, 230V 50/60Hz IP44, 12pcs (code 911413)
    16A-3p (1P+N+E) panel mount Italian/German socket, 230V 50/60Hz with DIN support, 1pc (code 911463)
    Protection:
    4P magneto-thermic switch , 4 modules, 63A 10kA tipe A, 1pc
    Residual current circuit breaker w overcurrent protection, 4P, 7 modules, 32A, curve C 6kA tipe A, 30mA, 2pcs
    Magneto-thermic switch (1P+N), 1 module, 16A curve C 6kA, 24pcs
    Residual current circuit breaker, 1P+N, 2 modules, 16A, curve C 6kA tipe A, 30mA, 1pc
    Residual current circuit breaker w/o overcurrent protection, 4P, 4 mod, 40A tipe A, 30mA, 4pcs
    Tools:
    4P fuser block, 4 modules, 1pc
    Triple LED indicator, 1pc
    Digital voltmeter, tension range 35-480V, 4 modules, 1pc
    Voltmeter commutator for DIN bar, 7 position, 3 modules, 1pc
    Digital ammeter,  range 0-150A, 4 modules, 1pc
    Ammeter revolving commutator for DIN bar, 4 positions, 3 modules, 1pc
