SQ30C
Share me

Immagine Principale
  • SQ30C
  • SQ30C
  • SQ30C
  • SQ30C
    Code Orient. Vertex D.Ext (cm) D.Int. (cm) H (cm) D (cm) Weight (kg) Arc num Avail.
    SQ30C1000B - - 1000 942 29 29 42,70 12
    SQ30C200B - - 200 142 29 29 7,60 4
    SQ30C300B - - 300 242 29 29 11,90 4
    SQ30C400B - - 400 342 29 29 16,30 4
    SQ30C500B - - 500 442 29 29 20,70 8
    SQ30C600B - - 600 542 29 29 25,10 8
    SQ30C700B - - 700 342 29 29 29,50 8
    SQ30C800B - - 800 742 29 29 33,90 8
    SQ30C900B - - 900 842 29 29 38,30 12
    SQ30C200 - - 200 142 29 29 7,60 4
    SQ30C300 - - 300 242 29 29 11,90 4
    SQ30C400 - - 400 342 29 29 16,30 4
    SQ30C500 - - 500 442 29 29 20,70 8
    SQ30C600 - - 600 542 29 29 25,10 8
    SQ30C700 - - 700 642 29 29 29,50 8
    SQ30C800 - - 800 742 29 29 33,90 8
    SQ30C900 - - 900 842 29 29 38,30 12
    SQ30C1000 - - 1000 942 29 29 42,70 12

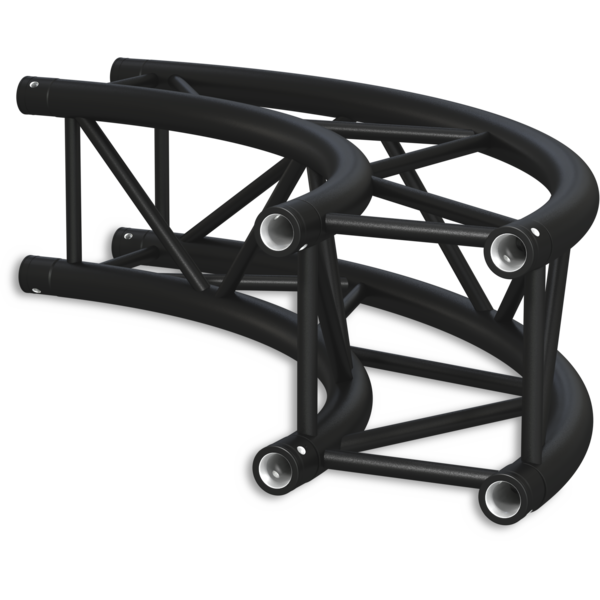

    Square section circular aluminium truss structure with 30cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6
    Diagonal: extruded tubes, Ø 25x2 mm 6082 T6
    Plate: conical quick-lock connectors
    x4 Fast connection kits FCQ5 included

    Product Code
    Accessory Code
    Description
    SQ30C (include)
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    ST40 (include)
    SF40 (include)
    HQ40C (include)
    SQ40C (include)
    HQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
