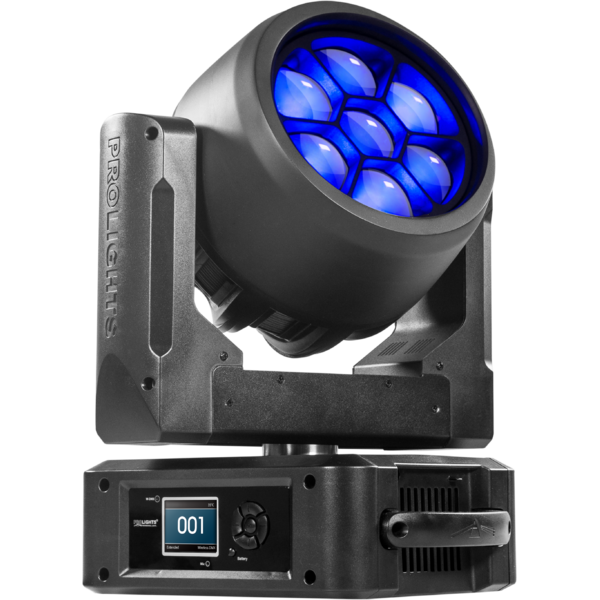

  • STARK1000CC and STARK400CC are pure wash light versions of the STARK automated luminaires. Made specifically for lighting designers who only need a wash light but do not want to give up the advanced optical system and brightness of the STARK series but only removing pixel control.

    Features:
    7x40 W RGBW full-colour luminus LEDs
    Unique optical system, featuring 3° - 45° zoom range and even light spread
    CT channel with white emulation: 2.800 K - 9.000 K
    Liquid cooling system for minimal noise

    LIGHT SOURCE
    • Source:
      7x40
      W
      RGBW LED
    • Luminous flux:
      11'660
      lm
    • Lux:
      (4°) 37'250
      lx
      @3 m full
    • Lux:
      (4°) 13'910
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      3° - 45
      °
      motorised linear zoom
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CTC:
      CTC control through independent DMX channel
    • White presets:
      2.000 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with presets
    BODY
    • Pan angle:
      540° / 630
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      16 bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with hi-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM
    • W-DMX:
      optional, wireless solution receiver
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      via menu with internal memory or via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Battery backup:
      battery backup for user operation without connecting to the main power
    • Operating temperature:
      -10° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      265
      W
    PHYSICAL
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Sospension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • IP rating:
      20
    • Dimensions (WxHxD):
      328x449x235
      mm
    • Weight:
      11,3
      kg
