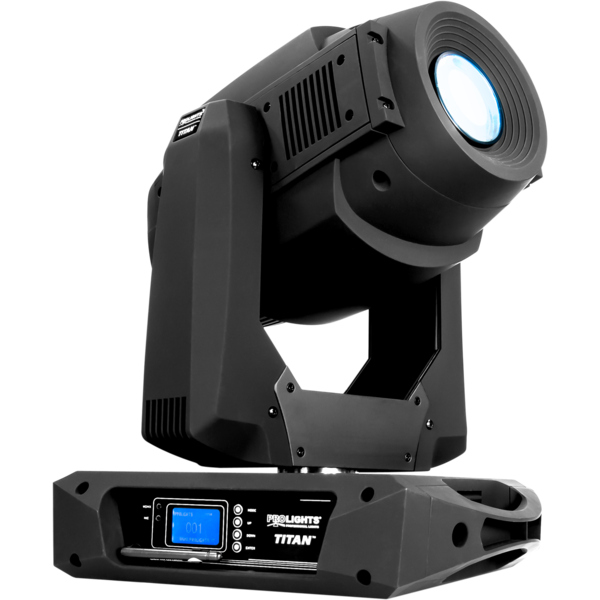

  • TITAN is a new generation moving Spot, conceived to combine power, performance, green design and light-weight in the same fixture. The new generation optics combined with the high-efficiency 5R Platinum lamp allow an extreme brightness, higher than traditional fixture with MSI575W, reducing consumptions of 1:2 factor. TITAN offers an unprecedent effect range for such small fixtures as linear 9°-31° zoom, frost, Iris, focus, 14 colours, 18 gobos, 3 facet rotating prism.The special optic and the flexible control possibilities make TITAN a multipurpose fixture for Spot, Wash, Beam applications. The compact sizes (H. 50cm) and its light-weight profile (12,5Kg) make it a suitable fixture to be installed everywhere for Live, TV studio, theatre, showroom and conference event.

    Lamp
    • Philips MSD Platinum 5R 189W (cod. 800198 included)
    • Colour temperature: 8000 K
    • Luminous flux: 7.950 lm
    • Average life span: 2000 h

    Optics
    • High definition anti-reflection lenses with achromatic coating
    • Parabolic glass reflector with dichroic coating
    • 9°-31° electronic linear zoom
    • Focus: motorized focusing, from 2 m to infinity

    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 8 flash per second

    Colour system

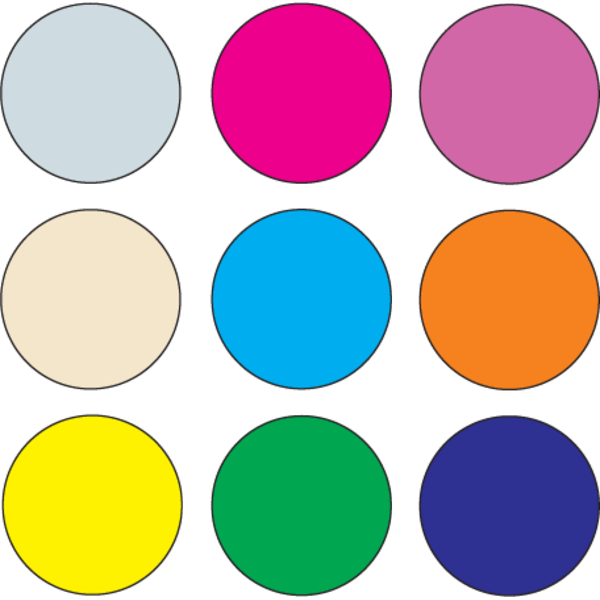

    • Colour wheel with 14 dichroic filters + open (linear-step-less selection)
    • 3200K + 5600K colour temperature filters
    • Bidirectional rainbow effect

    Effects

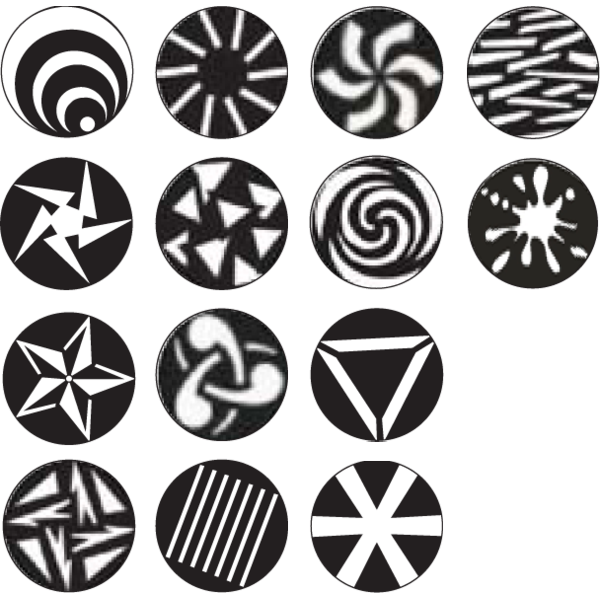

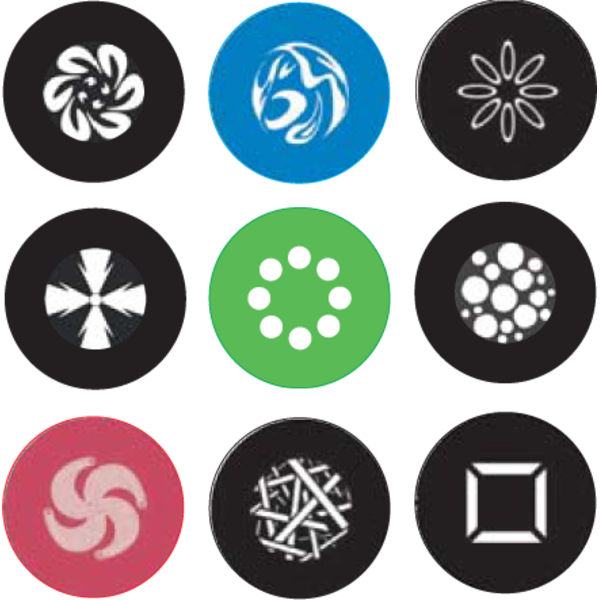

    • 1st Gobo wheel: 9 dichroic rotating Gobos
    • 2nd Gobo wheel: 9 metallic fixed Gobos
    • 81 possible overlapping gobos combinations
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheel for replacement
    • Linear Frost filter for washer performance
    • 3 facet prism effect, rotating, indexable, replaceable
    • 5-100% motorized iris


    Electronics
    • LCD display for a simplified access to control menu, configuration and DMX addressing
    • 2 DMX configurations available: 15/17 channels for full flexibility and control
    • Integrated 2,4GHz WDMX receiver (Wireless solution)
    • Input and output signal through XLR 3p and 5p connectors
    • Remote ON/OFF lamp control by DMX
    • Remote unit reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Thermal sensor monitoring optimum lamp temperature
    • Cooling: filtered forced ventilation with variable speed low-noise fans

    Structure and moving body
    • Aluminium structure with polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • Motion Angle: Pan = 540°  Tilt = 270°
    Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

    Power supply
    • Electronic ballast: 100-240V 50/60Hz universal power supply
    • Power consumption: 400W at 230V/50Hz

    Weight and dimensions
    • Weight: 12,5 kg

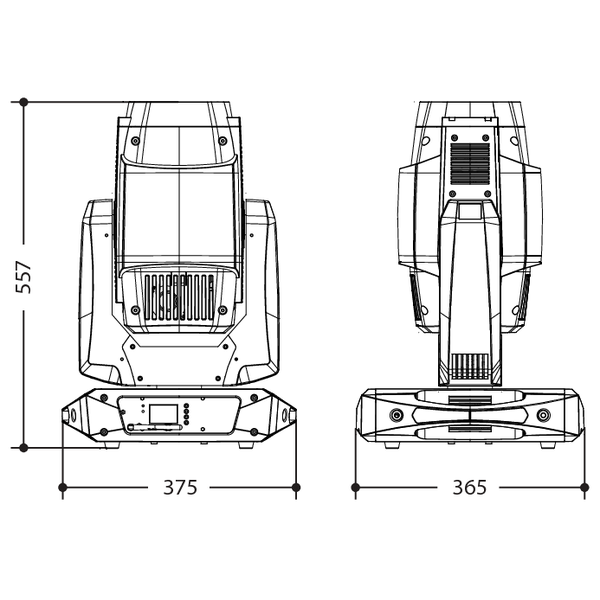

    • Dimensions (WxHxD): 375x557x365 mm


    Product Code
    Accessory Code
    Description
    TITAN (include)
    800198800198
    DISCONTINUEDFINESTOCK
    *189W 207V, discharge lamp (MSD Platinum 5R), socket with Pins 2.8x0.8mm
    TITAN (optional)
    FCLTITANFCLTITAN
    FINESTOCK
    Flight case for 2pcs of TITAN, dimensions: 1070x480x800 mm
    TITAN (include)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    ARCLED7513Q2Z (optional)
    Z300BEAM (include)
    ARCLED7513VWZ (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    ARCLED8107Q (include)
    C60C60
    Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
    TITAN (optional)
    SOLAR (optional)
    GENESIS (optional)
    MINIECLIPSEWD (optional)
    MICROF1G4MICROF1G4
    DISCONTINUED
    *Micro F-1 Lite G4, 2.4GHz Transceiver, DMX/RDM, Battery Option
    TITAN (optional)
    LION (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    DOTQ (optional)
    SOLAR (optional)
    LUMA700 (optional)
    RUBY (optional)
    GENESIS (optional)
    MINIECLIPSEWD (optional)
    DISPLAYCOBTRWDWW (optional)
    SMARTBATPLUS (optional)
    JADE (optional)
    RAZOR440 (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMA1500SH (optional)
    LUMA1500SP (optional)
    BLACKBOXF1G4MK2BLACKBOXF1G4MK2
    DISCONTINUED
    *BlackBox F-1 G4 MK2, Transceiver 2.4/5.8 GHz, 512 ch DMX/RDM

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

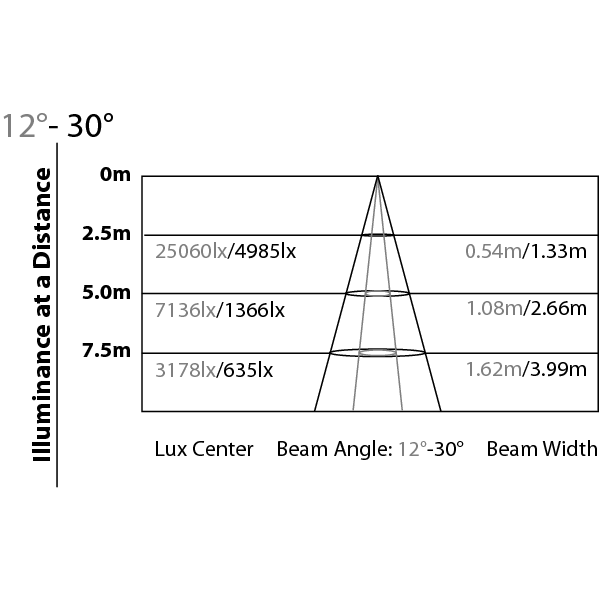

    Photometrics
