ARCLED1107UV
PROLIGHTS
end of life

ARCLED1107UV

ORDER CODE: ARCLED1107UV

Main features:

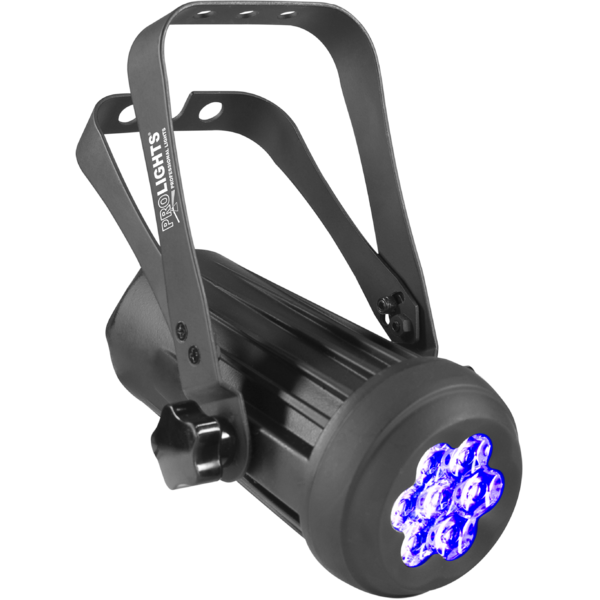

    ARCLED1107UV is an innovative LED luminaire, designed to express a new concept of lighting in indoor location where a compact (only 17x6,5cm), lightweight,  powerful and low-consumption (less than 10W) projector is needed. ARCLED1107UV features 7 LEDs, 1W each, with innovative UV technology for reproduction of wood lamp effect through LED source, exalting white colour in penumbra environments . Its performance makes this projector, the best lighting tool for entertainment in discos, clubs, dance-floors.

    Light source and optics
    • 7 x 1W high-efficiency CREE LEDs: UV technology
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: UV to exalt white colours in penumbra environments
    • Installed optics: 18°
    • Beam angle: 20°
    • Field angle: 37,5°
    • LEDs average life span: > 50.000 hours

    Electronics and features

    • Several DMX selectable configurations (1, 2 channels) for advanced or basic controlling
    1 channel: master dimmer
    2 channels: dimmer, strobe
    • User interface through dip-switches for DMX addressing, manual control, auto-mode and program speed adjustment
    • Master/Slave mode for stand-alone operations
    • Linear and “step-less” transition between DMX values
    • Flicker free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and power supply

    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Internal protection: IP20
    • Power (shuko) and data (xlr-3p) cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Max output consumption: 10W
    • Weight: 0,8 kg
    • Dimensions (WxHxD): 110x65x175 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled1107uv_USER_MANUAL_ITEN.pdf(23/11/2011)3MB
