ARCLED3404

Main features:

---

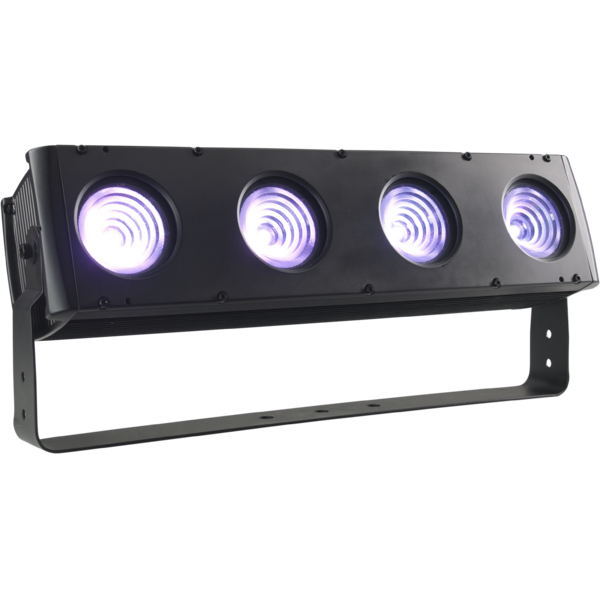

ARCLED3404 is a multi-purpose fixture with a unique and innovative design, conceived to take the traditional LED batten to a new level. The precision and efficiency of the cutting-edge 15° optics, combined with the high-power 4x40W RGBW/FullColor source allow this fixture to achieve an unprecedent light-output and limitless chromatic possibilities through the white on board LED-chips. In the “pixel-control mode” ARCLED3404 features an individual LED control, offering an advanced generation of visual and graphics effects.
The wide range of compatible accessories includes bracket for stacking an array of up to 4 units, maintaining the same pixel pitch.
ARCLED3404 is simply the most versatile fixture in its category, ideal for applications in large stage events, TV studios and architectural due to its IP65 structure.

Light source and optics

• 4 x 40W high-efficiency CREE RGBW/FC
• Lumen: 3600
• Lux @ 2 m: 10151
• Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
• Colour synthesis: 4in1 RGBW mixing for tones, temperature and saturation control
• White temperature presets: 3200K~10000K
• Beam angle: 15°
• Higher optic efficiency (>85%)
• LEDs average life span: >50'000 h

Electronics and features

• Several DMX selectable configurations (3, 4, 5, 6, 11, 16 channels) for advanced or basic controlling
3 channels: RGB
3 channels: HSV
4 channels: RGB, dimmer
4 channels: RGBW
5 channels: RGBW, dimmer
6 channels: RGBW, dimmer, strobe
11 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed, dimmer speed
16 channels: RGBW (x 4 pixels)

• "Pixel control mode" for individual LED adjustment
• LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
• 5 different dimming curves available
• Master/Slave mode for stand-alone operations
• Linear and “step less” transition between DMX values
• Flicker-free operations (400Hz)
• Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

Structure and Power supply

• Sturdy die-cast aluminum body conceived for long-time durability and demanding applications
• Frontal tempered glass panel
• Internal Protection: IP65 (IP) - IP54 (TZ)
• Pressure and temperature balance through GORE membrane vents
• Power (shuko) and data (xlr-3p) adapter cables included
• Double hanging bracket suitable for safe hanging and for floor positioning
• Power unit: 100-240V 50/60Hz
• Working temperature: -20/+45 °C
• Power output to link more units in a chain: up to 7 fixtures at 230V
• Max power consumption: 215W
• Weight: 10 kg
• Dimensions (WxHxD): 560x135x225 mm
