ARK416MP
DAD

Ark 416MP

Passive 2.5-way 450 W AES column loudpseaker module, 129 dB SPL

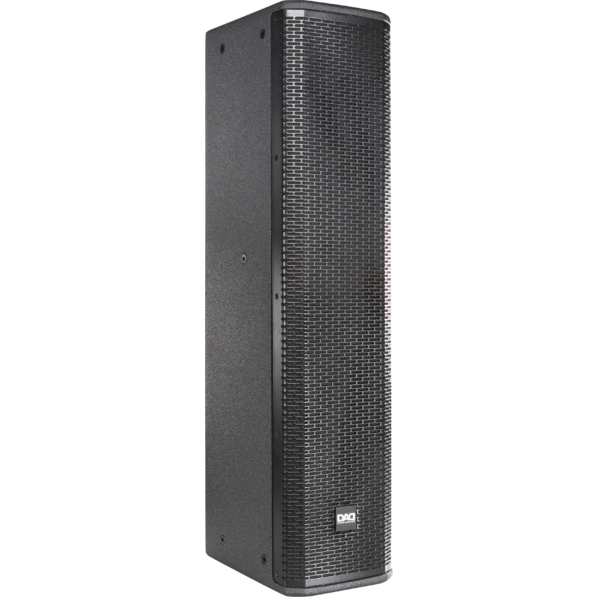

ARK416MP is a 2.5 way passive medium throw speaker for fixed and mobile installations. It consists of a 1" compression driver (1.75" v.c.), mounted on a waveguide. The nominal coverage (H x V) is 90°x50°. The MF/LF frequency range is covered by 6" 4 units speakers placed symmetrically with respect to the HF driver. The 2.5-way design with woofer placement at the ends of the cabinet reduces the frequency from which the speaker increases the control of dispersion in the vertical plane. The result ensures maximum intelligibility of sound and speech in reverberant environments.
The ARK416MP is an extremely flexible speaker, it can be used in full range or as an MF / HF section (up to two overlapping units) in high sound pressure systems The cabinet is made of 12 mm birch plywood with a black polyurea finish.
The ARK416MP speaker can be combined with the ARK15SA subwoofer. The subwoofer has a 700W amplified output. ARK416MP and ARK15SA constitute a powerful portable system with amplified column.


Main features:

  • Low frequency: 4x6'' Nd woofer/1.5'' v.c.
  • High frequency: 1'' Nd driver / 1.7'' v.c.
  • Frequency response: 80-18000 Hz (±3dB)
  • Cover angle HxV:90°x50°
  • Combined with the ARK15SA subwoofer
  • Configurable up two superimposed units
  • Optional transport and fixing accessories

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: 2.5 way passive column module
COMPONENTS
  • Low frequency: 4x6'' neodymium woofer / 1.5'' v.c.
  • High frequency: 1'' neodymium driver / 1.7'' v.c.
FEATURES
  • AES/program power: 450/900W
  • SPL max: 129dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 98dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 123/129dB @1m (free field)
  • Frequency response: 80-18000Hz (±3dB)
  • Coverage angle HxV: 90x50°
  • Cross over frequency: 1600Hz passive
  • Suggest HPF range: 120/150Hz
  • Recommended amplifier up to: 900W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Phoenix - NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 12mm / 0.47'' birchplywood
  • Sospension system: Under: 35 mm mounting pole - Up: M20 screw
PHYSICAL
  • Dimensions (WxHxD): 180x813x255mm / 7.09''x32.01''x10.04''
  • Weight: 13.6kg / 29.98lbs

Versions

Code
ARK416MPBK
ARK416MPBK
ARK416MPWH
ARK416MPWH

Accessories & Related Products

ARKUB1BK
ARKUB1BK
(Optional)
Optional bracket for ARK426A, ARK216A, ARK416MPBK BLACK COLOR
ARKM20POLE
ARKM20POLE
(Included)
Aluminum cylinder with M20 screw for ARK426A, ARK416MP, ARK216A
SM2040
SM2040
(Optional)
Fixed speaker pole, H.40 cm - 35mm, with M20 screw, 60kg max
SM20
SM20
(Optional)
Adjustable speaker pole, H.88.5-133.5cm - 35mm, with M20 screw, 60kg max
BAGARK416MP
BAGARK416MP
(Optional)
Reinforced nylon bag for the protection/transport of one piece of ARK416MP
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
ARKWMS20BK
ARKWMS20BK
(Optional)
Adjustable bracket on three axes for ARK series speakers, black, max 20 kg
ARKWMS20WH
ARKWMS20WH
(Optional)
Adjustable bracket on three axes for ARK series speakers, white, max 20 kg
