BOXT1
PROLIGHTS
discontinued

Boxt1

ORDER CODE: BOXT1

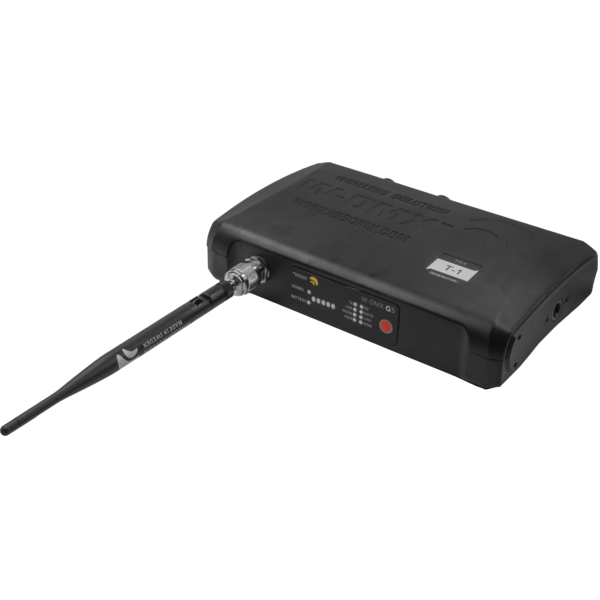

The BOXT1 series is an industry all-weather bell for Wireless DMX, packed into a tough, roadworthy die-cast metal casing. Crammed with all our W-DMX™ technologies, the BOXT1 series is built for the true lighting professional. Built-in automatically switching power supplies mean that no matter where you are in the world, BOXT1 units are ready to go. BOXT1 units can be supplied directly by a battery thanks to the Phoenix Gold 12 V input. BOXT1 units ship with an antenna as standard which provides up to an exceptional 800m of range. For links over greater distances or for more complex projects, the N-type antenna connector allows any compatible antenna to be screwed on quickly and easily. The products come with a range of different mounting options including truss and rack mount options. Whatever the location, the BOXT1 units can be securely mounted.


Main features:

  • Single universe outdoor DMX transceiver
  • Invisi-wire high-fidelity technology - output matches Input
  • Datasafe technology - wireless fidelity and error correction
  • Less than 5 ms latency
  • 2,4 GHz radio - license-free worldwide

PHOTO GALLERY

Technical specifications

CONTROL
  • Supported Protocols: DMX512
  • Control units: single button for easy use
  • Other: interchangeables antennas
CONNECTIONS
  • Signal connection: DMX 3p + 5p IN/OUT
  • Power connection: powerCON IN
PHYSICAL
  • Weight: 0,8kg / 1.76lbs
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DBoxt1_CAD_2D.dwg(11/05/2021)435KB
Technical drawingBoxt1_TECHNICAL_DRAWING.pdf(11/05/2021)91KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
