Cromo Wash600

ORDER CODE: CROMOWASH600

Main features:

---

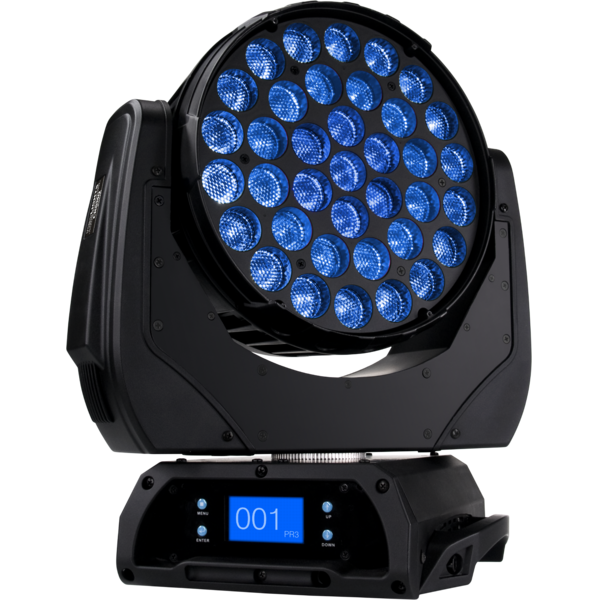

CROMOWASH600 is a moving ledwasher featuring 37x10W RGBW FullColor LEDs with a slim housing and a multi-purpose technical profile. Wash, Beam or eye-candy, the CROMOWASH600 has been designed to renew every-lighting show with an advanced creativity, introducing a new generation of cues, patterns and aerial effects. The new LED technology uses several LED chips on a single module that creates just perfect point source of extremely smooth new dimensional colour mixing of RGBW. The virtual colour wheel grants a quick access to the built-in library of calibrated colours, for an excellent reproduction of saturated and pastel tones including the white variants. The fast-zoom optic design combined with a dual top-heat system feature a perfect fusion between the 4 primary  colours and  allows a 15-45° linear zoom for both “long through” beam performance and “flood” projection.
Its noise-free operation makes CROMOWASH600 an ideal tool where the silence is a top-priority like theaters and TV studios, keeping very quick movements and fast rushing over music beats.

Light source and optics

• 37 x 10W high-efficiency CREE RGBW FullColor LEDs
• Lumens: > 6860 lm
• Lux @5m: 2'285
• Colour synthesis: RGBW FullColor mixing (>16 million colours) for a limitless colour range and variable CTC control
• White temperature presets: 3200K~10000K
• Beam angle: 15°-45° Zoom
• Electronic linear zoom with motorized and scrolling lens panel
• LEDs average life span: >50'000 h

Dimmer/Shutter/Strobe

• 0-100% linear dimmer
• 4 different dimming curves available
• Independent shutter and fading effects with adjustable speed
• Strobe: Electronic, 1-20 flash per second

Electronics

• 3,5'' LCD display for a simplified access to control menu, configuration and DMX addressing
• Master/Slave mode for stand-alone operations
• Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface
• Linear and “stepless” transition between DMX values
• Flicker-free operations (400Hz)
• 4 DMX available configurations: 8, 10, 16, 21 channels for a basic or advanced control mode
• 2,4GHz Wireless DMX antenna receiver by Wireless solution Sweden (optional)
• Unit reset: through control panel or via DMX
• Cooling: forced air, protection against overheating


Structure and moving body

• High resistance and flame retardant polymer case in black colour
• Internal protection: IP33
• Power cable (shuko 1,5mt) included
• Motion Angle: Pan = 540° Tilt = 300°
• Pan/Tilt resolution: 8-bit or 16-bit:
• Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
• Suspension and fixing: any possible working position through omega kit (included)

Power supply

• Power unit: 100-240V 50/60Hz
• Max power consumption: 465W

Weight and dimensions

• Weight: 11,6 kg
• Dimensions (WxHxD): 400x394x270 mm
