CS850SUB
PROAUDIO

CS850SUB

ORDER CODE: CS850SUB

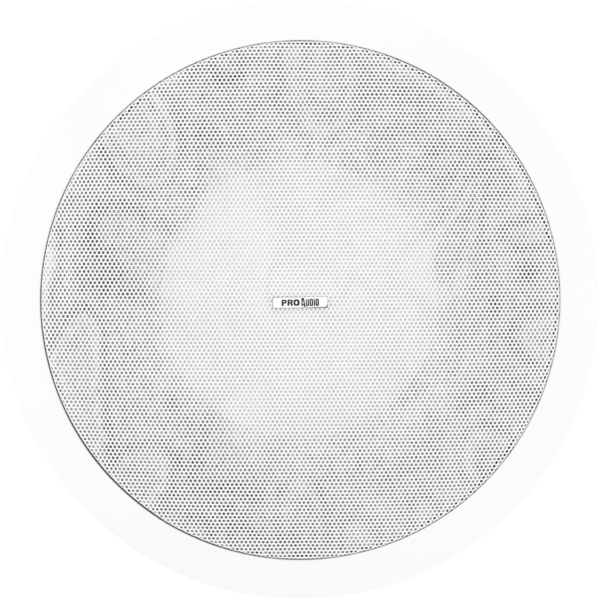

Recessed subwoofer loudspeaker with closed rear cover. Ideal for high fidelity sound reproduction designed for ceiling mounting. Constant voltage (100 V) or low impedance (8 Ohm) operation.

Main features:

  • Ceiling subwoofer.
  • Built-in line transformer output connections for 100 V constant voltage lines.
  • White ABS body and metal protection grid.
  • Quick and easy installation by a special holding system, with no need of screws or other fixing elements.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: closed enclosure ceiling speaker
COMPONENTS
  • Low frequency: 8''
FEATURES
  • AES/program power: 50/100W
  • Input 100 V: 50W
  • SPL max: 101dB
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 90dB @1W/1m (free field)
  • Impedance: (200 Ohm/100 V)/ 8 Ohm
  • Constant voltage: 100 V
  • Frequency response: 50÷200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
INPUT/OUTPUT CONNECTORS
  • Input signal: terminal with wire
CABINET CONSTRUCTION
  • Cabinet material: ABS, Iron
PHYSICAL
  • Weight: 4kg / 8.82lbs
  • Diameter Ø: 280mm / 11.02''
  • Flush-mounting hole Ø: 250mm / 9.84''
  • Color: White - 9003RAL

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualCs850sub_USER_MANUAL.pdf(08/10/2019)708KB
