DELTAX29B
PROLIGHTS
discontinued

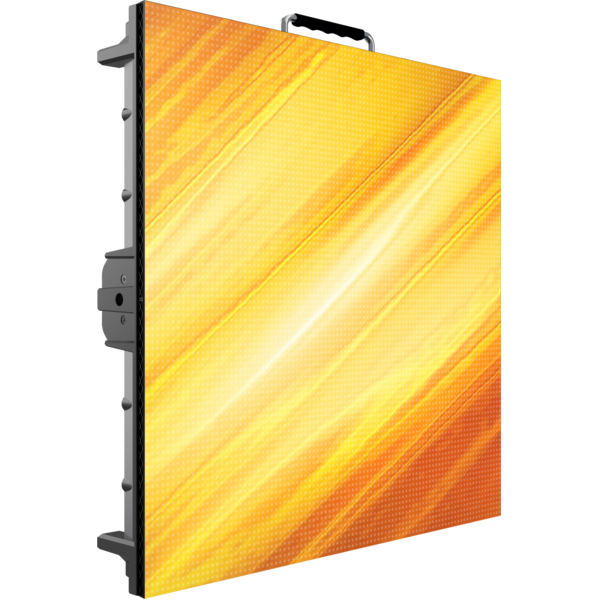

Deltapix 29B

ORDER CODE: DELTAX29B

Indoor rental 2,9 mm LED screen with power backup

DeltaPix 29B is a rental LED screen for indoor use with a 2,9 mm pixel pitch, designed to meet requirements for demanding corporate, TV and install applications.
The DeltaPix 29B panels can be curved up to 10° concave, and support automatic power backup in case of any PSU failures.
The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Curvable up to 10° concave by high precision metal plates
  • Automatic power backup
  • Refresh rate of 3.840 Hz

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICN 2153
  • LED source: SMD 1515 full black
  • Pixel pitch: 2.97mm / 0.12''
  • Panel resolution: 168x168pixels
  • Module resolution: 84x84pixels
  • Luminous flux: 650nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/21 scan, constant current
  • Vertical viewing angle: 140°
  • Horizontal viewing angle: 120°
  • LED density: 112.896LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 150W
  • Avg power consumption (panel): 50W
  • Max power consumption (sqm): 600W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 21W
  • Max rated current/panel:: AC 220 V / 0.55 A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A5S PLUS
  • Other controllers type: power backup connectors, mapping, firmware copy, RCFGX restore
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Magnetic LED modules: available
  • Other specifics: curve configurations
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×73mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7kg / 15.43lbs
  • Weight per square meter: 28kg / 61.73lbs
  • Hanging Panel Quantity ≤: 20 for hanging - ≤ 30 for grounding
BODY
  • Body: die-cast aluminium housing
  • Curve configurations: concave 0° / +10°
  • Body colour: black
PHYSICAL
  • IP rating: IP30
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE

Versions

Accessories & Related Products

DXFCM8029
DXFCM8029
(Optional)
Flightcase 8in1 for DELTAX29B
DXHB01
DXHB01
(Optional)
Fly bar for DELTAX29B and DELTAX48T systems, 1 column
DXHB02
DXHB02
(Optional)
Fly bar for DELTAX29B and DELTAX48T systems, 2 column
DXGB01
DXGB01
(Optional)
Ground bar for DELTAX29B and DELTAX48T systems, 1 column
DXGB02
DXGB02
(Optional)
Ground bar for DELTAX29B and DELTAX48T systems, 2 columns
DXBS21
DXBS21
(Optional)
2in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS31
DXBS31
(Optional)
3in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBS41
DXBS41
(Optional)
4in1 back support for DELTAX and GAMMAX series LED wall for ground system fixing
DXBSC
DXBSC
(Optional)
Back plate for DELTAX and GAMMAX series LED wall for ground system fixing
DXCJ03CV
DXCJ03CV
(Optional)
Cabinet curve plate for DELTAX series LED wall, 3° concave
DXCJ05CV
DXCJ05CV
(Optional)
Cabinet curve plate for DELTAX series LED wall, 5° concave
DXCJ10CV
DXCJ10CV
(Optional)
Cabinet curve plate for DELTAX series LED wall, 10° concave
DXXJ
DXXJ
(Optional)
Metal joint to connect 4 x DELTAX/GAMMAX series cabinets, M10 hole for clamp
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
DXDCL01
DXDCL01
(Optional)
Data cable for DELTAX LED display series assembled with RJ45, L.140 cm
DXDCL10
DXDCL10
(Optional)
Data cable for DELTAX LED display series assembled with RJ45, L.10 m
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm
DXACBK
DXACBK
(Optional)
Backup power cable for DELTAX series ledscreen
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDeltax29b_A4_DATASHEET_(IT).pdf(05/05/2021)2MB
Letter datasheetDeltax29b_DELTAPIX_SERIES_BROCHURE.pdf(13/04/2023)9MB
Letter datasheetDeltax29b_A4_DATASHEET_(EN).pdf(20/10/2022)2MB

User manual

File name File size Download
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualDeltax29b_Led_screen_connector_compatibi.pdf(14/10/2025)879KB
User manualDeltax29b_Led_Screen_User_Manual_EN.pdf(21/10/2022)3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DDeltax29b_CAD_2D.dwg(17/05/2021)10MB
Technical drawingDeltax29b_TECHNICAL_DRAWING.pdf(17/05/2021)1MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx(12/07/2023)7MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx(12/07/2023)11MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareHADZ191913-B - 3840Hz(13/11/2025)10KB
SoftwareAUR2C0595A - 3840Hz(13/11/2025)139KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.6.6.0 STABLE 20/06/2022 Definitive Stable Version for batch AUR2C0595A (A5S PLUS)...not for batch HADZ191913-B (A5S).
4.6.1.0 STABLE 14/10/2020 Definitive Stable Version for batch HADZ191913-B (A5S).
