DIGISTRIPIP50
PROLIGHTS

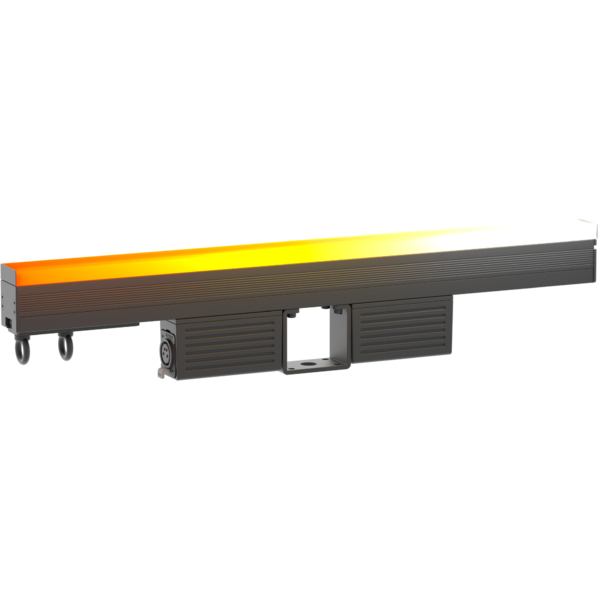

DigiStrip IP50

ORDER CODE: DIGISTRIPIP50

50 cm IP65 outdoor LED video pixel strip with 10 mm pixel pitch

DigiStrip IP50 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). Each 50 cm long strip features 50 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP50 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 40 DigiStrip IP50).

Main features:

  • High-resolution IP65 video pixel batten, featuring 50 LEDs in a row
  • Several optional optical filters delivering a wide range of different looks and finishes
  • Easy setup and wiring though the DigiDriver IP

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 50x0,25W RGB LEDs
  • Luminous flux: without cover: 341 lm - black cover: 45 lm - flat white cover: 173 lm - dome white cover: 220 @Full
  • Lux: without cover: 5 lx - black cover: 1 lx - flat white cover: 2 lx - dome white cover: 1lx @5 m full
  • Other: view angle 100° - driver chip MBI 5043
  • Source life expectancy: > 50.000 h
OPTICS
  • Pixel pitch: 10mm / 0.39''
  • Additional optics: black cover and white dome cover (included)
  • Other: flat white cover (included)
COLOUR SYSTEM
  • Colour mixing: RGB / FC
CONTROL
  • Supported Protocols: Art-Net, sACN, Kling-Net
  • Control units: 40 pcs power & signal under 1 pc DIGIDRIVERIP
  • Art-Net channels: 150ch
  • Pixel control: pixel2pixel control
CONNECTIONS
  • Signal connection: Seetronic XLR 4p IN/OUT connectors
ELECTRICAL
  • Mains power supply: DC 48V
  • Max power consumption (230V): 12,5W
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Housing: Sturdy aluminium profile
  • Finish: black
  • Dimensions (WxHxD): 500x33x114mm / 19.69''x1.3''x4.49''
  • Weight: 1,35kg / 2.98lbs
INSTALLATION
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>DigiDriver</b> IP
DigiDriver IP
(Optional)
Master driver for Digi IP series, Art-Net, Kling-Net, IP65, 550W,
DIGILINKIP
DIGILINKIP
(Optional)
Digi IP series signal 4-pin cable

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDigistripip50_A4_DATASHEET_(IT).pdf(05/05/2021)276KB
Letter datasheetDigistripip50_A4_DATASHEET_(EN).pdf(05/05/2021)269KB

User manual

File name File size Download
User manualDigistripip50_USER_MANUAL_ITEN.pdf(07/07/2022)971KB

DMX chart & personalities

File name File size Download

CAD symbols & drawings

File name File size Download
3D RFADigistripip50_3D.rvt(09/03/2020)367KB
3D SKPDigistripip50_3D.skp(26/03/2020)320KB
2DDigistripip50_CAD_2D.dwg(11/05/2021)1MB
3DDigistripip50_CAD_3D.dwg(18/02/2020)662KB
2D cad symbolsDigistripip50_CAD_2DSYMBOLS.dwg(09/03/2020)57KB
Technical drawingDigistripip50_TECHNICAL_DRAWING.pdf(11/05/2021)176KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)193KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
