ECLDISPLAYCCFC
PROLIGHTS

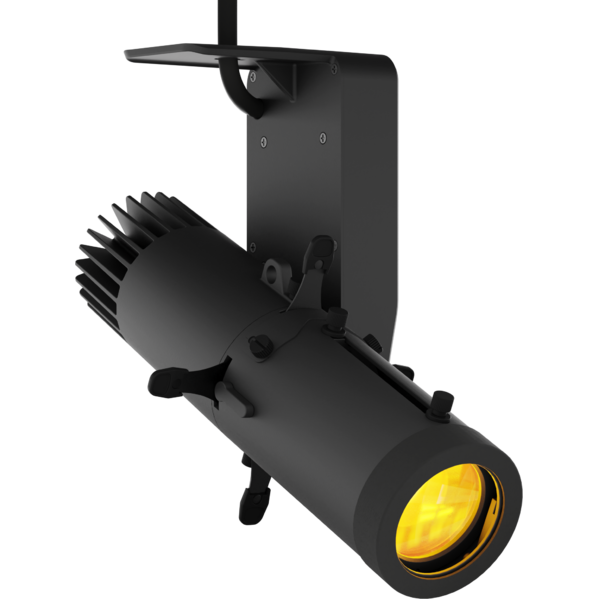

EclDisplay CCFC

40W RGB+WW LED gallery light, Tunable White and Full Colour, constant current to be connected to external PSU & Driver

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CCFC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 4 x 1.4A/4.5V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CCFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Constant Current version to be connected to external PSU and driver (max 4 x 1.4A/4.5V)
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: profile (zoom and static) or wash optics
See variants CONFIGURATOR

PHOTO GALLERY

EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC
EclDisplay CCFC

Technical specifications

LIGHT SOURCE
  • Source: 40W RGB + Warm White LED
  • Luminous flux: (profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402 @Full
  • Lux: (profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
CONNECTIONS
  • Data: screw terminal blocks
ELECTRICAL
  • Constant Current mains: max 4 x 1.4A/4.5V
  • Max power consumption (230V): 30W
  • Output (at 230V): 40 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium
  • Finish: black (RAL 9004) or white (RAL 9010)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 124X200x150mm / 4.88''x5.91''
  • Weight: 1,15kg / 2.54lbs
INSTALLATION
  • Suspension and fixing: hanging / ceiling installation
  • Hardware on-board: lockable tilt with screw
  • Other: 1m cable included - Cable diameter range: 6 - 10 mm
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
Track adapter
Optics
ECLDISPLAYCCFCB
ECLDISPLAYCCFCB
Black
Not Included
Not Included
ECLDISPLAYCCFCW
ECLDISPLAYCCFCW
White
Not Included
Not Included

Accessories & Related Products

<b>EclDisplay</b> Filter
EclDisplay Filter
(Optional)
Medium 3° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter
<b>EclDisplay</b> Filter
EclDisplay Filter
(Optional)
Light 1° frost filters for ECLDISPLAY and ECLMINI series, 87 mm diameter
<b>EclDisplay</b> Filter
EclDisplay Filter
(Optional)
Heavy 10° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter
ECLDISPPRL08B
ECLDISPPRL08B
(Optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black
ECLDISPPHDZL2040W
ECLDISPPHDZL2040W
(Optional)
20° - 40° Zoomable High definition profile lenses for Ecl Display series, white
ECLDISPPHDZL2040B
ECLDISPPHDZL2040B
(Optional)
20° - 40° Zoomable High definition profile lenses for Ecl Display series, black
ECLDISPPRL08W
ECLDISPPRL08W
(Optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white
ECLDISPPRHDL18B
ECLDISPPRHDL18B
(Optional)
18° High definition profile lenses for Ecl Display series, black
ECLDISPPRHDL50W
ECLDISPPRHDL50W
(Optional)
50° High definition profile lenses for Ecl Display series, white
<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclDisplay, black housing
ECLDISPPRHDL50B
ECLDISPPRHDL50B
(Optional)
50° High definition profile lenses for Ecl Display series, black
ECLDISPPRHDL36W
ECLDISPPRHDL36W
(Optional)
36° High definition profile lenses for Ecl Display series, white
ECLDISPPRHDL36B
ECLDISPPRHDL36B
(Optional)
36° High definition profile lenses for Ecl Display series, black
ECLDISPPRHDL18W
ECLDISPPRHDL18W
(Optional)
18° High definition profile lenses for Ecl Display series, white
<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclDisplay, white housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclDisplay, black housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclDisplay, white housing
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(Optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black housing
ECLDISPPRZL1020B
ECLDISPPRZL1020B
(Optional)
Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black
ECLDISPPRZL1020W
ECLDISPPRZL1020W
(Optional)
Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(Optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white housing
<b>EclDisplay</b> CeilingKit
EclDisplay CeilingKit
(Optional)
Ceiling adapter kit for EclDisplay (without flange)
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(Optional)
Half Snoot for EclDisplay, black housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(Optional)
Full Snoot for EclDisplay, black housing
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(Optional)
Half Snoot for EclDisplay, white housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(Optional)
Full Snoot for EclDisplay, white housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(Optional)
Anti-glare louvre for EclDisplay, black housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(Optional)
Anti-glare louvre for EclDisplay, white housing
ECLDISPHNFFB
ECLDISPHNFFB
(Optional)
Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black
ECLDISPHNFFW
ECLDISPHNFFW
(Optional)
Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white
<b>EclDisplay</b> Goboholder
EclDisplay Goboholder
(Optional)
Gobo holder for EclDisplay with manual index gear on board, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(Optional)
Black flange to complete the EclDisplay ceiling adapter kit, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(Optional)
White flange to complete the EclDisplay ceiling adapter kit, white
<b>ToolBox </b> Pro
ToolBox Pro
(Optional)
TOOLbox pro
<b>PowerDrive</b> 50SA-M4Z0X
PowerDrive 50SA-M4Z0X
(Optional)
POWERdrive AC, 50W, DMX/RDM, 4 control channels, constant current, 4x55V outputs
PLCLD88050
PLCLD88050
(Included)
LED driver PVC cable black 8x0,5 mmq D=8 colours, 1 meter lenght
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcldisplayccfc_A4_DATASHEET_(IT).pdf(06/05/2021)3MB
Letter datasheetEcldisplayccfc_A4_DATASHEET_(EN).pdf(20/06/2024)3MB
Tender SpecificationEcldisplayccfc_TENDER_SPECIFICATION.pdf(16/03/2023)3MB

User manual

File name File size Download
User manualEcldisplayccfc_USER_MANUAL_EN.pdf(26/01/2024)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLDISPLAYCCFC_3D_REVIT.zip1MB
3D sketchupECLDISPLAYCCFC_3D_SKETCHUP.zip2MB
2DECLDISPLAYCCFC_2D.zip14MB
3DECLDISPLAYCCFC_3D.zip2MB
2D cad symbolsECLDISPLAYCCFC_2DSYMBOLS.zip207KB
Technical drawingECLDISPLAYCCFC_TECHNICAL DRAWINGS.zip800KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksECLDISPLAYCCFC_SYMBOLS.zip2MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware
