EVO392FL
PROLIGHTS
discontinued

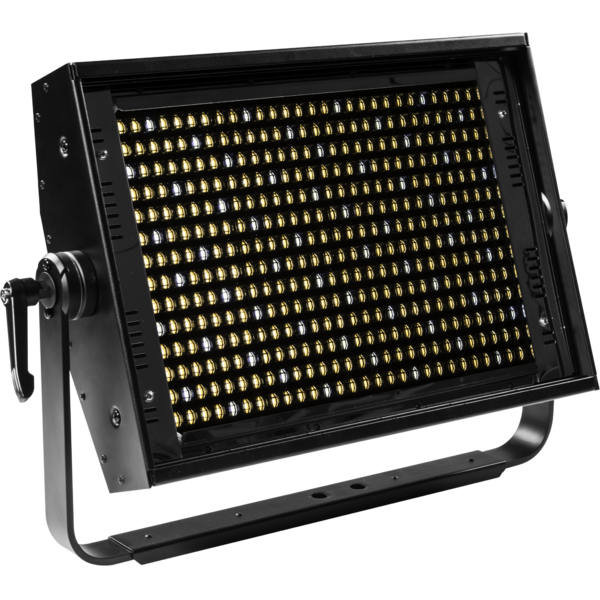

EVO392FL

EVO392FL is a LED projector engineered to exceed conventional fluorescent tube lights (4x55W) in performance and power, creating a real opportunity to replace traditional equipment with LED light sources. EVO392FL is a projector engineered and developed for professional use in movies, television and photographic sets, implementing new possibilities as calibration of white colour temperature via the variable source (WW + CW).
EVO392FL is available in Tungsten (3100K) and Daylight version (5600K) reproducing the projection uniformity and dimmer linearity of conventional projectors, as well as same usage operations making it a user-friendly projector for technical staff.

Main features:

  • 392 LEDs (60mA), to achieve brightness of 4x55 fluorescent fixtures
  • Available in Tungsten (3100 K) and DaYlight (5600K) Color temperature variants
  • No need for dimmers nor lamp replacement, LED lifespan >50.000h
  • Flicker-free for cameras, TV-studios friendly
  • No UV/IR emissions
  • Wide accessory range available

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 392x0,25W Warm White + Cold White LEDs
  • Source CCT: TU 3200K - DY 5600K
  • Luminous flux: TU 3600 lm - DY 3780
  • Lux: TU 1224lx @3 m
  • Lux: DY 1285lx @3 m
  • CRI: TU>92Ra, DY>92
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 53°
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 1 / 2ch
  • Display: LED display user interface
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: Amphenol XLR 3p IN/OUT connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 105W
  • Output (at 230V): 20 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Sturdy aluminium profile
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 557x372x98 mm / 21.93''x14.65''x3.86''
  • Weight: 7kg / 15.43lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and floor positioning

Versions

Code
Col. Temperature
EVO392FLDY
EVO392FLDY (DISCONTINUED)
5600K
EVO392FLTU
EVO392FLTU (DISCONTINUED)
3100K

Accessories & Related Products

EVO392BD
EVO392BD
(Optional)
Barndoor with 4 directional flaps to adjust the light beam, for EVO392FL

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualEvo392fl_USER_MANUAL_ITEN.pdf(21/11/2012)4MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
