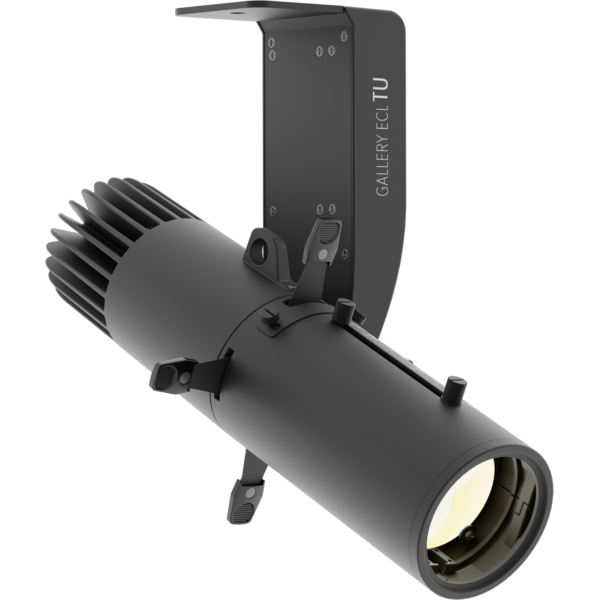

EclGalleryProfile

35W zoomable LED ellipsoidals with static white LED source and framing shutter

EclGalleryProfile is a compact LED ellipsoidal luminaire engineered with white LED engine and available in Tungsten, Neutral and Daylight White variants, all featuring exceptional high CRI. The luminaire is designed with a stunning aesthetics and it offers a total control of the light, performing a linear zoom system from 16° to 36°, framing shutters for an accurate focusing of the light, and gobo mounting option for image projections. EclGalleryProfile is fitted with electronic and PSU on board, allowing to be implemented on lighting tracks simply applying a track adapter and the fixture can be easily controlled by wireless. EclGalleryProfile is truly flexible for any commercials, venues, art-galleries and churches.

Main features:

  • 35W White LED source in multiple variants: Tungsten, Neutral, Daylight
  • 16° to 36° on-board zoom with framing shutter and gobo holder
  • Wireless DMX control and optional track adapters for easy implementation
See variants

PHOTO GALLERY

EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile
EclGalleryProfile

Technical specifications

LIGHT SOURCE
  • Source: 35W high-power white LED
  • Source CCT: (TU) 3.200 K - (NW) 4.000 K - (DY) 5.000K
  • Luminous flux: (16°) (TU) 1'887 lm; (NW) 1'947 lm; (DY) 2'095 @Full
  • Luminous flux: (36°) (TU) 2'150 lm; (NW) 2'236 lm; (DY) 2'425 lm @full
  • Lux: (16°) (TU) 1'209 lx; (NW) 1'324 lx; (DY) 1'782lx @5 m full
  • Lux: (36°) (TU) 371 lx; (NW) 367 lx; (DY) 455lx @5 m full
  • CRI: (TU) >90 - (NW) > 89 - (DY) >80
  • TLCI: (TU) >92 ; (DY) > 67
  • TM30 Rf: (TU) >89 ; (DY) > 80
  • TM30 Rg: (TU) >98 ; (DY) >93
  • Source life expectancy: > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 16° - 36° manual
  • Lens type: high-quality glass lens optics
  • Focus: manual
  • Other: accessory gobo holder for images and texture projection
DYNAMIC EFFECTS
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
GOBOS
  • Gobo size: E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
CONTROL
  • Supported Protocols: W-DMX
  • DMX channels: 1 / 3ch
  • Display: Graphic User Interface
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
CONNECTIONS
  • Power connection: 1,5 metres 3G0,75 bare end connection
  • Wireless Connection: integrated W-DMX receiver
  • Data connection: W-DMX
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 42W
  • Output (at 230V): 38 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004) or white (RAL 9003)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 196x293x378mm / 7.72''x11.54''x14.88''
  • Weight: 2,5kg / 5.51lbs
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
Lumen
Finishing
GALLERYECLBTU
GALLERYECLBTU
3.200 K
90
2'150
Black
GALLERYECLWTU
GALLERYECLWTU
3.200 K
90
2'150
White
GALLERYECLBNW
GALLERYECLBNW
4.000 K
89
2'236
Black
GALLERYECLWNW
GALLERYECLWNW
4.000 K
89
2'236
White
GALLERYECLBDY
GALLERYECLBDY
5.000 K
80
2'425
Black
GALLERYECLWDY
GALLERYECLWDY
5.000 K
80
2'425
White

Accessories & Related Products

NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
GALLERYECLGH
GALLERYECLGH
(Included)
Gobo holder for GALLERYECL profiler series.
Track ADA
Track ADA
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetGalleryecl_A4_DATASHEET_(IT).pdf(06/05/2021)393KB
Letter datasheetGalleryecl_A4_DATASHEET_(EN).pdf(21/08/2023)453KB

User manual

File name File size Download
User manualGalleryeclbdy_USER_MANUAL.pdf(15/03/2021)2MB
User manualGalleryeclbtu_USER_MANUAL.pdf(15/03/2021)2MB
User manualGalleryeclwdy_USER_MANUAL.pdf(15/03/2021)2MB
User manualGalleryeclwtu_USER_MANUAL.pdf(15/03/2021)2MB
User manualGalleryeclbnw_USER_MANUAL.pdf(15/03/2021)2MB
User manualGalleryeclwnw_USER_MANUAL.pdf(15/03/2021)2MB

DMX chart & personalities

File name File size Download
DMX chartGalleryecl_DMX_CHARTS.pdf(27/04/2020)45KB
DMX chartGalleryeclbnw_DMX_CHARTS.pdf(27/04/2020)44KB

GALLERYECLBTU Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

GALLERYECLBNW Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@galleryeclipsenw@1ch.xmlDownload
prolights@galleryeclipsenw@3ch.xmlDownload

GALLERYECLBDY Firmware rev. 1.3

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D revitGALLERYECL_3D_REVIT.zip2MB
3D sketchupGALLERYECL_3D_SKETCHUP.zip514KB
2DGalleryecl_CAD_2D.dwg(27/04/2020)2MB
2D cad symbolsGALLERYECL_2DSYMBOLS.zip180KB
3DGALLERYECL_3D.zip1MB
Technical drawingGalleryecl_TECHNICAL_DRAWING.pdf(27/04/2020)200KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksGALLERYECL_SYMBOLS.zip2MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023 Rev. 1.0
1.4 STABLE 02/12/2019 Improved Display Management
1.3 STABLE 02/07/2018 Improved auto store values time when fixtures lose dmx signal.
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023 Rev. 1.0
1.4 STABLE 30/12/2019 Improved display management Rev. 1.0
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023 Rev. 1.0
1.4 STABLE 30/12/2019 Improved display management Rev. 1.0
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 26/04/2023
Fixed bug:

  • When the light source is on, and remove the DMX signal, the fixture will hold the last setting but after do the Factory Reload, the light is still on.
 Rev. 1.0
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 02/12/2019 Improved Display Management
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 02/12/2019 Improved Display Management
