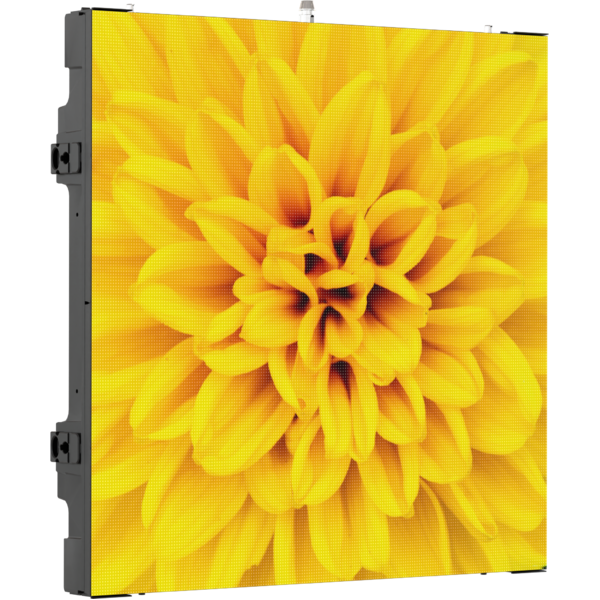

KappaPix 26B1X1BF

ORDER CODE: KAPPAX26B1X1BF

XR/VP 2,6 mm LED screen, 50x50cm tile with Brompton R2 control system

KappaPix 26B is an high standard LED screen for XR & Virtual Production with a 2,6 mm pixel pitch, designed to meet requirements for motion picture and XR studios.
KappaPix 26B uses premium components and it is equipped with Brompton R2 receiver cards on board, achieving >7680Hz Refresh rate, >251Hz image frame rate and up to 16bit grey scale, optimize behavior also in low light application.
The mechanical design of the tiles has been conceived to allow fast single person installation with extra safety & handling features such automatic edge and corner protection, LED module protection.
Panel maintenance has been furtherly enhanced allowing modular and tool free maintenance for LED modules and the PSU unit.
KappaPix 26B can be also curved concave and convex +10° / -5° through high precision curving plates. The cabinet, built into magnesium alloy are exceptionally lightweight with 6.3 kg per panel and 25,2 kg per sqm.

Main features:

  • XR/VP Led screen with R2 Control system and >7680Hz Refresh rate
  • Single person installation, automatic edge & corner protection
  • Fast LED Module and PSU replacement
  • Curving plates concave and convex +10° / -5°
  • Up to 16bit grayscale and 251Hz Image frame rate
See variants CONFIGURATOR

PHOTO GALLERY

KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF
KappaPix 26B1X1BF

Technical specifications

VIDEO
  • Driver chip type: MBI 5264
  • LED source: SMD 1515 full black with anti-reflection coating trattament
  • Pixel pitch: 2.6 mm
  • Panel resolution: 192x192pixels
  • Module resolution: 96x96pixels
  • Luminous flux: 1.200nit
  • Contrast: 6.000:1
  • Grayscale: 16 bit
  • Refresh rate ≥: 7.680Hz
  • Frame rate: 251 Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 147.456LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000 h
ELECTRICAL
  • Power input/output: IP65 Neutrik powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 160W
  • Avg power consumption (panel): 55W
  • Max power consumption (sqm): 640W
  • Avg power consumption (sqm): 220W
  • Standby power consumption (pannello): 55W
  • Max rated current/panel:: AC 220 V / 0.73 A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: R2
  • Control protocol: Brompton
  • Signal input: waterproof Neutrik RJ45
  • Signal output: waterproof Neutrik RJ45
MECHANICS
  • Other specifics: curve configurations with blocks, corner protection, auto-lock mechanics, calibration chip on LDM
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×70.1mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 6,3kg / 13.89lbs
  • Weight per square meter: 25,2kg / 55.56lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Die-cast magnesium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex accessories up to +10°, concave accessories down to -5° - see available options
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, cURus

Versions

Accessories & Related Products
