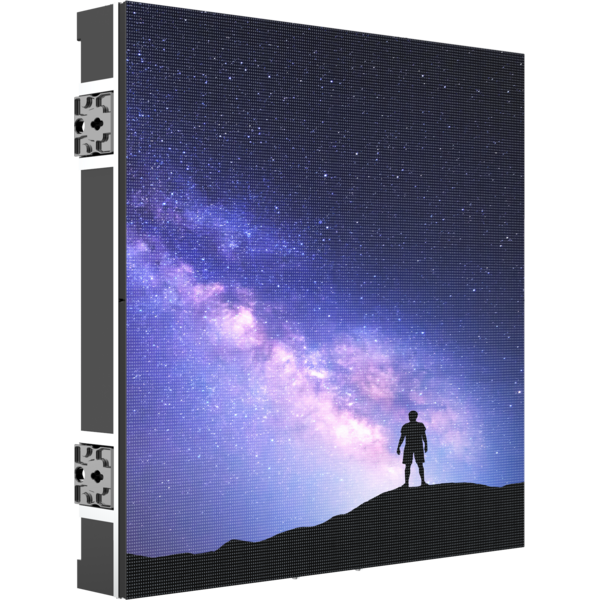

OmegaPix 39T
ORDER CODE: OMEGAX39T3,9 mm pixel pitch outdoor rental LED screen
OmegaPix 39T is a revolutionary outdoor 3,9 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.
Mechanical / assembly features:
- Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
- Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
- Climbable, designed for a quick maintenance access
- Hot swapping of the back panel to replace PSU & electronics
- Assisted mounting magnets allowing for a 1 man quick setup
- Ground Stacking accessories available
- Fly bar for both hanging and ground stacking
- Corner protection for safe transport in case
- Velcroed edges to avoid any gaps
- Fly bars are suitable for both hanging or ground stacking application
Components/Electronic features:
- Premium components
- Module with memory to store calibration database
- MBI 5151 ICs
- Black&White& White mask for superior contrast and rentability
- 18 bit+ greyscale (4x high than market average)
- Rotation function enabled
- New Novastar A8s receiver
- IP powerCon in/out
- IP dataCon in/out
- CE, EMC, UL approved
Image Quality:
- New Novastar A8s receiving card
- 18 bit+ Greyscale, 4x higher than market average. Effectively improves greyscale performance under low-brightness, showing more exquisite and expressive images.
- Clearview technology adjusts the texture, size and contrast of images in different areas to further enhance the image details.
- Smart gamma correction: gamma correction is automatically applied according to the display brightness thus achieving a better greyscale performance and providing clearer pictures.
- Rotation enabled: rotation of panels recognized by software @ 360°
- RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
Main features:
- 3,9 mm pixel pitch outdoor rental LED screen
- Seamless 90° angles
- Curve configurations, concave and convex
- Fly bar hanging/stacking
- New Novastar A8s with 18bit+, Clearview and image rotation
