OMEGAX48T
PROLIGHTS
discontinued

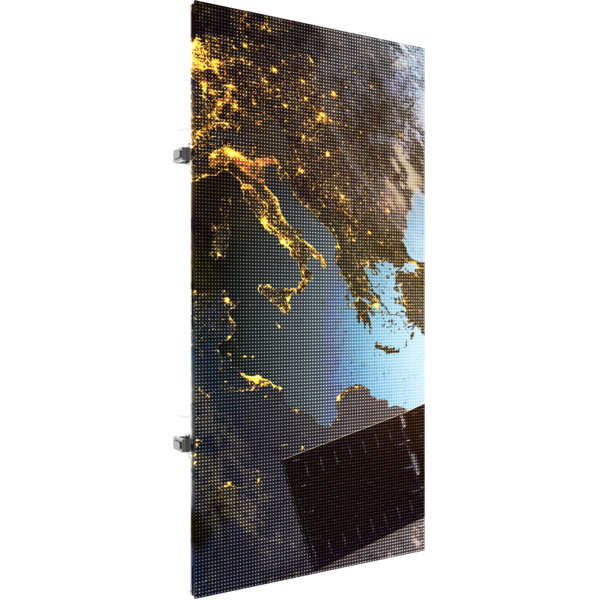

OmegaPix 48T

ORDER CODE: OMEGAX48T

4,8 mm pixel pitch outdoor rental LED screen

OmegaPix 48T is a revolutionary outdoor 4,8 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.

Mechanical/Assembly features:

  • Curve configurations both concave and convex through curving mounting plates +15° / -15° onboard
  • Hot swapping of the back panel to replace PSU & electronics
  • Fast lock connections for LDMs swapping
  • Assisted mounting magnets allowing for a 1 man quick setup
  • Ground Stacking accessories available
  • Velcro on edges to avoid any gaps

Main features:

  • 4,8 mm pixel pitch outdoor rental LED screen
  • Curve configurations, concave and convex
  • Fly bar hanging/stacking
  • New Novastar A8s with 18bit+, Clearview and image rotation

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: MBI 5252
  • LED source: Kinglight SMD2525
  • Pixel pitch: 4.8mm / 0.19''
  • Panel resolution: 104x208pixels
  • Module resolution: 52x104pixels
  • Luminous flux: 4.000nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 2.880Hz
  • Drive Mode: 1/13 scan, constant current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 43.264LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000 h
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 400W
  • Avg power consumption (panel): 133W
  • Max power consumption (sqm): 800W
  • Avg power consumption (sqm): 266W
  • Standby power consumption (pannello): 35W
  • Max rated current/panel:: AC 220 V / 1,6 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S
  • Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: IP data Seetronic IN
  • Signal output: IP data Seetronic OUT
MECHANICS
  • Other specifics: curve configurations, rear panel swapping, velcro strips for gapless mounting
  • Magnetic LED modules: not magnetic, removible by joint
  • Module size (WxH): 250x500mm / 9.84''x19.69''
  • Panel size(WxHxD): 500x1.000x76mm / 19.69''x0.04''x2.99''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 12kg / 26.46lbs
  • Weight per square meter: 24kg / 52.91lbs
  • Hanging Panel Quantity ≤: 10
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: mechanics on board, -15° to +15°, adjustable in 2.5° steps
CERTIFICATIONS / REPORTS
  • Compliance: CE, EMC, UL

Versions

Accessories & Related Products

OXFCL48
OXFCL48
(Optional)
5in1 flightcase for OMEGAX48T
OXDCL01
OXDCL01
(Optional)
Data cable for OMEGAX LED display series assembled with RJ45, Seetronic, IP65, L.1,4 m
OXACL01
OXACL01
(Optional)
Power cable for LED display series, Seetronic, L.140 cm
OXHGB4802
OXHGB4802
(Optional)
Fly bar and ground bar for OMEGAX48 systems, 2 columns
OXCJB48
OXCJB48
(Optional)
Ground system back horizontal support for OMEGAX48T LED wall ground system
OXBS48
OXBS48
(Optional)
Vertical back support for OMEGAX48T LED wall for ground system fixing
OXBSC
OXBSC
(Optional)
Back support connectors
OXXJ48
OXXJ48
(Optional)
Metal joint used to connect 4 pcs OMEGAX48T cabinets, M10 hole for clamp
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetOmegax48t_A4_DATASHEET_(IT).pdf(05/05/2021)1MB
Letter datasheetOmegax48t_A4_DATASHEET_(EN).pdf(05/05/2021)1MB
Letter datasheetOmegax48t_OMEGAPIX_SERIES_BROCHURE.pdf(13/04/2023)12MB

User manual

File name File size Download
User manualOmegax48t_Led_screen_connector_compatibi.pdf(14/10/2025)879KB
User manualOmegax48t_Led_Screen_User_Manual_EN.pdf(21/10/2022)3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DOmegax48t_CAD_2D.dwg(17/05/2021)4MB
Technical drawingOmegax48t_TECHNICAL_DRAWING.pdf(17/05/2021)410KB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_23_LIBRARY.vwx(12/07/2023)7MB
VectorWorksPROLIGHTS_VIDEO_VECTORWORKS_18_LIBRARY.vwx(12/07/2023)11MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareHADZ181449 - 2880 Hz.zip(03/03/2025)9KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.5.0.56 STABLE 01/02/2017 Definitive Stable Version.
