SUNPIX12TRI
PROLIGHTS
discontinued

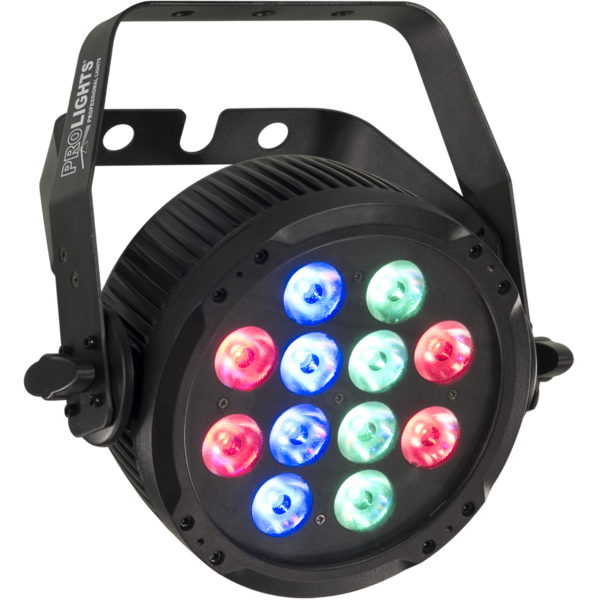

Sunpix 12TRI

ORDER CODE: SUNPIX12TRI

Main features:

    SUNPIX12TRI is a super-slim pixel-mapping ParLED for professional use,  equipped with 12x3W high efficiency RGB/FC LEDs. SUNPIX12TRI is the most innovative projector in its category, offering in the pixel2pixel DMX control mode the ability to control independently each LED to create eye-candy effects, video and pixel mapping animations. SUNPIX12TRI can also be used as a powerful colorchanger able to create bright, intense and saturated colors. The versatility of this projector makes it ideal for Rental touring use but also as plug-n-play solution for the club and disco applications through the many   auto-show pre-stored into the unit.

    Light source and optics
    • 12 x 3W RGB/FC high-power LED
    • Beam angle: 20°
    • Field angle: 34°
    • white color temperature preset: 3200K~10'000K
    • Color synthesis: RGB/FullColor color mixing (>16 million colors)
    • LEDs average life span: > 50.000 hours

    Electronics and features
    • User panel through 4Char LED display
    • Several DMX selectable configurations (3, 9, 12, 36 channels) for advanced or basic controlling
    3 channels: RGB
    9 channels: Dimmer, RGB, mcro, strobe, auto, speed, dimmer curve
    12 channels: RGB, quadrant cont.
    36 channels: 12 x (RGB)
    • Dimmer curve setting: 5 selectable configurations
    • Auto mode: built-in programs with execution speed adjustment
    • Static color mode: selection of static color
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)

    Structure and power supply
    • Sturdy die-cast aluminium body : IP54
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • IN/OUT wiring signal and power connections through XLR3p/VDE secure-lock
    • Average power consumption: 45W (up to 18 projectors output)
    • Weight: 3,1 kg
    • Dimensions (WxHxD): 260x195x220 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualSunpix12tri_USER_MANUAL_ITEN.pdf(23/10/2013)3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3DSunpix12tri_CAD_3D.dwg(21/08/2018)20MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
