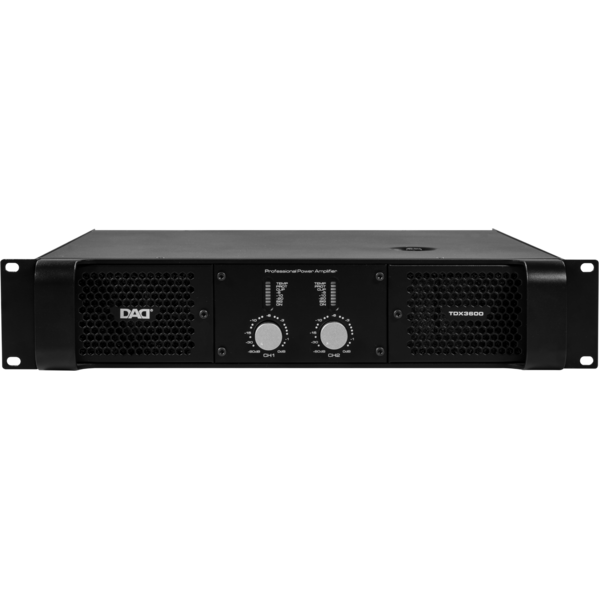

TDX3600
DAD
discontinued

TDX3600

ORDER CODE: TDX3600

The TDX amplifier series employs amplification technology in Class I and power stage with a toroidal transformer. The operation in Class I is based on a continuous and automatic adjustment of the value of the supply voltage of the final stage. This optimizes the efficiency up to 85%, reducing the weight with the same power and heat dissipation. The models of the TDX series are able to operate with loads from 2Ohm and are equipped with an extensive set of protection circuits to satisfy the higher reliability parameters with fixed and mobile high-quality profile sonorizations.

Main features:

  • The first model of TDX series, with single channel power of 850/1350/1850 W 8/4/2 Ohm
  • Bridge mode power:3600 W 4 Ohm
  • These specifications make TDX3600 suitable for professional full-range loudspeakers and MF/HF sections of multi-amplified systems requiring wide dynamics and advanced performance.

PHOTO GALLERY

Technical specifications

AMPLIFIER
  • Channels: 2
  • Circuit class: analog I class
OUTPUT
  • Single channel power: 850/1350/1850 8/4/2 Ohm
  • Bridge mode power: 3600 4 Ohm
AUDIO SPECIFICATIONS
  • Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.05%
  • Damping factor: >300
  • Input impedance: 10kΩ
  • Signal/Noise rate: >100dB
POWER SUPPLY STAGE
  • Type: Trasformer
  • Operating voltage/frequency: 220 V ±10%, 50Hz
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
  • Input: Clip/limit, progressive volume
FUNCTIONS
  • Input mode: stereo, parallel, bridge / limiter
  • Input sensitivity/gain: 1Vrms/32dB/38dB
INDICATORS
  • Indicators: 2 x LED bar - signal level, and over temperature protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR in/out
  • Output signal: 2 x 4 pole, binding post
  • Power connection: terminal with wire
PHYSICAL
  • Cooling: forced-air with low-noise fan
  • Dimensions (WxHxD): 483x89x451mm / 19.02''x3.5''x17.76''
  • Weight: 18.20kg / 40.12lbs
INSTALLATION
  • Rack unit: 2

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualTdx3600_USER_MANUAL_ITEN.pdf(23/04/2019)3MB
