TOURING12MP
DAD
end of life

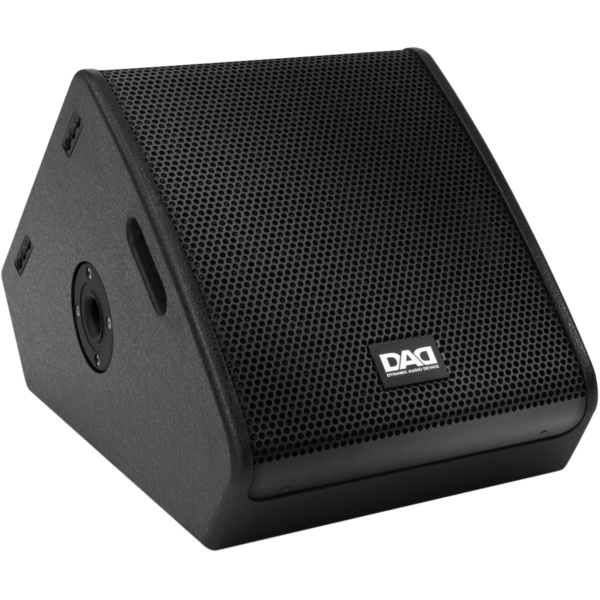

TOURING12MP

ORDER CODE: TOURING12MP

Passive stage-monitor, coaxial design, 2-way 350 W AES,130db SPL

Main features:

  • Low frequency: 12'' neodymium woofer / 3''v.c.
  • High frequency: 1.4'' neodymium driver/3''v.c.
  • Frequency response: 80-18000 Hz (±3dB)
  • Excellent clarity in the monitoring of voice and music for live and recorded performances
  • Installed into theatres and congress halls owing to excellent acoustic performance
  • Birch plywood enclosure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive stage monitor, coaxial design
COMPONENTS
  • Low frequency: 12'' neodymium woofer / 3'' v.c.
  • High frequency: 1.4'' neodymium driver / 3'' v.c.
FEATURES
  • AES/program power: 350/700W
  • SPL max: 130dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 99dB
  • Impedance: 8 Ohm
  • SPL cont/peak: 124/130dB @1m (free field)
  • Frequency response: 80-18000Hz (±3dB)
  • Coverage angle HxV: 60x40°
  • Cross over frequency: 1400Hz
  • Protection: H.F. signal compression
  • Recommended amplifier up to: 700W /8Ohm
INPUT/OUTPUT CONNECTORS
  • Input signal: Neutrik NL4 IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, fly track, 35 mm pole mount
  • Angle: 50° monitor applications
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 430x410x558mm / 16.93''x16.14''x21.97''
  • Weight: 16kg / 35.27lbs
