UNIURM3P19CI1X1UB
UNILUMIN

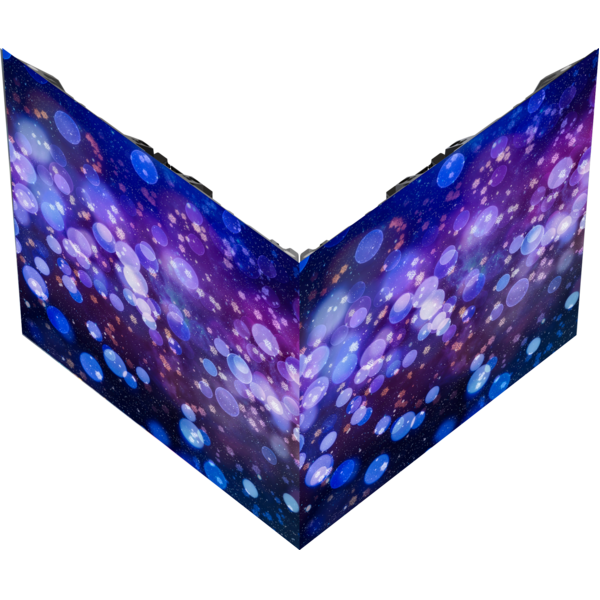

URMIII P1.9 U-Shield XC indoor full black new

ORDER CODE: UNIURM3P19CI1X1UB

Indoor LED wall module, U-Shield 1515 BF, XC ver., p.1,9mm, 50x50cm, 256x256pix, 1000nit, 7,2kg

The URMIII P1.9 U-Shield XC is an indoor rental LED display designed for events, touring productions, and creative installations that demand high image quality and versatility. With a 1.9 mm pixel pitch and a density of 262,144 pixels/m², it delivers sharp, detailed visuals perfectly suited for close viewing.

With 1,000 nits brightness and a 5,000:1 contrast ratio, it ensures vivid, realistic content reproduction, while the high 7,680 Hz refresh rate guarantees smooth, flicker-free playback — ideal for broadcast and multimedia applications.

Specially developed for creative setups, the cabinet supports unique configurations such as cubes and corners, along with concave and convex curved designs up to ±10°. Its die-cast aluminum frame, weighing only 7.2 kg, combines durability with light weight, and front/rear maintenance access simplifies operations in live and rental scenarios.

With its modular design, low typical power consumption, and long-lasting build quality, the URMIII P1.9 U-Shield XC is the ideal solution for trade shows, concerts, immersive events, and stage applications.

Main features:

  • High definition: 1.9 mm pixel pitch for sharp, detailed images.
  • Brilliant brightness: 1,000 nits for vivid and engaging visuals.
  • Absolute smoothness: 7,680 Hz refresh rate for flawless playback.
  • Contrast and consistency: 5,000:1 ratio with wide 160°/160° viewing angles.
  • Creative freedom: supports cubes, corners, and curves up to ±10°.
  • Lightweight and robust: die-cast aluminum cabinet weighing only 7.2 kg.
  • Simplified maintenance: full front and rear service access.
  • Efficiency and durability: low power consumption and long-lasting design.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: NT 27052
  • LED source: U-Shield 1515 mask-free design
  • Pixel pitch: 1.9 mm
  • Panel resolution: 256x256pixels
  • Module resolution: 128x128pixels
  • Luminous flux: 1000nit
  • Contrast: 5.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 262.144LED/sqm
ELECTRICAL
  • Power input/output: Seetronic powerCON IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 35W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 140W
  • Standby power consumption (pannello): 25W
  • Max rated current/panel:: AC220V / 0.6A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500x73mm / 19.69''x2.87''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7,2kg / 15.87lbs
  • Weight per square meter: 28,8kg / 63.49lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex and concave -10° / +10°
CERTIFICATIONS / REPORTS
