UNIURM3P19SI1X1HB
UNILUMIN

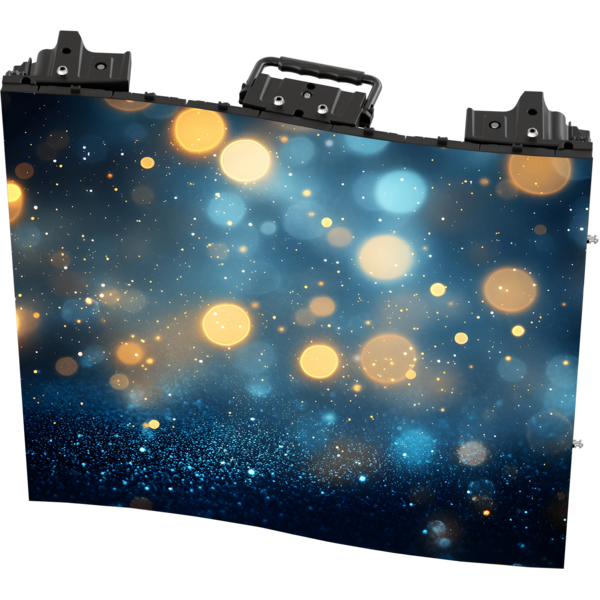

URMIII P1.9 HOB XS indoor full black new

ORDER CODE: UNIURM3P19SI1X1HB

Indoor LED wall module, SMD1212 BF, HOB XS ver., p.1,9mm, 50x50cm, 256x256pix, 800nit, 7,9kg

The URMIII P1.9 HOB XS is a high-performance indoor rental LED display, designed for live events, touring productions, and creative installations that demand top visual quality and maximum flexibility.

With a 1.9 mm pixel pitch and a density of 262,144 pixels/m², it delivers sharp, detailed visuals even at close viewing distances. Powered by 3-in-1 Black SMD technology, it provides deeper blacks and richer colors, while 800 nits brightness and a 3,000:1 contrast ratio ensure vivid and realistic content. Its 7,680 Hz refresh rate guarantees flicker-free, smooth playback, ideal for broadcast and multimedia environments.

Built from die-cast aluminum, each cabinet weighs just 7.9 kg and combines durability with practicality. Supporting curves up to ±45°, it enables creative setups such as concave, convex, and cylindrical shapes (a minimum diameter of 1.27 m can be achieved with only 8 cabinets). Rear maintenance access and a modular design make the URMIII P1.9 HOB XS ideal for fast, secure installations.

With low typical power consumption and a rugged, reliable build, this display ensures consistent performance and long-term durability even in demanding rental environments.

Main features:

  • High definition: 1.9 mm pixel pitch for sharp and detailed visuals.
  • Brilliant brightness: 800 nits with vivid, true-to-life colors.
  • Absolute smoothness: 7,680 Hz refresh rate for flawless playback.
  • Contrast and consistency: 3,000:1 ratio with 160°/160° viewing angles.
  • Creative freedom: supports curves up to ±45° for concave, convex, or cylindrical designs.
  • Lightweight and robust: die-cast aluminum cabinet weighing just 7.9 kg.
  • Dynamic configurations: perfect for “S-shaped” setups and original stage designs.
  • Simplified maintenance: rear access for quick, efficient servicing.
  • Efficiency and durability: low power consumption and rugged build for intensive use.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: SMD 1212 full black
  • Pixel pitch: 1.9 mm
  • Panel resolution: 256x256pixels
  • Module resolution: 256x64pixels
  • Luminous flux: 800nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/32 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 262.144LED/sqm
ELECTRICAL
  • Power input/output: Seetronic powerCON IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 120W
  • Avg power consumption (panel): 35W
  • Max power consumption (sqm): 480W
  • Avg power consumption (sqm): 140W
  • Standby power consumption (pannello): 18W
  • Max rated current/panel:: AC220V / 0.6A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~80 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 500x125mm / 19.69''x4.92''
  • Panel size(WxHxD): 500×500x80mm / 19.69''x3.15''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7,9kg / 17.42lbs
  • Weight per square meter: 31,6kg / 69.67lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex and concave -45° / +45°
CERTIFICATIONS / REPORTS
  • Compliance: TUV-CE/CB/FCC/IC/UL

Versions

Accessories & Related Products

<b>URMIII</b> Flight case 10-in-1
URMIII Flight case 10-in-1
(Optional)
Flightcase 10 in 1 for URMIII series

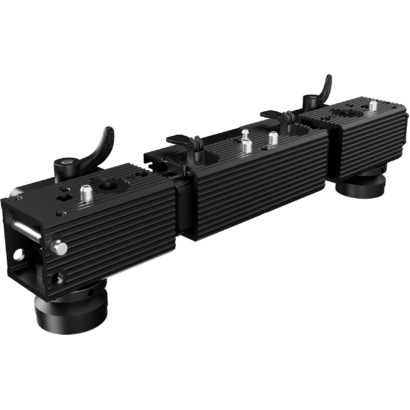

<b>URMIII</b> XS Fly / Ground bars
URMIII XS Fly / Ground bars
(Optional)
Fly bar / ground bar for URMIII XS indoor systems
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
<b>URMIII</b> Indoor Power cables
URMIII Indoor Power cables
(Optional)
Power cable for URMIII Indoor LED Display series, Seetronic, L.1 m
<b>URMIII</b> Indoor Power cables
URMIII Indoor Power cables
(Optional)
Power cable for URMIII Indoor LED Display series, Seetronic, L.10 m
<b>URMIII</b> Indoor Data cables
URMIII Indoor Data cables
(Optional)
Data cable for URMIII LED Indoor Display series assembled with RJ45, L 1 m
<b>URMIII</b> Indoor Data cables
URMIII Indoor Data cables
(Optional)
Data cable for URMIII Indoor LED Display series assembled with RJ45, L 10 m
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetUniurm3p19si1x1hb_A4_DATASHEET_(EN).pdf(16/04/2026)1MB

User manual

File name File size Download

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DUniurm3p19si1x1hb_CAD_2D.dwg(17/11/2025)1MB
Technical drawingUniurm3p19si1x1hb_TECHNICAL_DRAWING.pdf(17/11/2025)457KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
