UNIURM3P390O1X20W
UNILUMIN

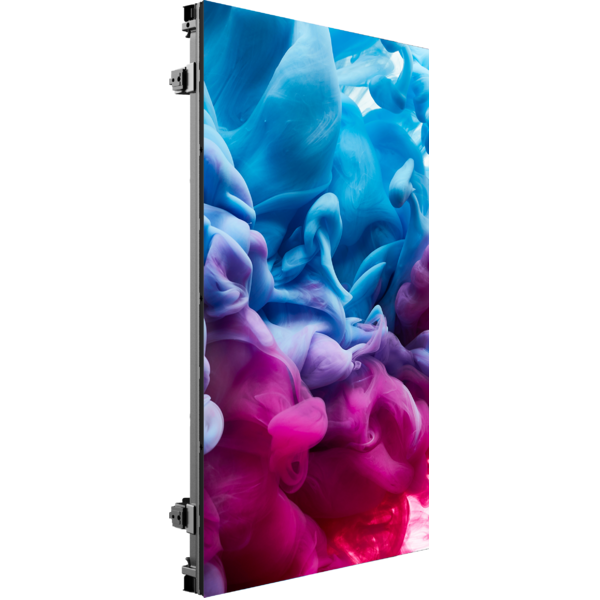

URMIII P3.9 50×100 cm outdoor white face new

ORDER CODE: UNIURM3P390O1X20W

Outdoor LED wall module, SMD1921 WF, p.3,9mm, 50x100cm, 128x256pix, 4500nit, 13,2kg

The URMIII P3.9 50×100 cm is a high-performance outdoor rental LED display, designed for large-scale events, concerts, and temporary installations that demand maximum visibility, durability, and fast setup.

With a 3.9 mm pixel pitch and a density of 65,536 pixels/m², it delivers crisp, detailed visuals ideal for medium to long viewing distances. Its 3-in-1 SMD technology ensures vivid colors and uniform blacks, while 4,500 nits brightness and a 3,000:1 contrast ratio guarantee excellent readability even under direct sunlight. The ultra-high 7,680 Hz refresh rate provides flicker-free, smooth playback, making it perfect for broadcast and live video applications.

Each cabinet, built from die-cast aluminum, measures 500×1000×71 mm and weighs 13.2 kg, offering both strength and practicality. The click-lock system allows single-operator installation, while reinforced corners enhance safety. With IP65 protection, the display withstands dust, rain, and harsh outdoor conditions. Supporting concave and convex curves up to ±10°, it also enables creative and dynamic stage setups.

The URMIII P3.9 50×100 cm combines efficiency, high performance, and durability, making it the ideal choice for outdoor rental applications and touring productions.

Main features:

  • Outdoor definition: 3.9 mm pixel pitch for sharp visuals at distance.
  • High brightness: up to 4,500 nits for perfect visibility in daylight.
  • Smooth playback: 7,680 Hz refresh rate for stable, flicker-free performance.
  • Vivid contrast and colors: 3,000:1 ratio with SMD technology.
  • Robust design: 500×1000 mm die-cast aluminum cabinet, 13.2 kg weight.
  • Quick installation: click-lock system for fast setup by a single operator.
  • Advanced protection: IP65 weatherproofing and reinforced corners.
  • Creative versatility: supports concave and convex curves up to ±10°.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: SMD1921 black frame and white face
  • Pixel pitch: 3.9 mm
  • Panel resolution: 128×256pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 4.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65.536LED/sqm
ELECTRICAL
  • Power input/output: Seetronic powerCON IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 270W
  • Avg power consumption (panel): 90W
  • Max power consumption (sqm): 540W
  • Avg power consumption (sqm): 180W
  • Standby power consumption (pannello): 18W
  • Max rated current/panel:: AC220V / 14.9A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×1.000×71mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 13,2kg / 29.1lbs
  • Weight per square meter: 52.8kg / 116.4lbs
  • Hanging Panel Quantity ≤: 10 for hanging and 6 for stacking
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex and concave -10° / +10°
CERTIFICATIONS / REPORTS
  • Compliance: TUV-CE/CB/FCC/IC/UL

Versions

Accessories & Related Products

<b>URMIII</b> P3.9 XS outdoor white face
URMIII P3.9 XS outdoor white face
(Optional)
Outdoor LED wall module, SMD1921 WF, XS ver., p.3,9mm, 50x50cm, 128x128pix, 4500nit, 7kg
<b>URMIII</b> P3.9 XC outdoor white face
URMIII P3.9 XC outdoor white face
(Optional)
Outdoor LED wall module, SMD1921 WF, XC ver., p.3,9mm, 50x50cm, 128x128pix, 4500nit, 7,8kg
<b>URMIII</b> Flight case 5-in-1
URMIII Flight case 5-in-1
(Optional)
Flightcase 5 in1 for URMIII series
<b>URMIII</b> windframe fly bar
URMIII windframe fly bar
(Optional)
Dedicated fly bar for URMIII 500×1000 mm for the wind-resistant frame systems
<b>URMIII</b> light windframe
URMIII light windframe
(Optional)
URMIII 500×1000 mm light wind-resistant frame
<b>URMIII</b> heavy windframe
URMIII heavy windframe
(Optional)
URMIII 500×1000 mm heavy wind-resistant frame
<b>URMIII</b> Fly / Ground bars
URMIII Fly / Ground bars
(Optional)
Fly bar / ground bar for URMIII systems, 1 column
<b>URMIII</b> Fly / Ground bars
URMIII Fly / Ground bars
(Optional)
Fly bar / ground bar for URMIII systems, 2 columns
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
SXXJ
SXXJ
(Optional)
Metal joint used to connect 4 pcs SIGMAX series cabinets
OXXJ
OXXJ
(Optional)
Metal joint used to connect 4 pcs OMEGAX or SIGMAX cabinets, M10 hole
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
OXFCIS100
OXFCIS100
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen, 100cm
OXFCIS200
OXFCIS200
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm
OXFCSP
OXFCSP
(Optional)
Spare part flightcase for OMEGAX-DELTAX series LED-display
<b>URMIII</b> Outdoor Power cables
URMIII Outdoor Power cables
(Optional)
Power cable for URMIII Outdoor LED Display series, Seetronic, L.1 m
<b>URMIII</b> Outdoor Power cables
URMIII Outdoor Power cables
(Optional)
Power cable for URMIII Outdoor LED Display series, Seetronic, L.10 m
<b>URMIII</b> Outdoor Data cables
URMIII Outdoor Data cables
(Optional)
Data cable for URMIII Outdoor LED Display series assembled with RJ45, L 1 m
<b>URMIII</b> Outdoor Data cables
URMIII Outdoor Data cables
(Optional)
Data cable for URMIII Outdoor LED Display series assembled with RJ45, L 10 m
FMTOOL
FMTOOL
(Optional)
Front maintenance tool for OMEGAX-DELTAX series LED screens (INDOOR)
MRTOOL
MRTOOL
(Optional)
Mask Replacement TOOL for OMEGAX26B and OMEGAX26BE

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetUniurm3p390o1x20w_A4_DATASHEET_(EN).pdf(16/04/2026)1MB

User manual

File name File size Download
User manualUniurm3p390o1x20w_USER_MANUAL_EN.pdf(03/10/2025)6MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DUniurm3p390o1x20w_CAD_2D.dwg(17/11/2025)2MB
Technical drawingUniurm3p390o1x20w_TECHNICAL_DRAWING.pdf(17/11/2025)705KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareAUR2F3912,2025-09/04,50001971(09/12/2025)255KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
4.9.2.0 STABLE 09/10/2025 Stable release.
