UNIURM3P39CO1X10B
UNILUMIN

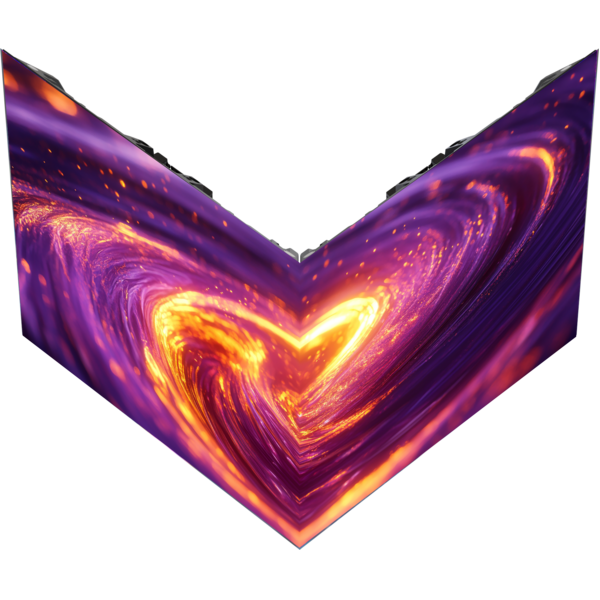

URMIII P3.9 XC outdoor full black new

ORDER CODE: UNIURM3P39CO1X10B

Outdoor LED wall module, SMD1921 BF, XC ver., p.3,9mm, 50x50cm, 128x128pix, 4000nit, 7,8kg

The URMIII P3.9 XC is an outdoor rental LED display, specifically designed for cube, corner, and creative stage applications, combining outstanding image quality with maximum design flexibility.

With a 3.9 mm pixel pitch and a density of 65,536 pixels/m², it delivers sharp, detailed visuals even at long viewing distances. Its 4,000 nits brightness and 6,000:1 contrast ratio ensure vivid, highly visible content even under direct sunlight, while the 7,680 Hz refresh rate guarantees smooth, flicker-free playback, ideal for broadcast and live video setups .

Each cabinet, compact (500×500×74 mm) and built from die-cast aluminum, weighs 7.8 kg and offers both strength and practicality. Designed for compatibility with other URMIII modules, it supports both front and rear maintenance. With IP65 protection, it withstands rain, dust, and harsh outdoor conditions, while concave and convex curves up to ±10° provide additional creative freedom.

The URMIII P3.9 XC is the perfect solution for outdoor productions, complex stage setups, and high-impact installations.

Main features:

  • High-definition outdoor: 3.9 mm pixel pitch for crisp and detailed visuals.
  • High brightness: up to 4,000 nits for perfect daylight visibility.
  • Smooth playback: 7,680 Hz refresh rate for stable, flicker-free images.
  • Vivid contrast and colors: 6,000:1 ratio with SMD technology.
  • Lightweight and robust cabinet: die-cast aluminum, 7.8 kg.
  • Special applications: perfect for cubes, corners, and mixing with other URMIII modules.
  • Simplified maintenance: full front and rear access.
  • Advanced protection: IP65 weatherproofing for dust and rain.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: Kinglight SMD1921 full black
  • Pixel pitch: 3.9 mm
  • Panel resolution: 128×128pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 4.000nit
  • Contrast: 6.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65.536LED/sqm
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 140W
  • Avg power consumption (panel): 45W
  • Max power consumption (sqm): 560W
  • Avg power consumption (sqm): 180W
  • Standby power consumption (pannello): 12W
  • Max rated current/panel:: AC220V / 0.7A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A10S PRO
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration), Dynamic Booster and NCP file support
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Other specifics: curve configurations (mechanics on board), bottom protection, auto-lock mechanics
  • Magnetic LED modules: available
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500x74mm / 19.69''x2.91''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7,8kg / 17.2lbs
  • Weight per square meter: 31,2kg / 68.78lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium housing
  • Finish: black
INSTALLATION
  • Curve configurations: convex and concave -10° / +10°
CERTIFICATIONS / REPORTS
  • Compliance: TUV-CE/CB/FCC/IC/UL
