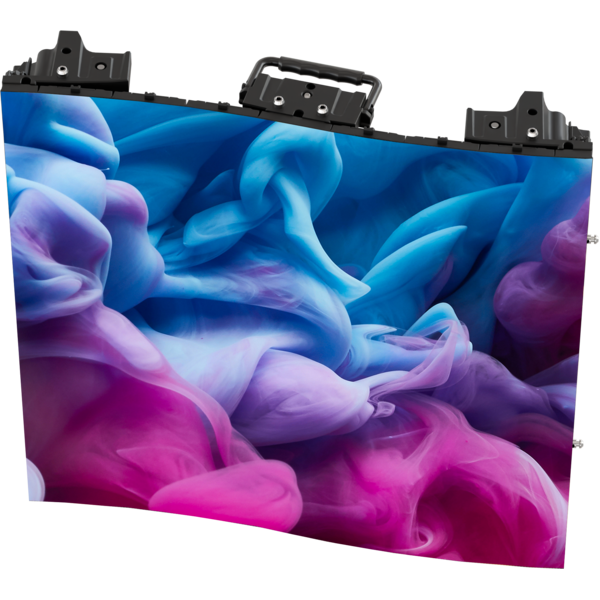

UNIURM3P39SO1X10W
UNILUMIN

URMIII P3.9 XS outdoor white face new

ORDER CODE: UNIURM3P39SO1X10W

Outdoor LED wall module, SMD1921 WF, XS ver., p.3,9mm, 50x50cm, 128x128pix, 4500nit, 7kg

The URMIII P3.9 XS is an innovative outdoor rental LED display, engineered to deliver maximum creative flexibility for live events, shows, and temporary installations.

With a 3.9 mm pixel pitch and a density of 65,536 pixels/m², it provides sharp, detailed visuals ideal for medium to long viewing distances. Offering 4,500 nits brightness and a 3,000:1 contrast ratio, content remains vivid and highly visible even in direct sunlight. The 3,840 Hz refresh rate ensures smooth, flicker-free playback, making it perfect for video and broadcast applications.

Each cabinet, built from die-cast aluminum, measures 500×500×78 mm and weighs only 7 kg, combining strength with portability. Its standout feature is the ability to support curves up to ±90°, enabling unique and immersive designs: just 4 cabinets are enough to create a cylinder with a minimum 0.6 m diameter, ideal for dynamic stage setups. With IP65 protection, it withstands rain, dust, and demanding outdoor conditions.

With a modular, flexible design, the URMIII P3.9 XS is the ultimate choice for reliable, energy-efficient, and boundary-pushing visual experiences.

Main features:

  • Outdoor definition: 3.9 mm pixel pitch for clear, sharp visuals at distance.
  • High brightness: up to 4,500 nits for daylight visibility.
  • Stable smoothness: 3,840 Hz refresh rate for flicker-free playback.
  • Vivid contrast and colors: 3,000:1 ratio with SMD technology.
  • Lightweight and robust: die-cast aluminum cabinet weighing only 7 kg.
  • Unlimited creativity: supports curves up to ±90° and 0.6 m diameter cylinders with 4 cabinets.
  • Advanced protection: IP65 rating against dust and rain.

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: ICND 1065S
  • LED source: SMD1921 black frame and white face
  • Pixel pitch: 3.9mm / 0.15''
  • Panel resolution: 128×128pixels
  • Module resolution: 128x24pixels
  • Luminous flux: 4.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 7.680Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65.536LED/sqm
ELECTRICAL
  • Power input/output: Seetronic powerCON IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 150W
  • Avg power consumption (panel): 50W
  • Max power consumption (sqm): 600W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 12W
  • Max rated current/panel:: AC220V / 0.7A
  • Working temperature: -10°C / +45°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: Seetronic RJ45
  • Signal output: Seetronic RJ45
MECHANICS
  • Magnetic LED modules: available
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Module size (WxH): 500x62.5mm / 19.69''x2.46''
  • Panel size(WxHxD): 500×500x78mm / 19.69''x3.07''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 7kg / 15.43lbs
  • Weight per square meter: 28kg / 61.73lbs
  • Hanging Panel Quantity ≤: 20 for hanging and 12 for stacking
BODY
  • Body: die-cast aluminium housing
  • Curve configurations: convex and concave -90° / +90°
  • Body colour: black
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC
