V200SPOT
PROLIGHTS
discontinued

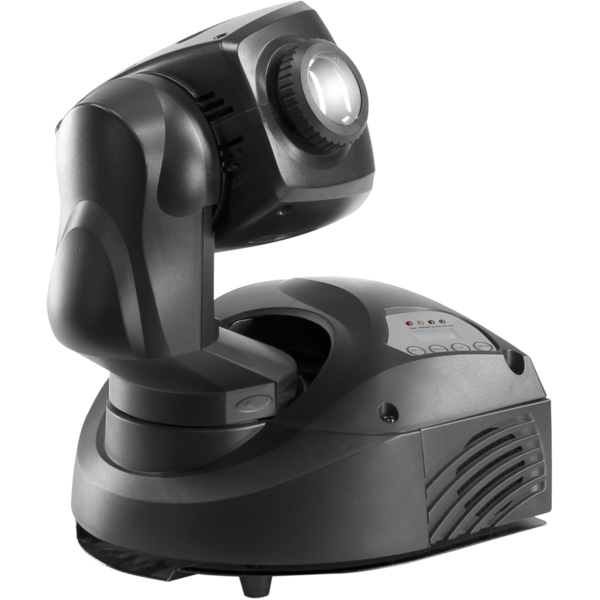

V200SPOT

ORDER CODE: V200SPOT

Main features:

    Lamp
    • 150W discharge lamp (cod.8001138PL included)
    • Colour temperature: 6500K
    • Luminous flux: 11,000 lm
    • Average life span: 1000h
    Optics
    • High efficiency optical system
    • High definition anti-reflection lenses with achromatic coating
    • Parabolic glass reflector with dichroic coating
    • Projection angle: 14°
    • Focus: manual focusing lens
    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-10 flash per second
    Colour system
    • Colour wheel with 11 dichroic filters + open (linear-stepless selection)
    • Bidirectional rainbow effect
    • Easy calibration and maintenance by magnetic repositioning
    • Colour change with synchronized blackout
    Effects
    • Rotating gobo wheel: 8 rotating gobos (2 of which dichroic) indexed and interchangeable + open
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheel for replacement
    • Easy show: built-in programs with automatic/sound activated mode enabled by LED control panel or by EC800 remote control (not included)
    Electronics
    • User Interface: 4-digit multi-function LED display to control unit addressing, general settings and fixture life timer
    • 2 DMX available configurations: 8 channels (8 bit) and 13 channels (16 bit) for full flexibility of control
    • Input and output signal through XLR 3p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating.
    Structure and moving body
    • High resistance polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bitPan = 2,10° Pan Fine = 0,008°Tilt = 1,05° Tilt Fine = 0,004°
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    Power supply
    • Electromagnetic ballast: 200-240V 50/60Hz universal power supply
    Weight and dimensions
    • Weight: 10,5 Kgs
    • Dimensions (WxHxD): 266x375x270 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

8001138PL
8001138PL
(Included)
150W 95V discharge lamp, wire connection

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualV200spot_USER_MANUAL_ITEN.pdf(27/10/2009)965KB
