AIR04X
Share me

Immagine Principale
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
  • AIR04X
    Code Avail.
    AIR04XBK
    AIR04XWH

    AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

    Features:
    Vertically or horizontally mounted with the brackets /supplied supports
    Tested to withstand snow, rain and salt
    Suitable for use on the boat

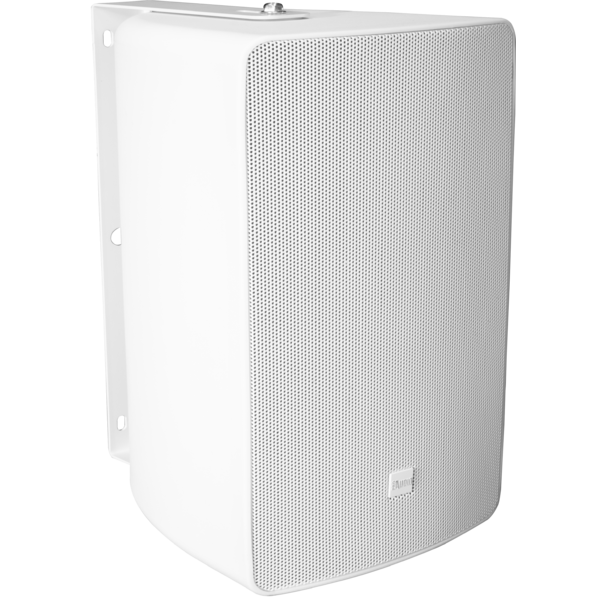

    The AIR04X 2-way full-range loudspeaker with IP46 waterproof protection is ideal for small outdoor or indoor installations and can be used in combination with DAD ARK208 sub.
    The polypropylene cabinet provides complete protection against ultraviolet rays.
    The grid is made of perforated aluminium, internally lined with waterproof fabric and open cell polyurethane foam.
    The PROAUDIO logo can be rotated for vertical or horizontal installation.

    LOUDSPEAKER
    • System type:
      passive 2 way
    COMPONENTS
    • Low frequency:
      4
      ''
      woofer/1''v.c.
    • High frequency:
      1
      ''
      dome tweeter/0.8''v.c.
    FEATURES
    • AES/program power:
      50/100
      W
    • SPL max:
      109
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      88
      dB
    • Impedance:
      16 Ohm
    • SPL cont/peak:
      103/109
      dB
    • Frequency response:
      75-20.000
      Hz
    • Coverage angle HxV:
      120x90
      °
    • Cross over frequency:
      3500
      Hz
    • Protection:
      H.F. signal compression
    • Suggest HPF range:
      160/180
      Hz
    • Recommended amplifier up to:
      100
      W
    INPUT/OUTPUT CONNECTORS
    • Screw terminal IN/OUT:
      phoenix
    CABINET CONSTRUCTION
    • Cabinet material:
      polypropilene
    • Sospension system:
      wall brackets (included)
    PHYSICAL
    • IP rating:
      46
      for outdoor installations
    • Dimensions (WxHxD):
      141x230x170
      mm
    • Weight:
      2.6
      kg
    Product Code
    Accessory Code
    Description
    AIR04X (optional)
    AIR04T (optional)
    AIR06T (optional)
    AIR06X (optional)
    Wall-mount ABS support for AIR04/AIR06 acoustic speakers.
