AIR12TCOAX discontinued
ORDER CODE: AIR12TCOAX
Share me

IP56

Immagine Principale
  • AIR12TCOAX
  • AIR12TCOAX
  • AIR12TCOAX
  • AIR12TCOAX
  • AIR12TCOAX
  • AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

    Features:
    Tested to withstand snow, rain and salt.
    Suitable for use on the boat.

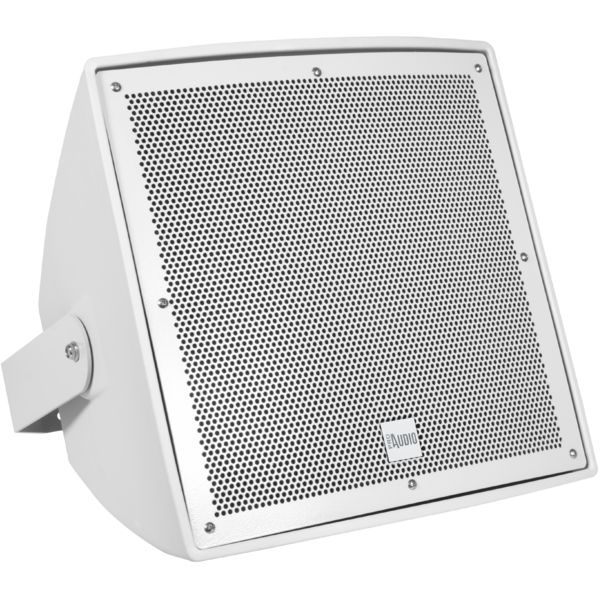

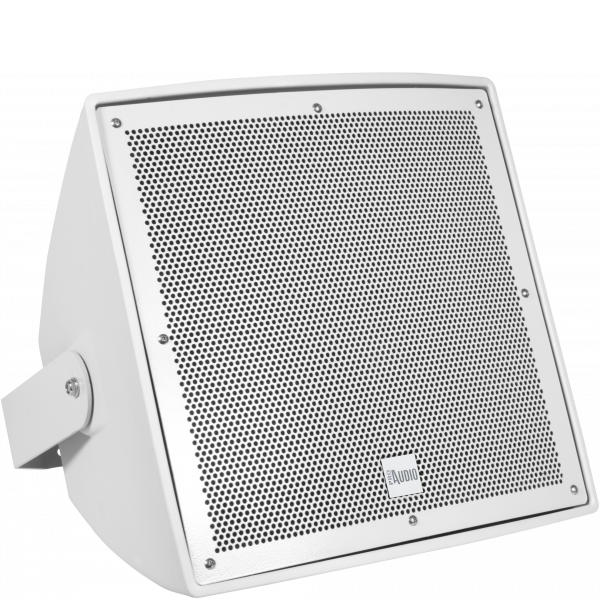

    The AIR12TCOAX 2-way full-range loudspeaker with IP56 waterproof protection is ideal for long distances in professional installations both indoors and outdoors.
    The coaxial transducer allows uniform coverage and high intelligibility.
    Equipped with a transformer for use in 100V systems.
    The polypropylene cabinet guarantees complete protection against ultraviolet rays.

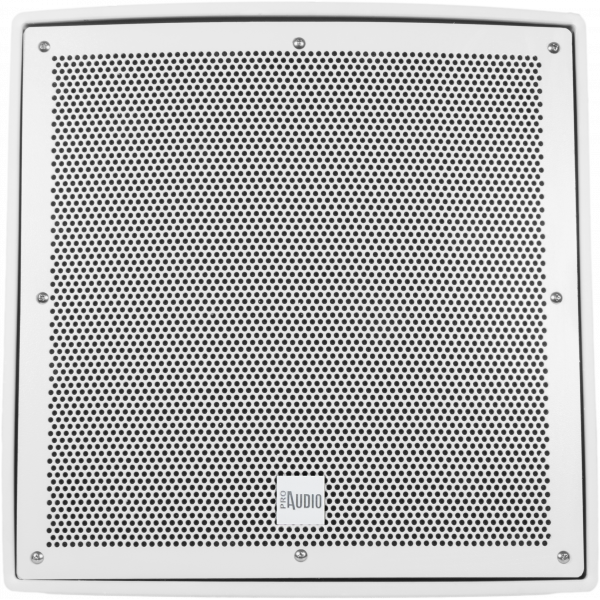

    The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.

    LOUDSPEAKER
    • System type:
      passive 2 way coaxial design
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/3''v.c.
    • High frequency:
      1
      ''
      driver/1.7''v.c.
    FEATURES
    • AES/program power:
      300/600
      W
    • Input 100 V:
      75/150/300
      W
    • SPL max:
      128
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      98
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      122/128
      dB
      @1m (free field)
    • Frequency response:
      55-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      80x80
      °
    • Cross over frequency:
      2200
      Hz
    • Protection:
      H.F. signal compression
    • Suggest HPF range:
      120/160
      Hz
    • Recommended amplifier up to:
      600
      W
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      screw terminal IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      polypropilene
    • Sospension system:

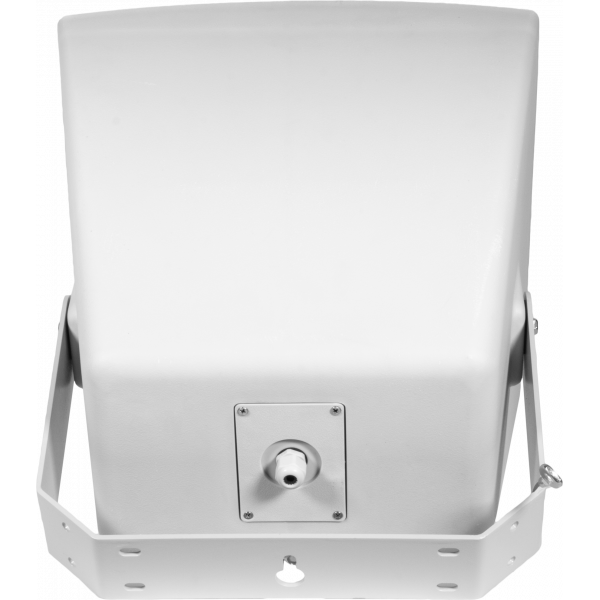

      wall brackets (included)
    PHYSICAL
    • IP rating:
      56
      for outdoor installations

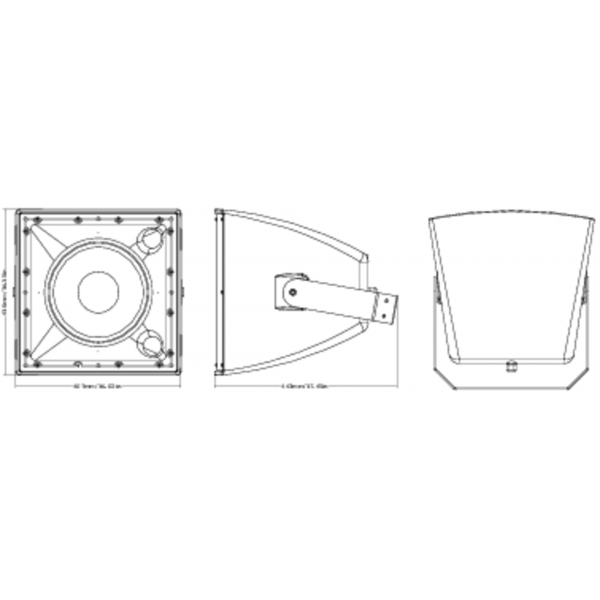

    • Dimensions (WxHxD):
      407x410x443
      mm
    • Weight:
      18
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
