ALH34
Share me

Immagine Principale
  • ALH34
  • ALH34
  • ALH34
  • ALH34
  • ALH34
    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ALH34021 50x3 20x3 21 29 29 2,5 0,177
    ALH34050 50x3 20x3 50 29 29 3,50 0,042
    ALH34100 50x3 20x3 100 29 29 5,60 0,084
    ALH34150 50x3 20x3 150 29 29 8,30 0,126
    ALH34200 50x3 20x3 200 29 29 10,60 0,168
    ALH34250 50x3 20x3 250 29 29 12,80 0,210
    ALH34300 50x3 20x3 300 29 29 14,20 0,252
    ALH34350 50x3 20x3 350 29 29 17,50 0,294
    ALH34400 50x3 20x3 400 29 29 18,60 0,336
    ALH34450 50x3 20x3 450 29 29 20,90 0,378
    ALH34500 50x3 20x3 500 29 29 23,0 0,421

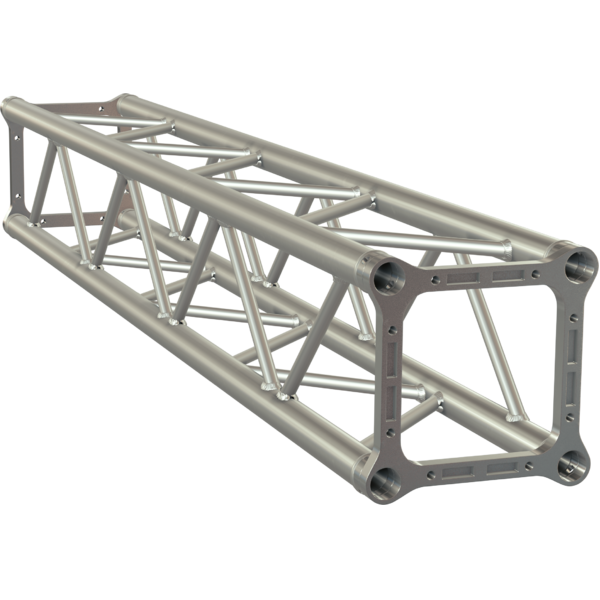

    Square section aluminium truss with 29 cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
    Diagonal: extruded tubes, Ø 20x2 mm 6082 T6
    Plate: cast aluminium plate
    Fast connection kit ALFCQ5 included

    Product Code
    Accessory Code
    Description
    ALH34 (optional)
    6 way DADO module, ALH34 series compatible, 2x ALFCQ5K8 included
    ALH34 (optional)
    2-way L corner for ALH34 Series, extrude tube 50x3mm, 2x ALFCQ5 included
    ALH34 (optional)
    3-way L corner for ALH34 Series, extrude tube 50x3mm, 2x ALFCQ5 included
    ALH34 (optional)
    3-way T joint for ALH34 Series, extrude tube 50x3mm, 2x ALFCQ5 included
    ALH34 (optional)
    4-way T joint for ALH34 Series, extrude tube 50x3mm, 2x ALFCQ5 included
    ALH34 (optional)
    4-way X joint for ALH34 Series, extrude tube 50x3mm, 2x ALFCQ5 included
