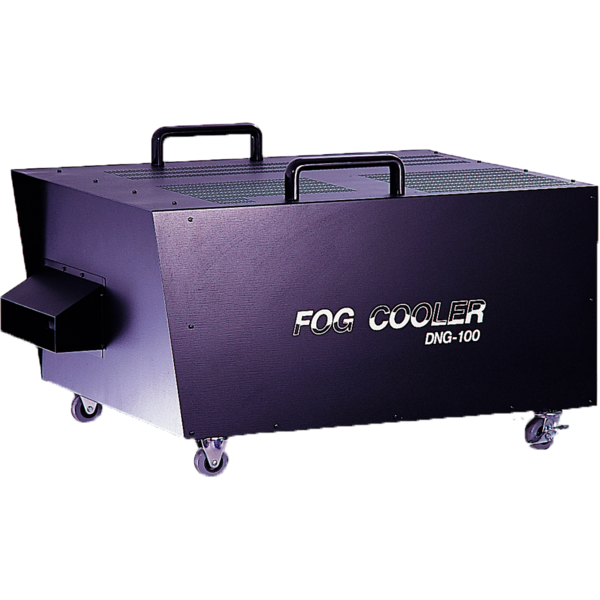

DNG-100 LOW FOG MACHINE
ORDER CODE: ANTDNG100E
Share me

Immagine Principale
  • ANTDNG100E
  • ANTDNG100E
  • ANTDNG100E
  • The DNG-100 converts normal fog from any fog machine into a floor-hugging cloud of dense, white fog that’s almost virtually similar to the dry ice effect. This is achieved by cooling the temperature of the fog to the point where it falls to the ground. The DNG-100 is easy to operate as there are no external controls on the machine. Simply plug the unit IN and place the fog conducting hose from the output of any fog machine to the input of the DNG-100. The unit is fully operational upon being plugged IN. The volume of fog produced is controlled by the fog machine that the DNG-100 is attached to.



    Features:
    Power: AC 220-240V 50/60 Hz
    Power consumption: 600W
    Refrigerant: R-404A, 1.46LB
    Rated current: 3.2A
    Start current: 21A
    Accessories included: FT-10, FTA-10, FTA-11, FTA-12
    Optional accessories: FTA-1/2A/3
    Suggested models: X-515PRO, Z-1200II, Z-1500II,Z-3000II, M-5, M-10, W-515, W-530
    Weight: 72 kg
    Dimensions (WxHxD): 607x347x750 mm
    Liquid used: Antari FLR-5 liquid

    ITEMS REF.
    Accessory Code
    Description
    ANTDNG100E (optional)
    ANTW530DE (optional)
    ANTICE101E (optional)
    ANTIP1000E (optional)
    ANTWIFI800E (optional)
    ANTW508E (optional)
    ANTW510E (optional)
    ANTW515DE (optional)
    H100F (optional)
    H080F (optional)
    GH080F (optional)
    H300F (optional)
    Low-Density FOG/FAZE machine fluid, water-based, 5L tank
